- GPS platform:tracking the radio user
- SIM card:Normal
- Advantages:GPS Satellite Plsi,Flashight,TOT
- Feature:Selective Calls,Group Calls and All Calls
- (U)SIM/SIMU:Standard SIM card,interface 3V SIM card,and 1.8V SIM card
- SOS:Optional
- Input intelligent charger:12V/24V
- Operating Voltage:3.3V~4.2V (Standard 3.8V)
- SOS function:panic button to active the global alarm
- Weight:299g
- Type:Handheld
- Place of Origin:CN;FUJ
- Certification:FCC
- Certification:ce
- Certification:IC
- Brand Name:TESUNHO
- Model Number:TH-682
- Dimensions:40(H)*60(W)*135(L)mm
- Frequency Range:LTE/WCDMA/GSM
- Storage Channel:groups
- Talk Range:Unlimited(Global)
Main Features:

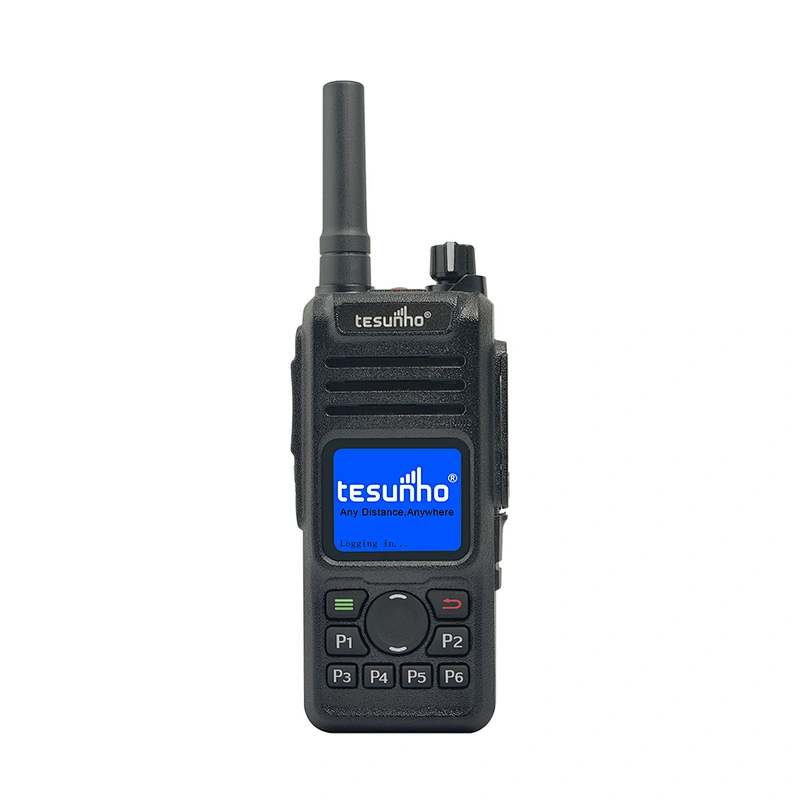

TH-682 is a powerful 2way radio, popular in professional applications. Real-time positioning to realize timely reinforcement/rescue for any emergency situations.
1. SOS & APRS(Emergency button)
2. GPS Function
3. Display the users/calling/last caller information
4. Can receive dispatcher message
5. Support 4G/3G/2G network
6. Support Group Call, P2P Call, Quick Call, Emergency Call
7. Large Capacity (3.7V 5000mAh)
8. Quick charger – 3 hours fully charged
Application:
Security, Airport, Railway, Police,Rescue
Commercial use Construction, Industry, Army, Government, Outdoor adventure, Logistics,Taxi,Truck,Camping, Travelling, Big shopping mall, Big Hotel, Outdoor Events, etc.
Main Function : GPS APRS ,SOS ,BT,NFC/RFID
Q:how to change Sound Quality to HQ on TH-682?
A: Go to setting -->Sound Quality -->Choose HQ Mod
Specifications:
Type | Parameter Item | Specification |
Mechanical Properties | Model No. | TH-682 |
Dimension | 40(H)×60(W)×135(L)mm | |
Weight | 299g | |
Working Temperature | -30℃ to + 75℃ | |
Basic Parameter | Working Voltage | 3.3V~4.2V (Standard 3.8V) |
Working Current | 500mA@LTE 300mA@WCDMA 220mA@GSM | |
Peak Current | 2A | |
RF Parameter | LTE FDD (E) | Band1: 2100MHz Band3: 1800MHz Band7: 2600MHz Band8: 900MHz Band20: 800MHz |
WCDMA | Band1 : 2100MHz OR Band8 : 900MHz | |
GSM | GSM/GPRS : 900/1800 MHz | |
Maximum Output power | LTE:23 ± 2.7dBm(Power Class 3) WCDMA:24 + 1/-3dBm(Power Class 3) | |
Receiving Sensitivity | LTE FDD≤ -100dBm; WCDMA900: ≤ -108dBm; WCDMA2100: ≤ -109dBm; | |
GPS | GPS | GPS Positioning,1.57542GHz |
Sensitivity | Catch -144dBm, Track -159dBm | |
Technology Standard | Data Speed Rate | LTE FDD-Uplink 50 Mbps / Downlink 150 Mbps WCDMA-Uplink 5.76 Mbps / Downlink 42 Mbps |
Protocol | Support embedded TCP&UDP Protocols; Support Protocols PAP and CHAP used for PPP conncetion; 3GPP TS 27.005,27.007 |
More parameters, please contact with us!
Certifications:

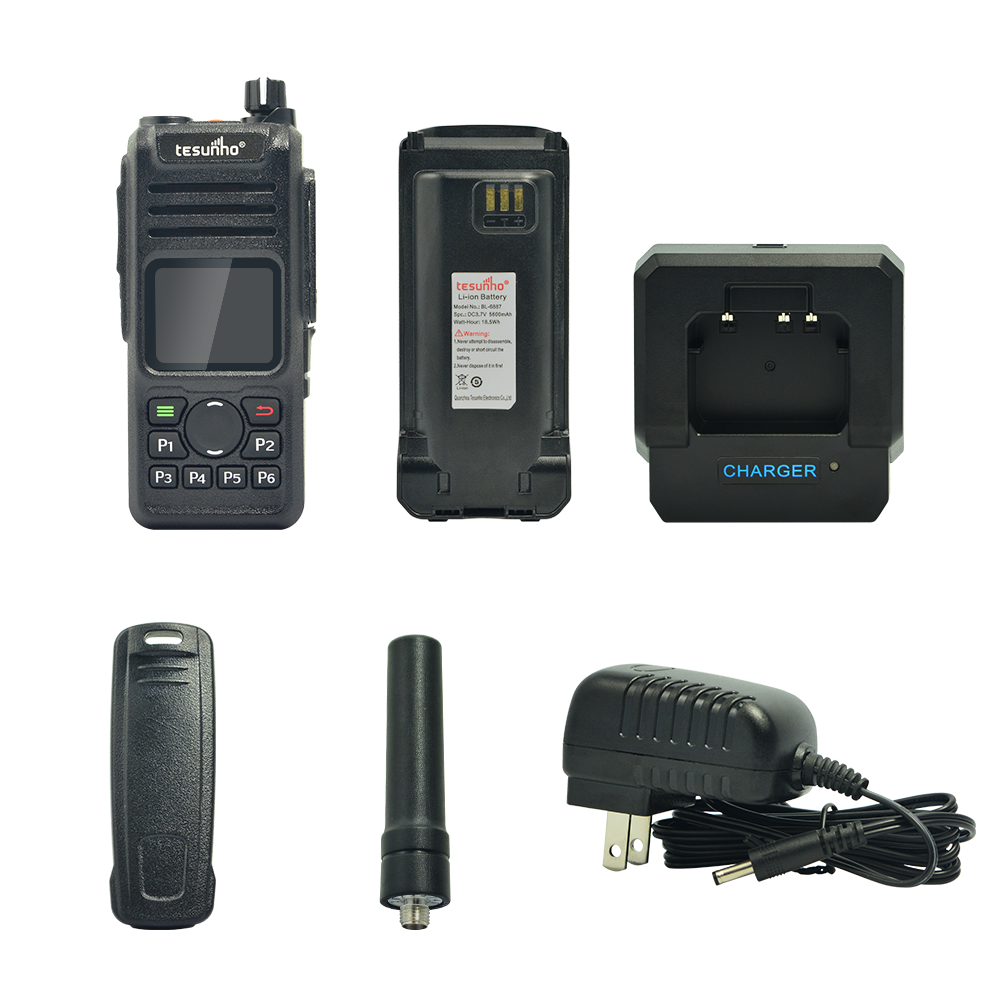

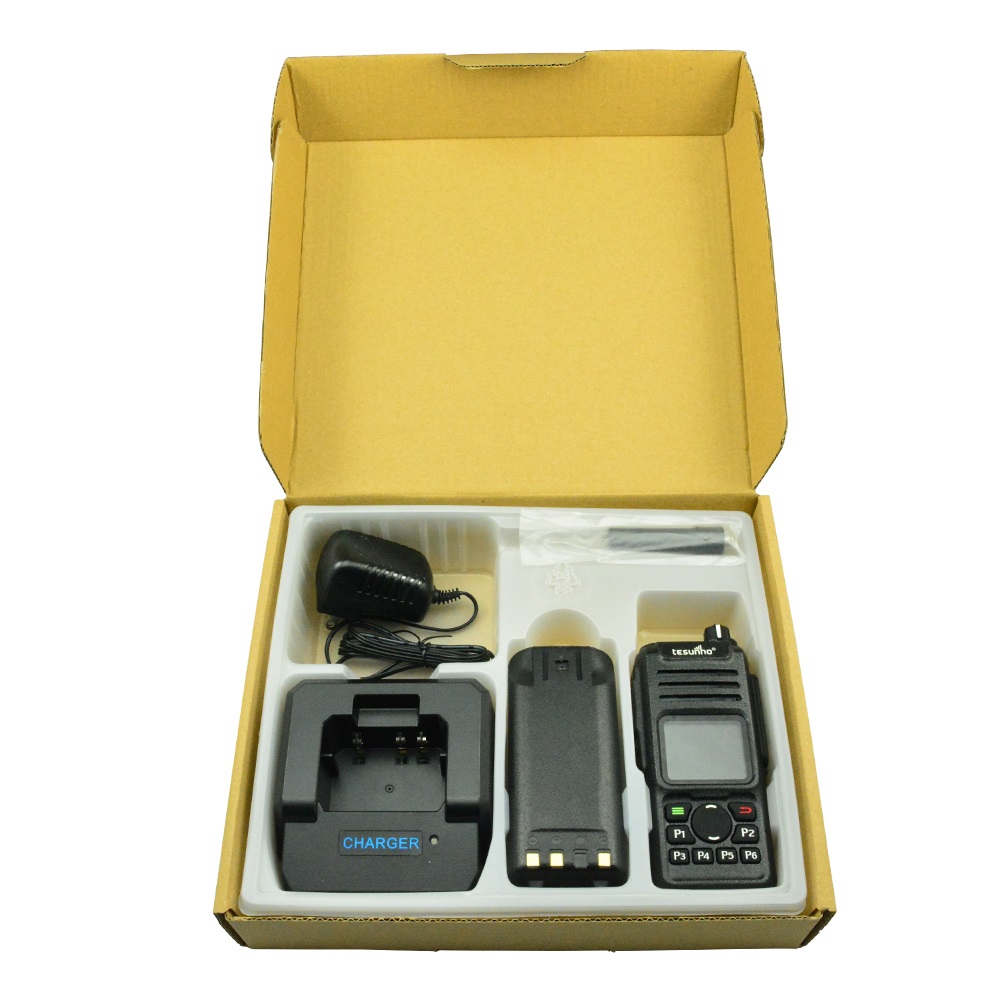

Standard Package for one piece:
Standard Packing :
Packing Details:
DIMENSION & WEIGHT | ||||||
Item | One Unit | Standard Carton | Delivery Method | |||
Size(cm) | Gross Weight(kg) | Quantity(pcs) | Size(cm) | Gross Weight(kg) | ||
TH682 | 25.5*21.5*5.5 | 0.64 | 20 | 58*46*30 | 13.9 | DHL/FedEx/TNT/ EMS/By Air/By sea |
Lead Time:
Item | Quantity(pcs) | Production Lead Time |
Walkie talkie | 1-50 | 1-3 days |
50-200 | 2-5 days | |
200-500 | 2-10 days | |
500-1000 | 5-21 days |
Attention please: The date is given based on the normal production ability of Tesunho Electronics. Kindly contact us for more accurate data if you have special needs!
Payment Method:
Trade Assurance / Bank transfer / Western Union / MoneyGram / Paypal
Tesunho is aim to be the leading industrial walkie talkie solution supplier. So our service consists of 3 important parts:
1. Basic Warranty:
√ Replacement: Free new walkie talkie if it can not work at once it arrives.
√ Free maintenance and parts (without artificial faulty ) :
Item | Warranty |
Main Unit | 365 days |
Battery and Charger | 90 days |
Antenna and other parts | None |
2. Brand OEM service:
√ partly OEM service
√ complete OEM service
3. Technical ODM service:
we have abundant of experience on industrial needs customization
√ Rail way station communication device
√ Hotel inner wifi communication structure
√ Security Guard Patrol system with walkie talkie
√ Irrigation Patrol system
√ Intelligent Parking system
√ Logistics Management system
News:
Why Us:
Click Picture to Learn More. Any of your inquiry is welcomed!
FAQ:
1.Are you a trade company or a manufacturer?
A: We are an R&D based creative and productive manufacturer specialized in CE FCC approved walkie talkie.
2.How POC Radio work?
A: It needed poc radio, sim card and real ptt account, contact us for more explaining
3.How to program radio?
A: It need real ptt account, real ptt account password, URL, Apn. Pls feel free to contact us, we will offer you programming instruction and guide one by one step.
4.What is your MOQ?
A: 2 piece for normal stock; different quantities for OEM or ODM,which is determined by different task workload. Kindly contact us for more information.
5.What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
A: You can get free sample by means of returning sample fund after regular order.
