- Feature:Selective Calls/Group Calls /All Calls
- Advantages:GPS Satellite Plsi,Flashight,TOT
- Weight:246g
- Working Temperature:-30*C to +75*C
- Working Voltage:6.5V~8.4V(Standard 7.4V)
- Working Current:250mA @ UTMS 2100/900 220mA @ GSM 900
- Peak Current:0.8A
- Battery Capacity:4600mAh
- TOT( Time out Timer):Yes
- GPS Positioning:1.57542GH
- Certification:FCC
- Certification:ce
- Type:Handheld
- Place of Origin:CN;FUJ
- Brand Name:TESUNHO
- Model Number:TH-282
- Dimensions:110mm*60mm*42mm
- Frequency Range:WCDMA/GSM
- Storage Channel:Group
- Talk Range:All Over The World

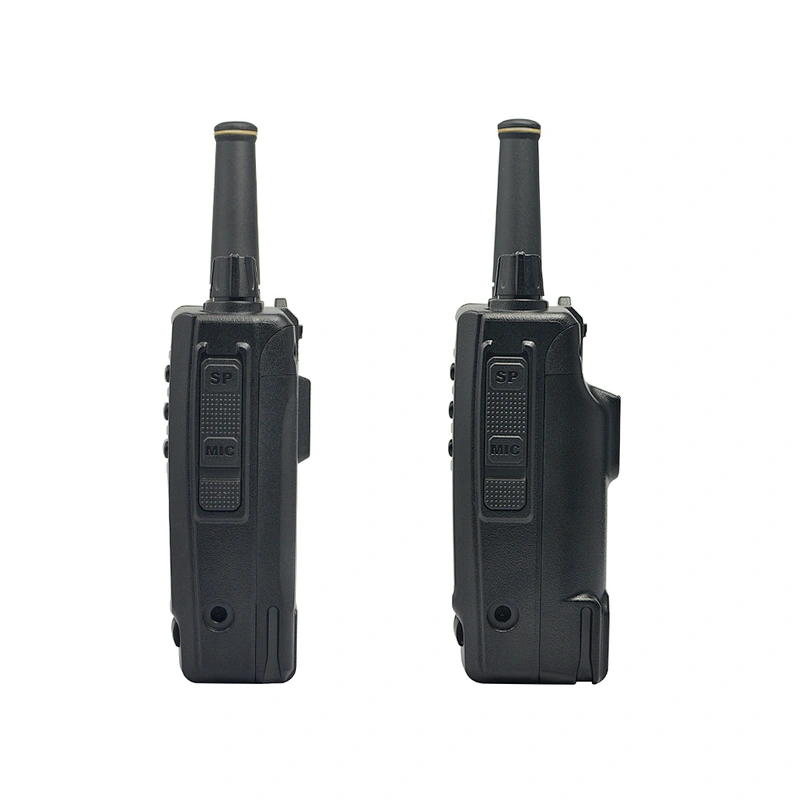

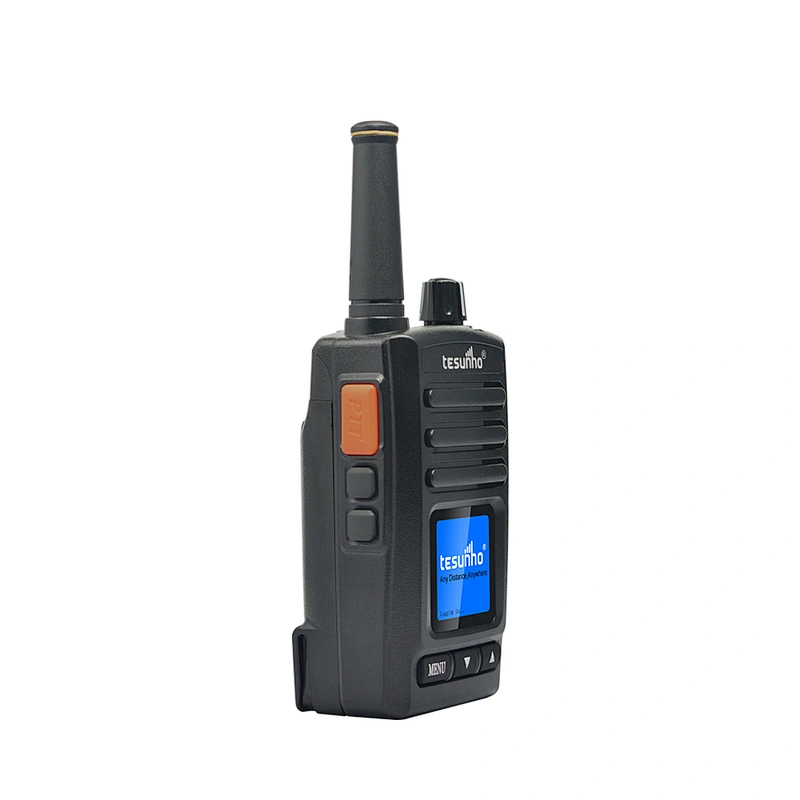

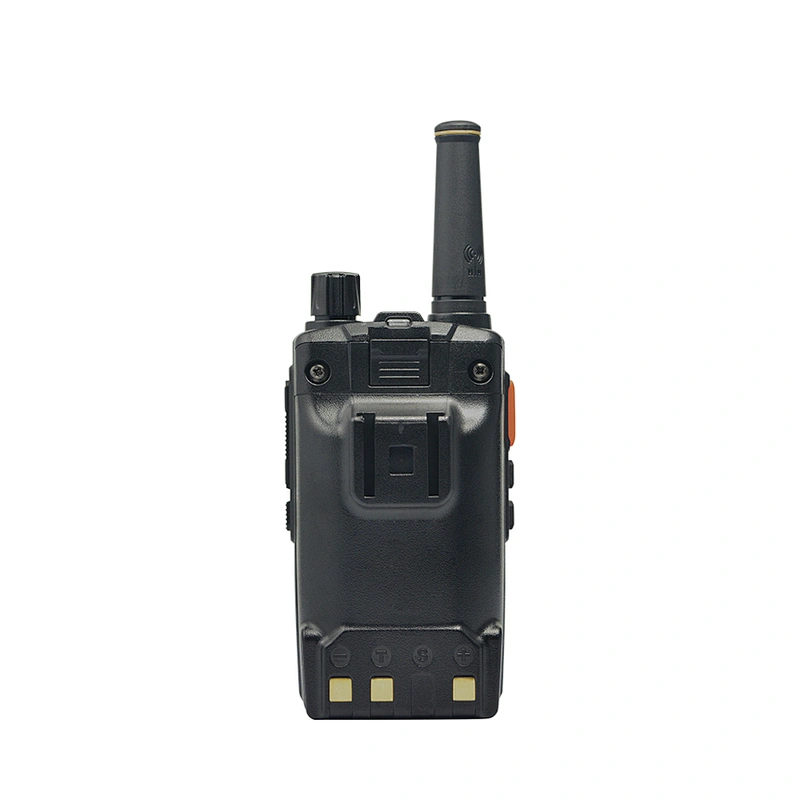

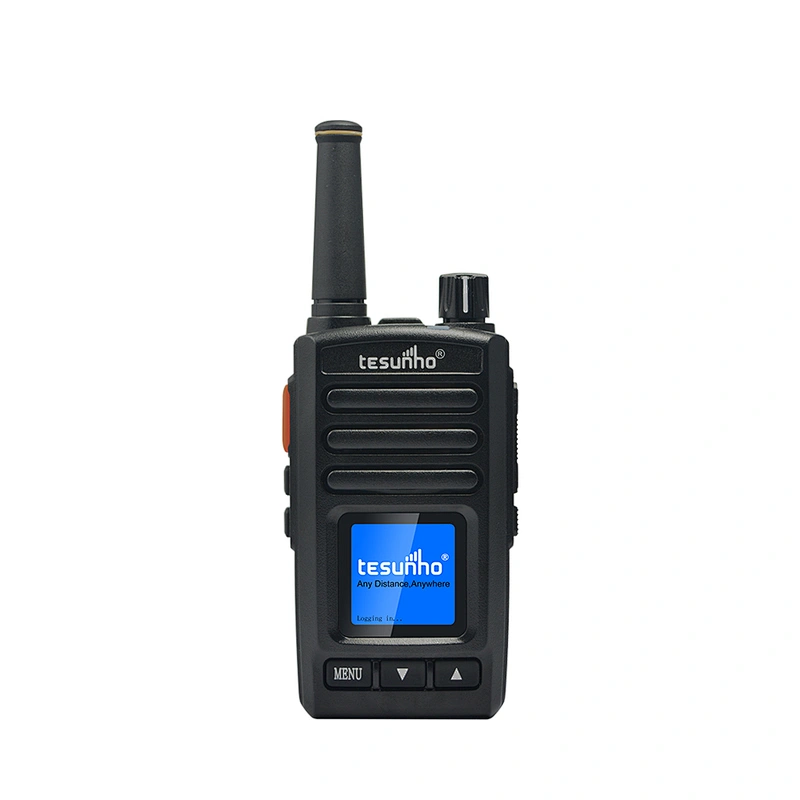

Tesunho TH-282 Global Talking IP Over Radio 4G Public Network

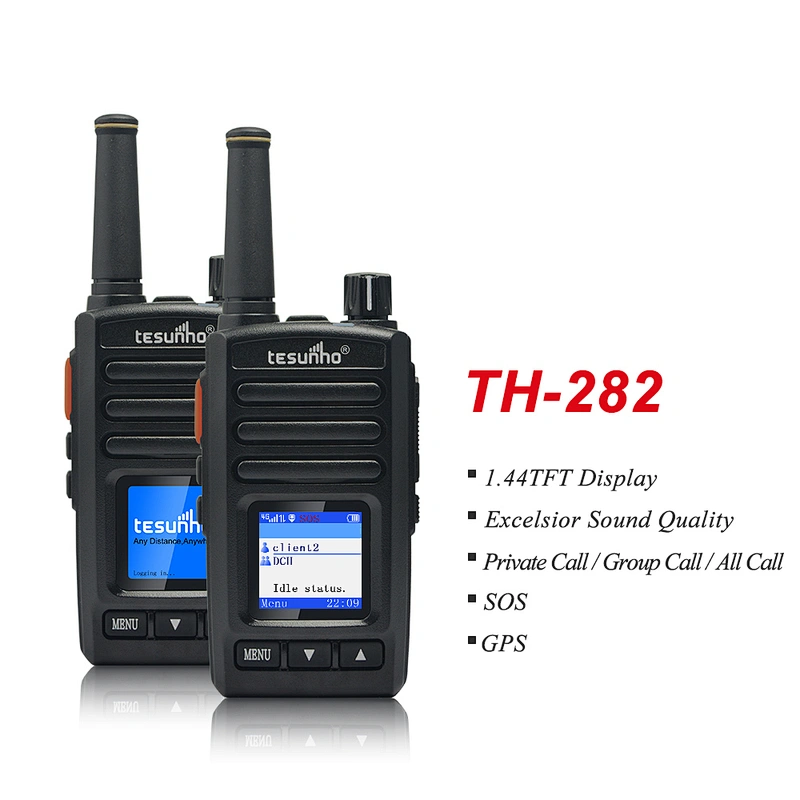

Main Features :
1. It has small size, easy for users to carry
2. It has LCD display with listing menu, simple and clear for start-learners
3. It can receive dispatcher message
4. SOS – Emergency button is critical feature for two way radio
5. GPS optional: With the help of dispatcher, user can check other partner's radio location
6. Last call function, allow you to repeat call if you missed it
7. Built-in charger and desk charger for options

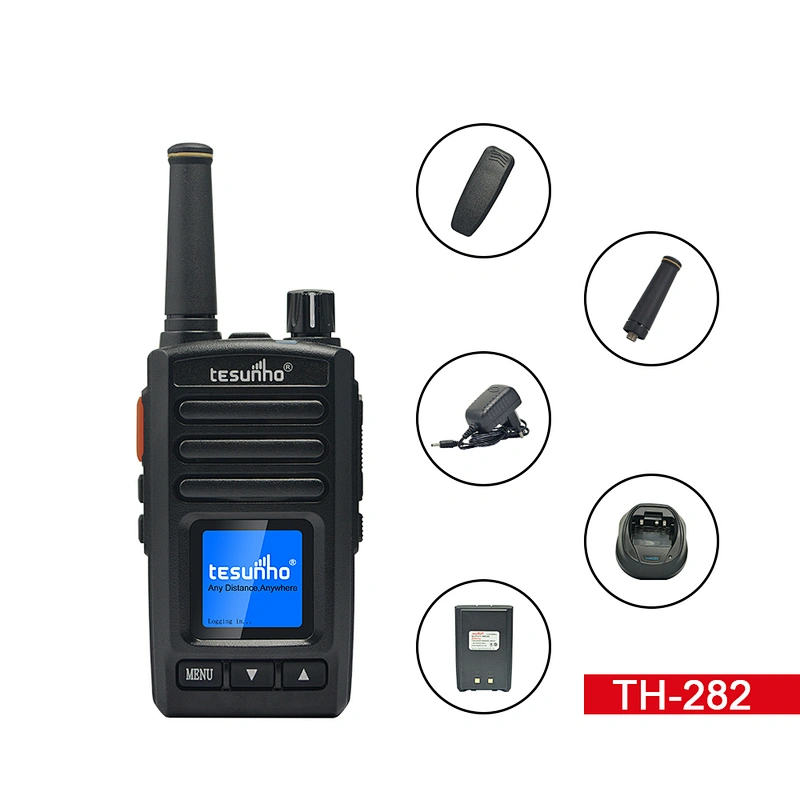

8. Special accessory like 6 way multi-unit charger available
Application :
Unique for: Camping, Travelling, Commercial use, Shopping mall,Big Hotel, Outdoor Events.
Popular for: Security, Construction, Industry, Logistics, Taxi, Truck, Airport, Railway, Army, Government, Rescue, Police, Outdoor adventure, etc.
TH-282 is a mini version PoC radio. Real-time positioning to realize timely reinforcement/rescue for any emergency situations. Second development for the GPS patrol function, to make the radio ensure high reliability status and safety level. It enhance awareness and supply proved documentation about any occurred incident.
Specifications:
Type | Parameter Item | Specification |
Mechanical Properties | Model No. | TH-282 |
Dimension | 40(H)×59(W)×114(L)mm | |
Weight | 300g | |
Working Temperature | -30℃ to + 75℃ | |
Basic Parameter | Working Voltage | 3.3V~4.2V (Standard 3.8V) |
Working Current | 500mA@LTE 200mA@WCDMA 220mA@GSM | |
Peak Current | 2A | |
RF Parameter | LTE FDD | Band1: 2100MHz Band2: 1900MHz Band3: 1800MHz Band4: 1700MHz Band5: 850MHz Band7: 2600MHz Band8: 900MHz Band12: 700MHz Band17: 700MHz Band20: 800MHz |
WCDMA | Band1 : 2100MHz OR Band8 : 900MHz | |
GSM | GSM/GPRS : 900/1800 MHz | |
Maximum Output power | LTE:23 ± 2.7dBm(Power Class 3) WCDMA:24 + 1/-3dBm(Power Class 3) GSM900:33 ± 2dBm(Power Class 4) GSM1800:30 ± 2dBm(Power Class 1) | |
Receiving Sensitivity | LTE FDD≤-100dBm; WCDMA900: ≤-108dBm; WCDMA2100: ≤-109dBm; GSM 900/1800: ≤-106dBm | |
GPS | GPS | GPS Positioning,1.57542GHz |
Sensitivity | Catch -144dBm, Track -159dBm | |
Technology Standard | Data Speed Rate | LTE FDD-Uplink 50 Mbps / Downlink 150 Mbps WCDMA-Uplink 5.76 Mbps / Downlink 42 Mbps EDGE-Uplink 236.8Kbps / Downlink2.8 Mbps GPRS-Uplink85.6Kbps / Downlink85.6 Mbps |
Protocol | Support embedded TCP&UDP Protocols; Support Protocols PAP and CHAP used for PPP conncetion; 3GPP TS 27.005,27.007 |
More parameters, please contact with us!
Certifications:

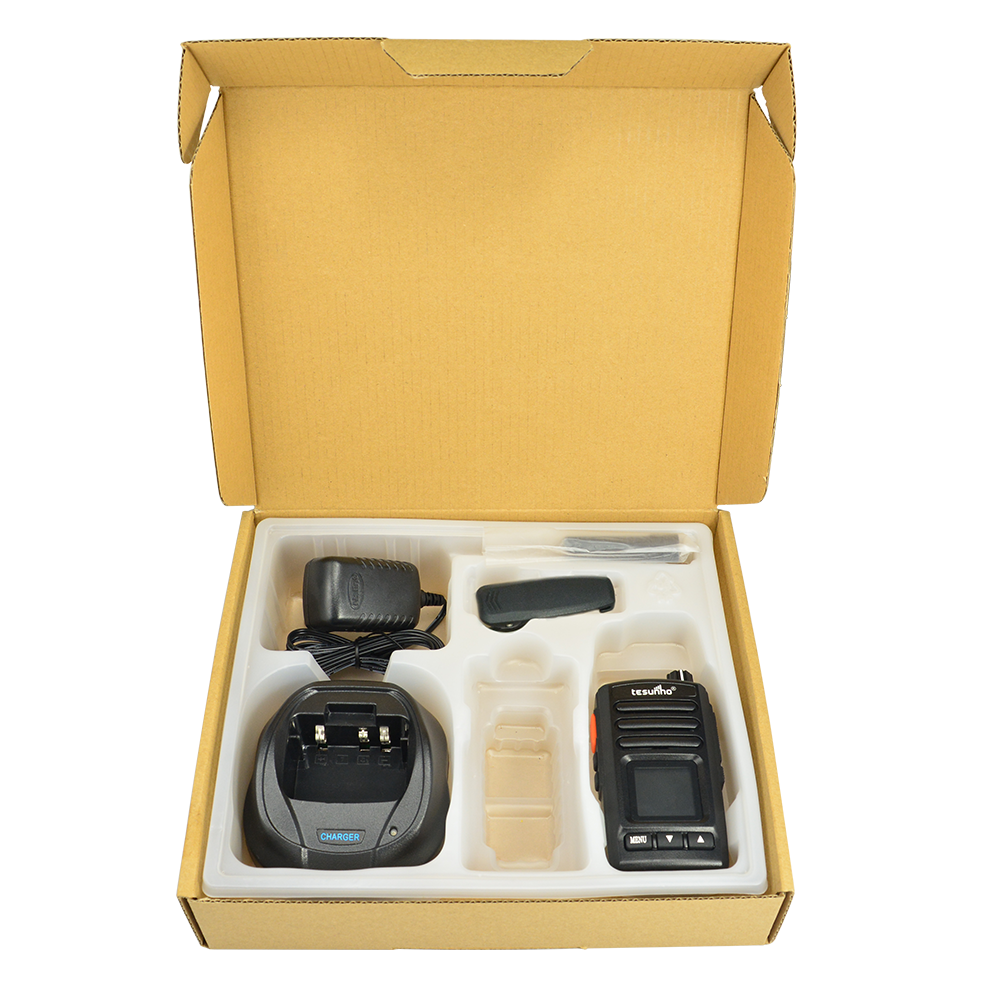

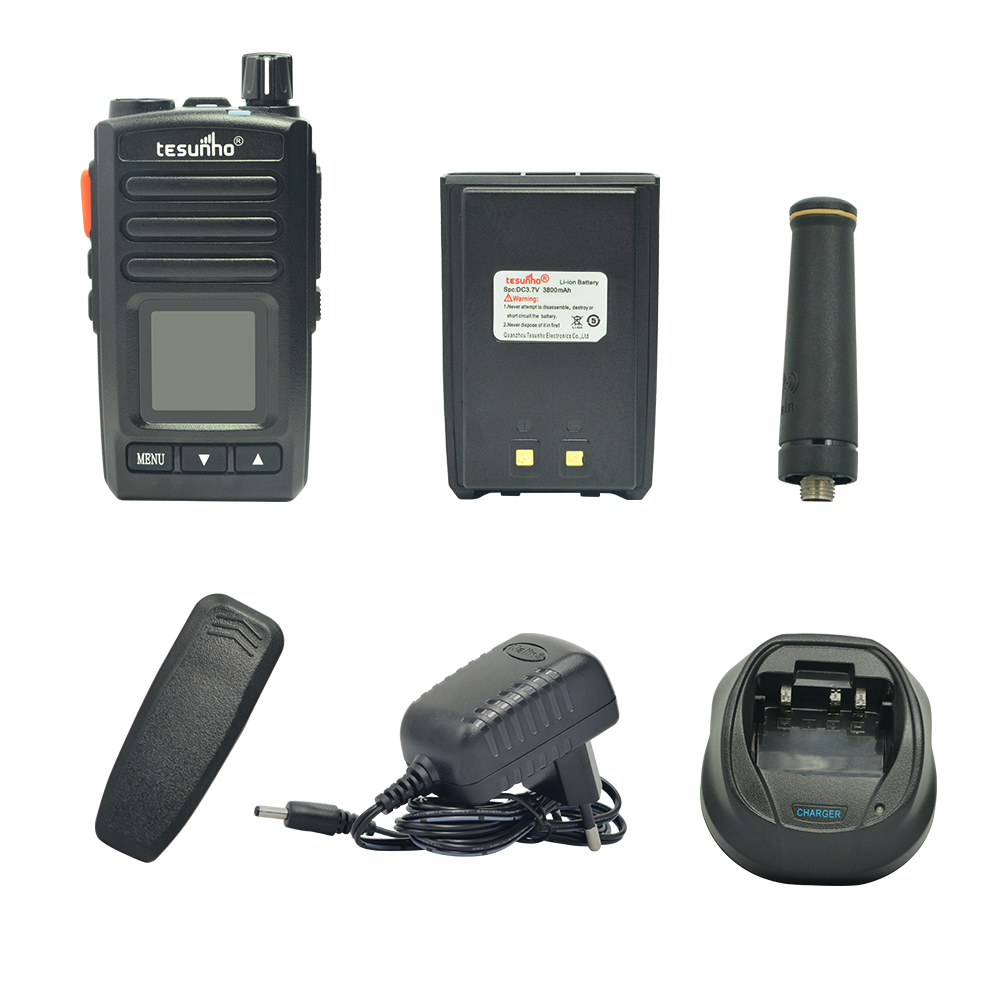

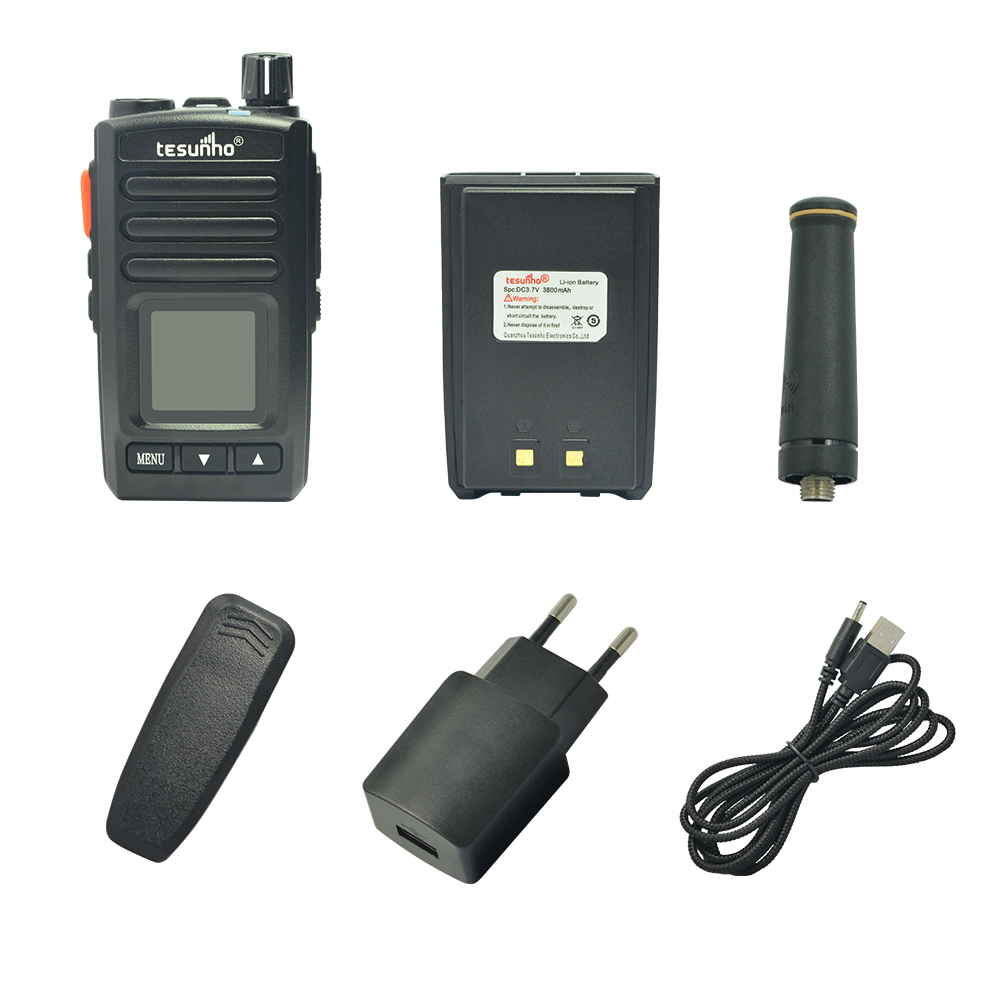

Standard Package for one piece:

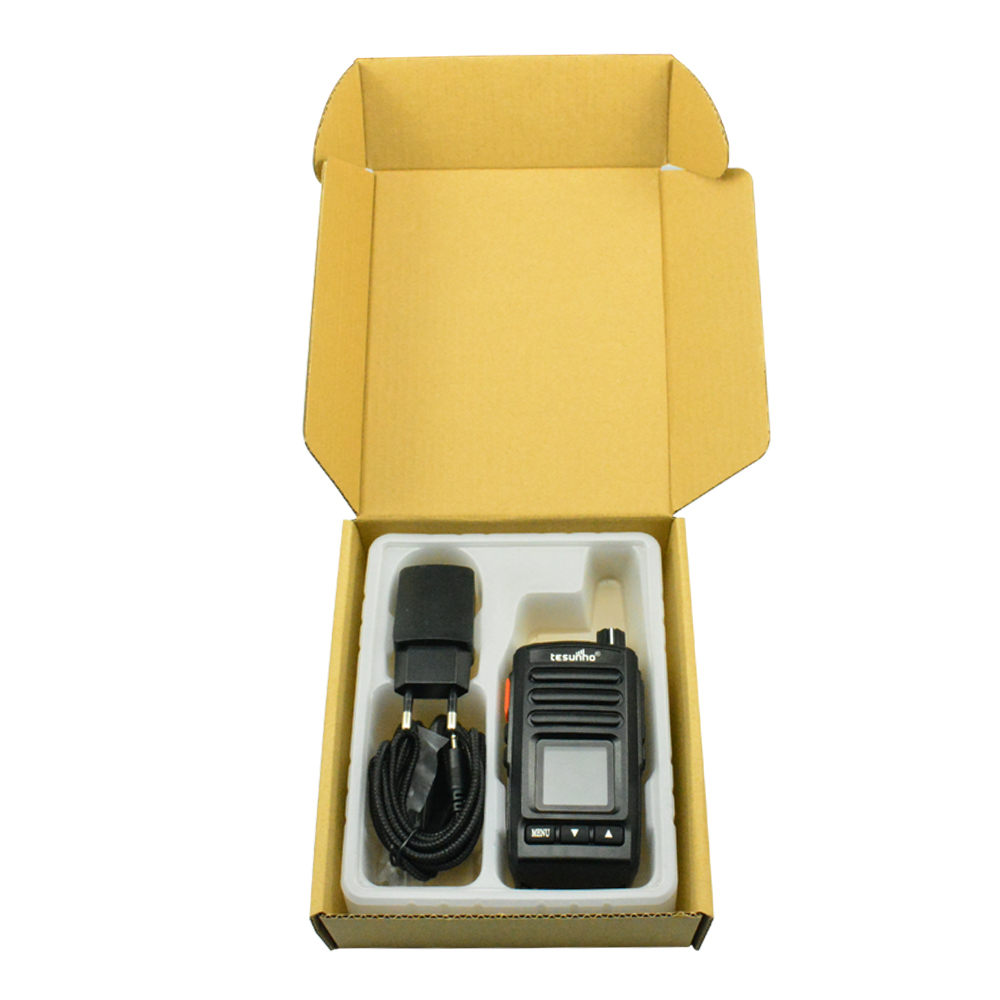

Standard Packing :
Packing Details:
DIMENSION & WEIGHT | ||||||
Item | One Unit | Standard Carton | Delivery Method | |||
Size(cm) | Gross Weight(kg) | Quantity(pcs) | Size(cm) | Gross Weight(kg) | ||
TH-282 | 15.5*17.5*6 | 0.42 | 30 | 49*38*32 | 13.8 | DHL/FedEx/TNT/EMS/By Air/By sea |
21.5*25.5*5.5 | 0.54 | 20 | 37*34*32 | 12.3 | DHL/FedEx/TNT/EMS/By Air/By sea | |
Lead Time:
Item | Quantity(pcs) | Production Lead Time |
Walkie talkie | 1-50 | 1-3 days |
50-200 | 2-5 days | |
200-500 | 2-10 days | |
500-1000 | 5-21 days |
Attention please: The date is given based on the normal production ability of Tesunho Electronics. Kindly contact us for more accurate data if you have special needs!
Payment Method:
Trade Assurance / Bank transfer / Western Union / MoneyGram / Paypal
