- UMTS Band:HSDPA/WCDMA:2100/1900/850(900)MHZ
- SIM card:GSM
- Advantages:GPS Satellite Plsi,Flashight,TOT
- Feature:Selective Calls,Group Calls and All Calls
- (U)SIM/SIMU:Standard SIM card,interface 3V SIM card,and 1.8V SIM card
- Battery Capacity:3.63V 5200mAh
- LCD:1.44 TFT
- Operating Voltage:DC 3.63V
- Operating Temperature:-30*C to +75*C
- Weight:266g
- Certification:FCC
- Certification:ce
- Type:Handheld
- Place of Origin:CN;FUJ
- Brand Name:TESUNHO
- Model Number:TH-388
- Dimensions:40(H)*60(W)*127(L)mm
- Frequency Range:LTE/WCDMA/GSM
- Storage Channel:200
- Talk Range:Unlimited(Global)

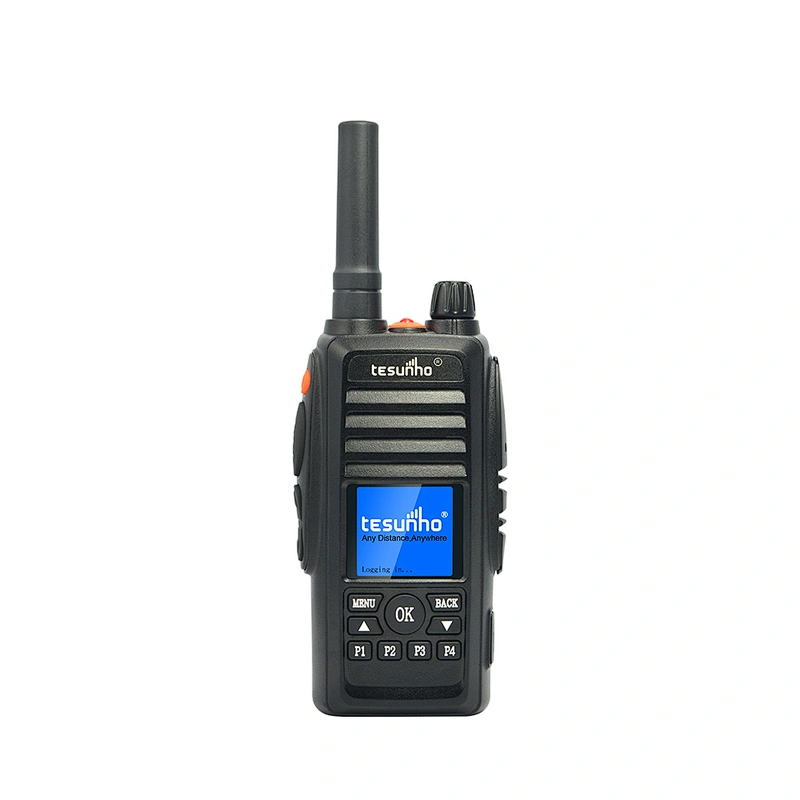

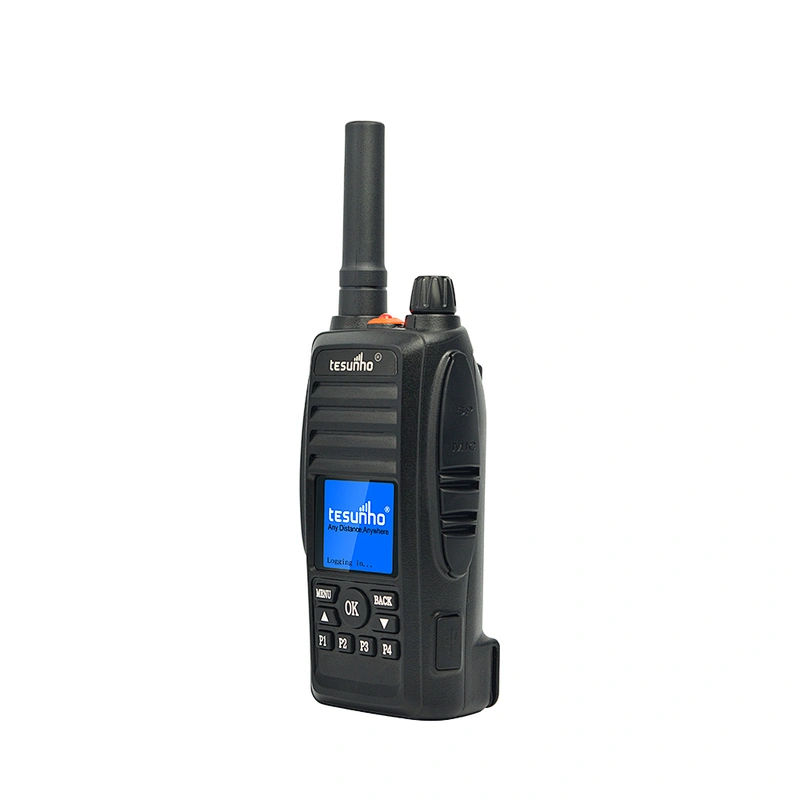

Tesunho TH-388 Talkie Walkie 4G LTE
Main Features:
TH-388 is a powerful 2way radio, popular in professional applications. Real-time positioning to realize timely reinforcement/rescue for any emergency situations.
1. SOS & APRS(Emergency button)
2. GPS Function
3. Display the users/calling/last caller information
4. Can receive dispatcher message
5. Support 4G/3G/2G M network
6. Support Group Call, P2P Call, Quick Call, Emergency Call
7. Large Capacity (3.63V 5200mAh)
8. Quick charger – 3 hours fully charged
Application:
- Unique for:Security Guard, Construction site, Industry Production site, Commercial use like: Hotel, Hospital, University, Commercial Event; Sports
- Popular for:Airport, Railway, Army, Government, Rescue, Police, Outdoor adventure, Logistics, Taxi, Truck, Camping, Travelling, Big shopping mall, Big Hotel, Outdoor Events, etc.
Main Function :

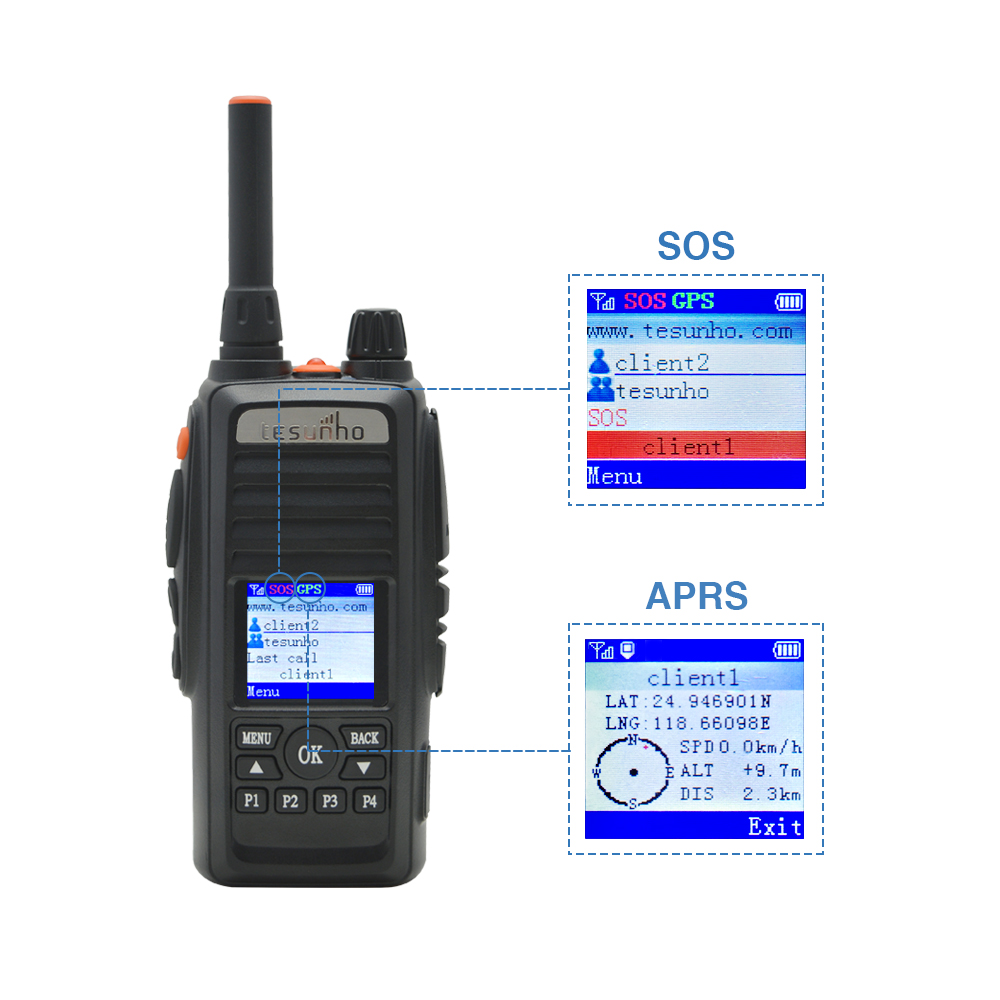

GPS ,APRS, Last Call
Q:how to make quick call on TH-388?
A:A Long press can store the current chosen group or group members in the correspond key; A short press of key can recall the group or the group members stored in the keys directly.
Specifications:
Type | Parameter Item | Specification |
Mechanical Properties | Model No. | TM-388 |
Dimension | 40(H)×60(W)×127(L)mm | |
Weight | 266g | |
Working Temperature | -30℃ to + 75℃ | |
Basic Parameter | Working Voltage | DC 3.63V |
Working Current | 250mA@UTMS 2100/900 220mA@GSM 900 | |
Peak Current | 2A | |
RF Parameter | LTE FDD (Have multiple versions of LTE Bands for different countries) | Band1: 2100MHz Band3: 1800MHz Band7: 2600MHz Band8: 900MHz Band20: 800MHz |
WCDMA | Band1 : 2100MHz Band2 : 1900MHz OR Band8: 900MHz Band5: 850MHz | |
GSM | GSM/GPRS : 900/1800 MHz OR | |
Maximum Output power | WCMDA 900/2100MHz : Power Class 3 (+ 24 dBm + 2.5dBm / -1.5 dBm); GSM/GPRS 850/900 MHz : Power Class 4 (+ 33 dBm + 2.5dBm / -0.5 dBm); GSM/GPRS 1800/1900 MHz : Power Class 1 (+ 30 dBm + 2.5dBm / -0.5 dBm); | |
Receiving Sensitivity | WCDMA900: ≤ -108dBm; WCDMA2100: ≤ -109dBm; GSM 850/900/1800/1900 : ≤ -106dBm | |
GPS | GPS | GPS Positioning,1.57542GHz |
Sensitivity | Catch -144dBm, Track -159dBm | |
Technology Standard | Data Speed Rate | GSM CS : UL 9.6 Kbps / DL 9.6 Kbps GPRS: Multi-slot class 10 EDGE: Multi-slot class 12 WCDMA CS : UL 64 Kbps / DL 64 Kbps WCDMA PS : UL 384 Kbps / DL 384 Kbps |
Protocol | HSDPA / WCDMA / EDGE / GPRS / GSM |
- More parameters, please contact with us!
Certifications:

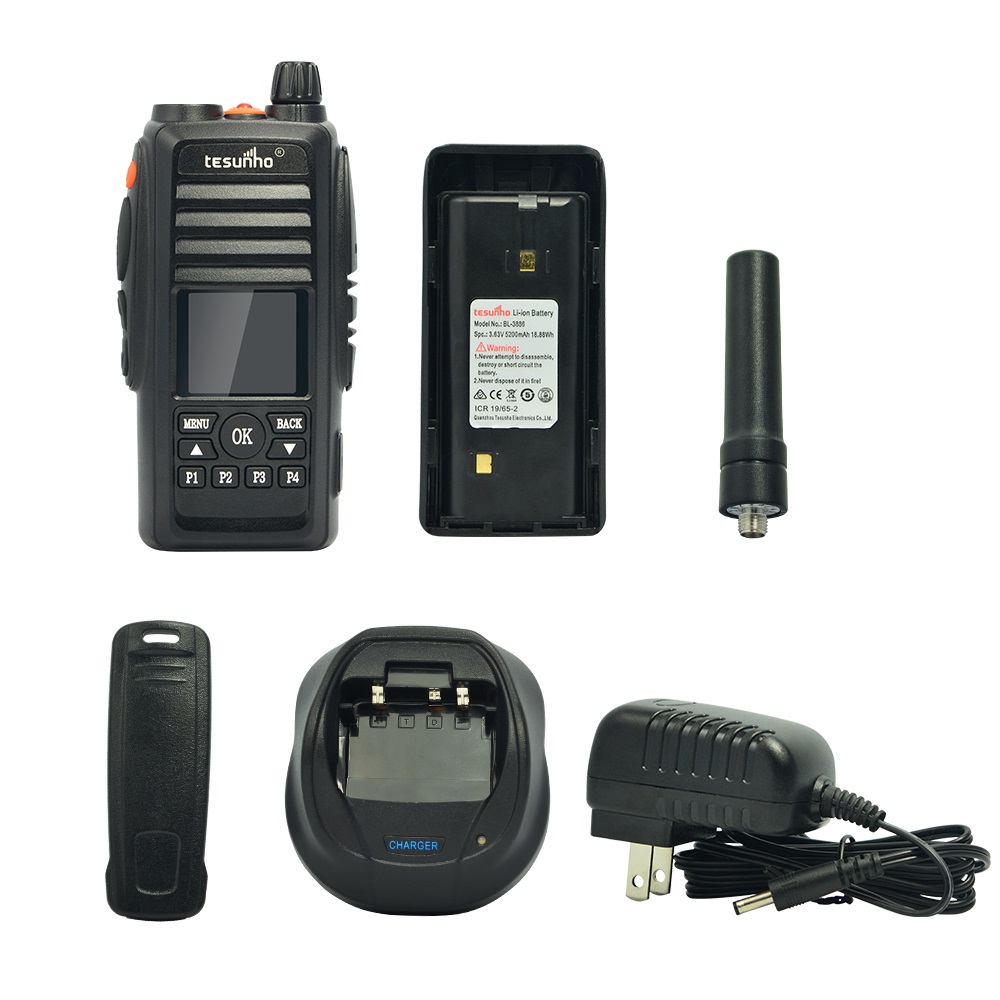

Standard Package For One Piece:

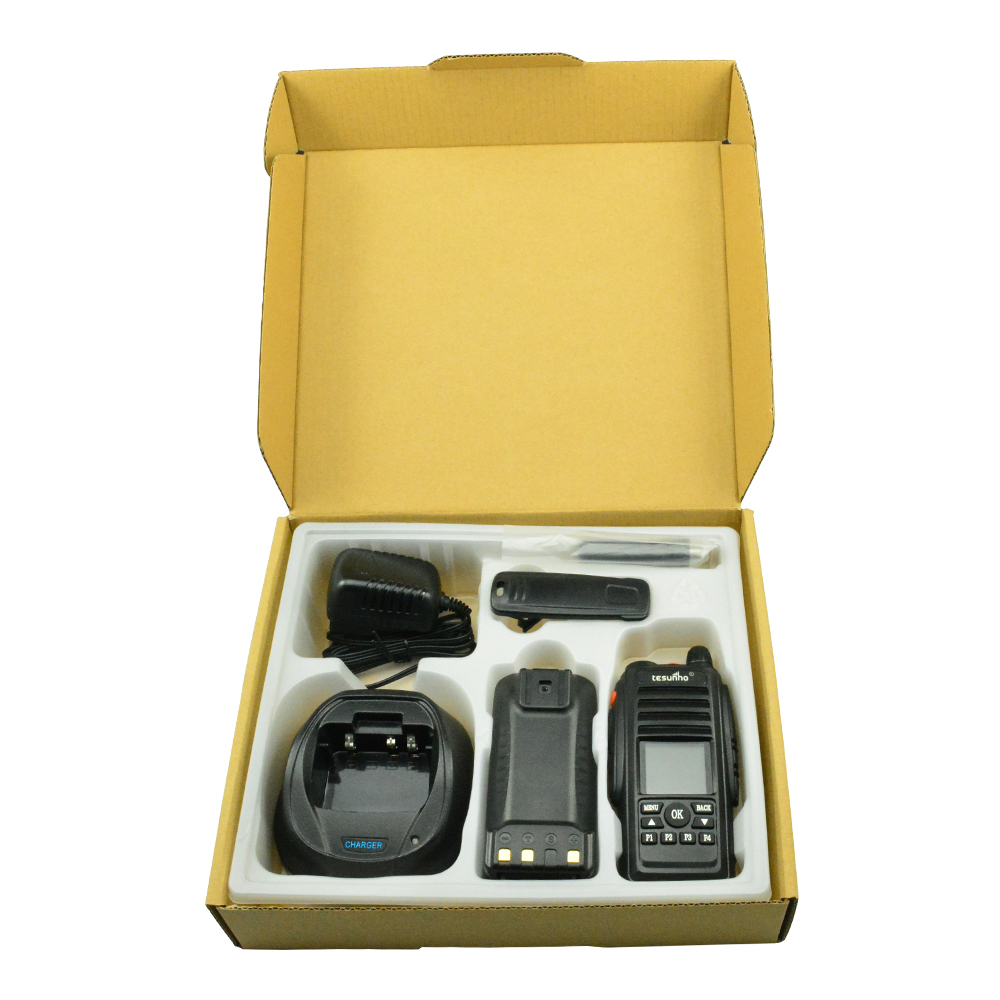

Standard Packing :
Packing Details:
DIMENSION & WEIGHT | ||||||
Item | One Unit | Standard Carton | Delivery Method | |||
Size(cm) | Gross Weight(kg) | Quantity(pcs) | Size(cm) | Gross Weight(kg) | ||
TH388 | 21.5*25*5.5 | 0.58 | 20 | 58*46*30 | 12.8 | DHL/FedEx/TNT/ EMS/By Air/By sea |
19*24.5*6.5 | 0.6 | 20 | 67*40*29 | 13.5 | DHL/FedEx/TNT/ EMS/By Air/By sea | |
Lead Time:
Item | Quantity(pcs) | Production Lead Time |
Walkie talkie | 1-50 | 1-3 days |
20-200 | 2-5 days | |
200-500 | 2-10 days | |
500-1000 | 5-21 days |
Attention please: The date is given based on the normal production ability of Tesunho Electronics. Kindly contact us for more accurate data if you have special needs!
Payment Method:
Trade Assurance / Bank transfer / Western Union / MoneyGram / Paypal
