- Panic button:active the global SOS, emergency alarm
- How it work:insert sim card, program ID account.
- OS:Linux
- Working Voltage:3.3V~4.2V (Standard 3.8V)
- GPS platform:tracking the radio user
- Battery:Ultra High Capacity Li-ion Battery 5200mAh
- Charger:Standard Micro USB charger
- Weight:282g
- APN:automatically identification
- SOS:panic button to active the global alarm
- Certification:FCC
- Certification:ce
- Type:Handheld
- Place of Origin:CN;FUJ
- Brand Name:TESUNHO wifi walkie
- Model Number:TH-518L
- Dimensions:38(H)*60 (W)*135(L)mm
- Frequency Range:LTE/ WCDMA/GSM
- Storage Channel:unlimited
- Talk Range:global talk

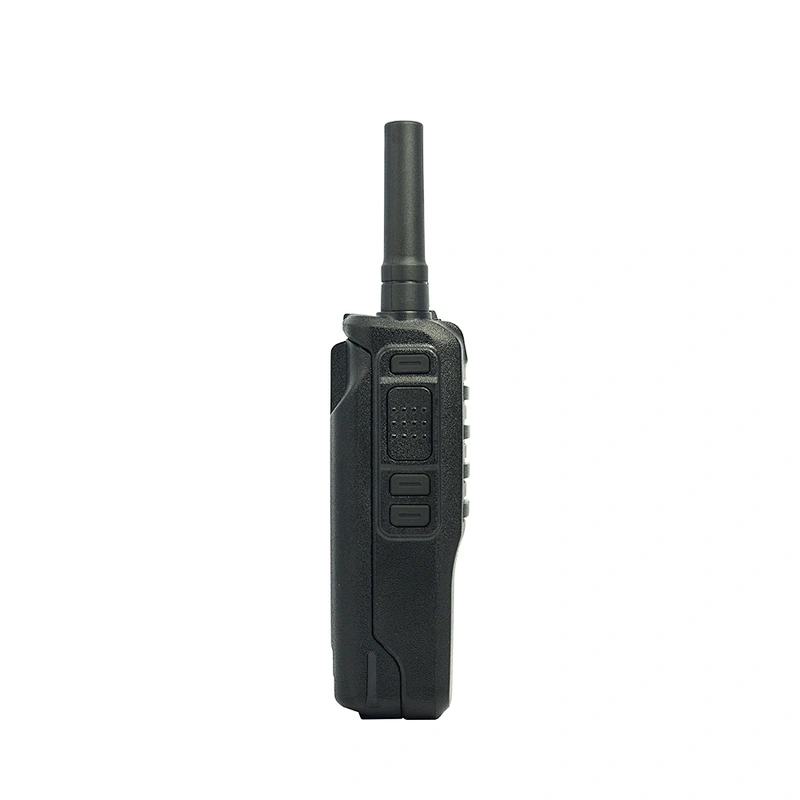

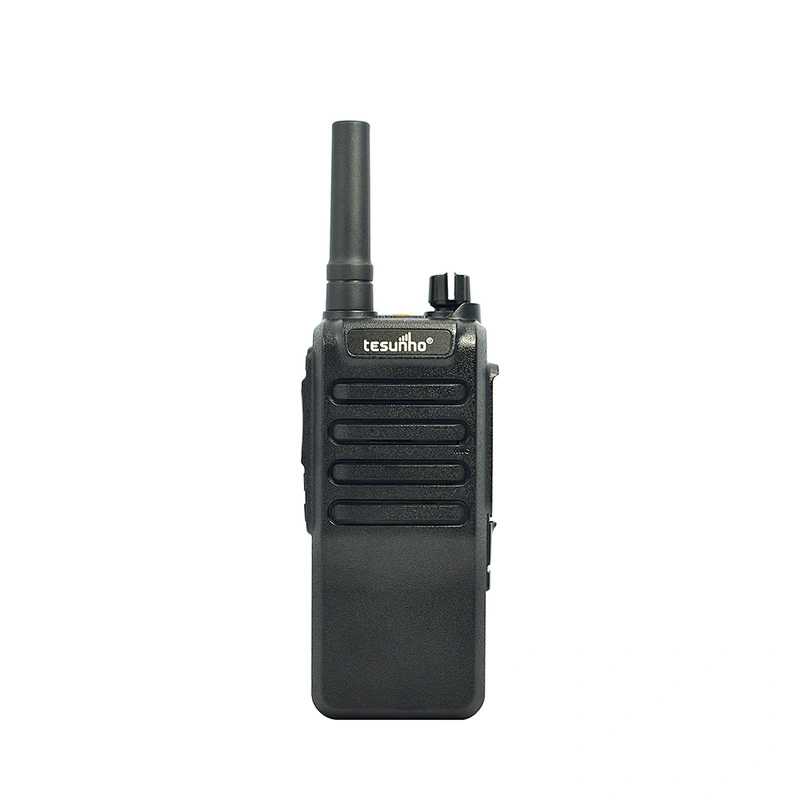

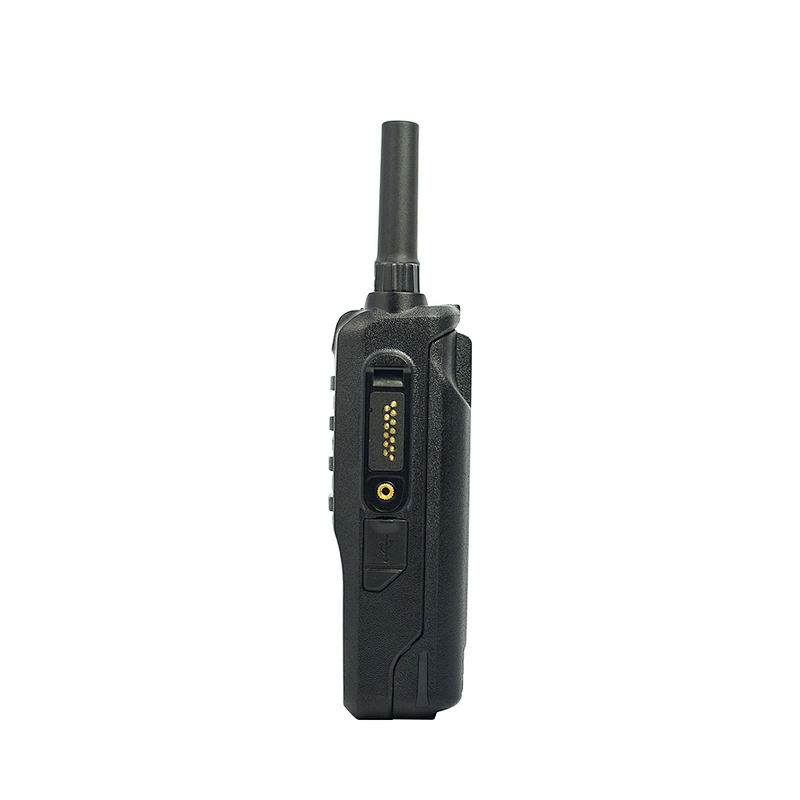

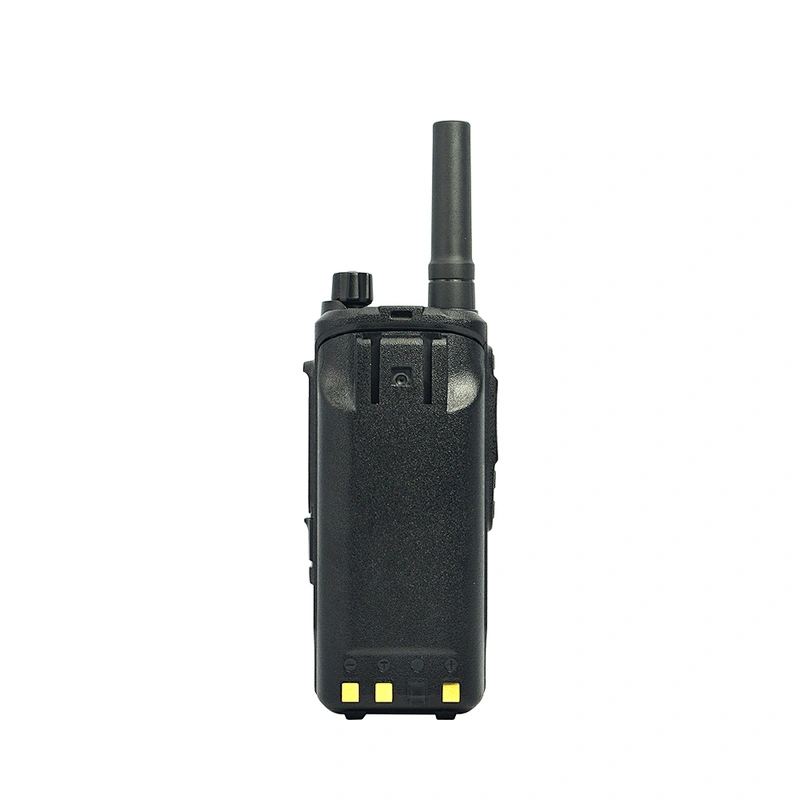

Tesunho TH-518L 4G POC LTE Radio 100KM
Main Features:
TH-518L is a robust walky talky with big battery capacity.
1. SOS (Alarm button)
2. GPS Function
3. Large Capacity (3.7V 5000mAh)
4. Quick charger – 3 hours fully charged
5. Support 4G/3G/2G network
6. Support Group Call, P2P Call, Quick Call, Emergency Call
Application:
- Unique for:Security, Construction, Industry, Commercial use,Indoor Use.
- Popular for:Airport, Railway, Army, Government, Rescue, Police,Outdoor adventure, Logistics,Taxi,Truck, Camping, Travelling, Big shopping mall, Big Hotel, Outdoor Events, etc.
Main Function :GPS, SOS
Q:how to check last call on TH-518?
A:In Idle status, press the UP key to check the last call.
Specifications:
Type | Parameter Item | Specification |
Mechanical Properties | Model No. | TH-518L |
Dimension | 38(H)×60 (W)×135(L)mm | |
Weight | 282g | |
Working Temperature | -30℃ to + 75℃ | |
Basic Parameter | Working Voltage | 3.3V~4.2V (Standard 3.8V) |
Working Current | 500mA @ LTE 300mA @ WCDMA 220mA @ GSM | |
Peak Current | 2A | |
RF Parameter | LTE FDD (Have multiple versions of LTE Bands for different countries) | Band1: 2100MHz Band3: 1800MHz Band7: 2600MHz Band8: 900MHz Band20: 800MHz |
WCDMA | Band1 : 2100MHz Band2 : 1900MHz OR Band8: 900MHz Band5: 850MHz | |
GSM | GSM/GPRS : 900/1800 MHz | |
Maximum Output power | LTE: 23±2.7dBm(Power Class 3) WCDMA: 24 +1/-3dBm (Power Class 3) GSM850/900: 33±2dBm(Power Class 4) GSM1800/1900: 30±2dBm(Power Class 1) | |
Receiving Sensitivity | LTE FDD≤ -100dBm; WCDMA900: ≤ -108dBm; WCDMA2100: ≤ -109dBm; GSM 900/1800: ≤ -106dBm | |
GPS | GPS | GPS Positioning,1.57542GHz |
Sensitivity | Catch -144dBm, Track -159dBm | |
Technology Standard | Data Speed Rate | LTE FDD-Uplink 50 Mbps / Downlink 150 Mbps WCDMA-Uplink 5.76 Mbps / Downlink 42 Mbps EDGE-Uplink 236.8Kbps / Downlink2.8 Mbps GPRS-Uplink85.6Kbps / Downlink85.6 Mbps |
Protocol | Support embedded TCP&UDP Protocols; Support Protocols PAP and CHAP used for PPP conncetion; 3GPP TS 27.005,27.007 |
More parameters, please contact with us!
Certifications:

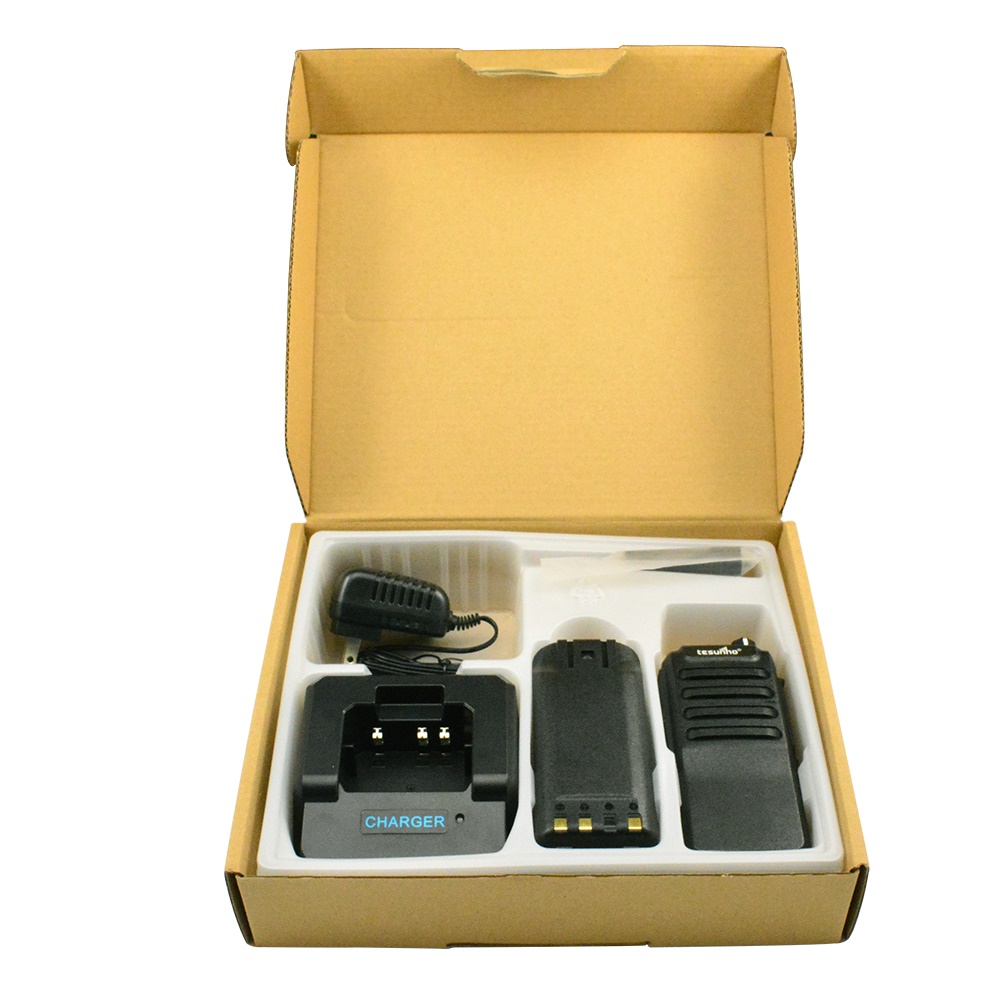

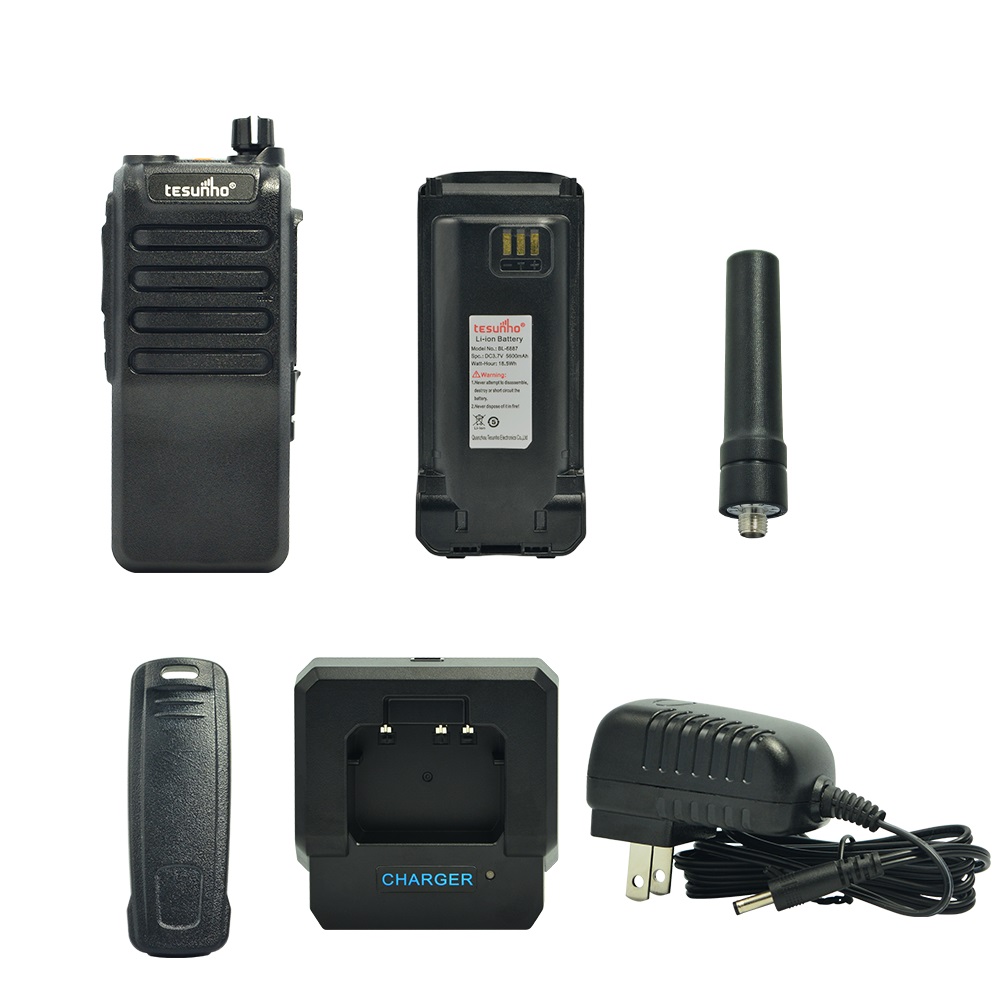

Standard Package for one piece:
Standard Packing :
Packing Details:
DIMENSION & WEIGHT | ||||||
Item | One Unit | Standard Carton | Delivery Method | |||
Size(cm) | Gross Weight(kg) | Quantity(pcs) | Size(cm) | Gross Weight(kg) | ||
TH518L | 25.5*21.5*5.5 | 0.62 | 20 | 58*46*30 | 13.9 | DHL/FedEx/ TNT/EMS/By Air/By sea |
Lead Time:
Item | Quantity(pcs) | Production Lead Time |
Walkie talkie | 1-50 | 1-3 days |
50-200 | 2-5 days | |
200-500 | 2-10 days | |
500-1000 | 5-21 days |
Attention please: The date is given based on the normal production ability of Tesunho Electronics. Kindly contact us for more accurate data if you have special needs!
Payment Method:
Trade Assurance / Bank transfer / Western Union / MoneyGram / Paypal
