- Product Name:Walkie Talkie
- Screen:1.77 TFT
- Feature:LTE & Analog Working
- Network IP Radio:2G / 3G/ 4G
- Analog Radio:UHF OR VHF
- GPS:GPS And A-GPS
- Body Charging Port:Micro USB
- Battery:Ultra High Capacity li-ion battery
- Weight:305g
- Certification:ce
- Type:Handheld
- Place of Origin:CN;FUJ
- Brand Name:TESUNHO
- Model Number:TH-680
- Dimensions:38(H)*58(W)*135(L)mm
- Frequency Range:LTE/WCDMA/GSM
- Storage Channel:Group
- Talk Range:All Over The World

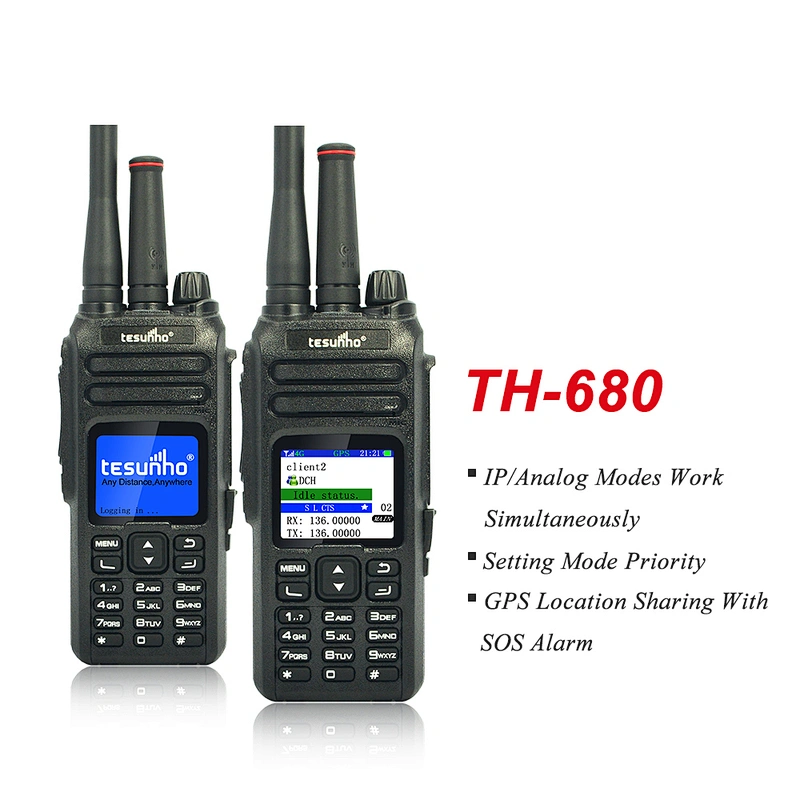

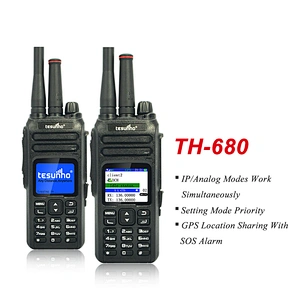

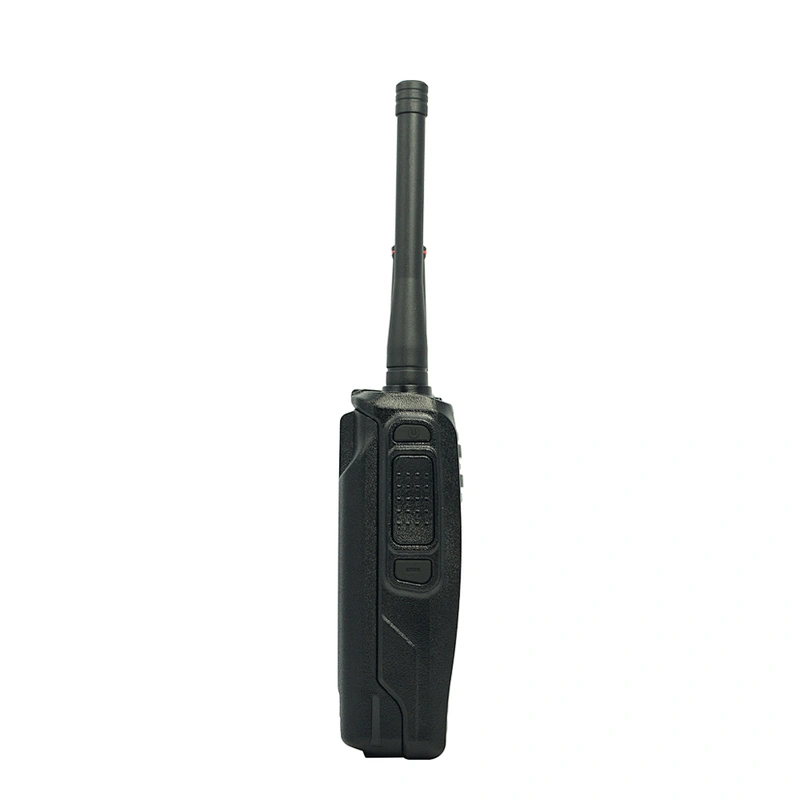

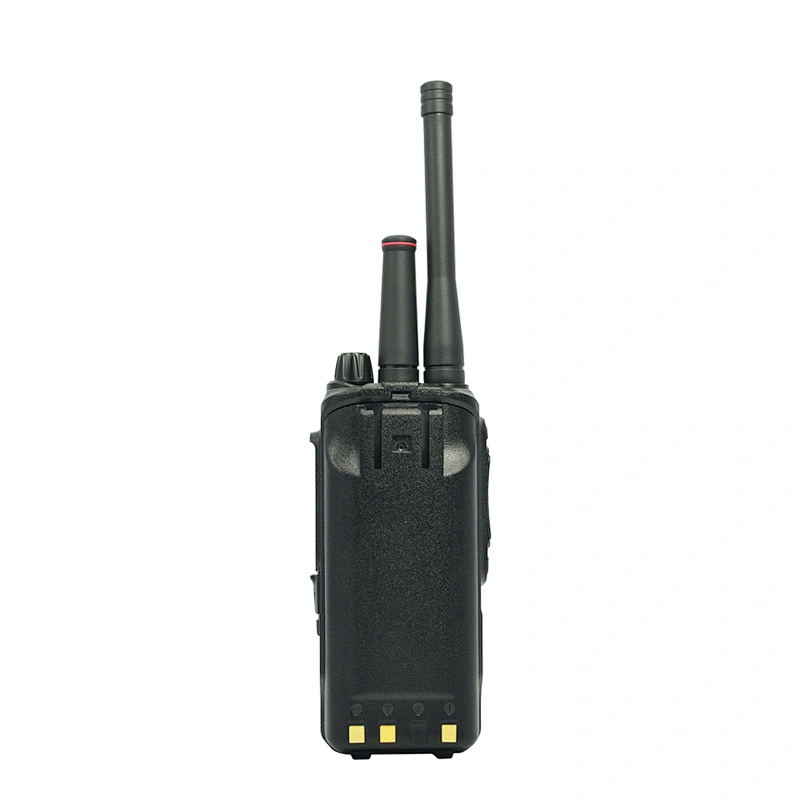

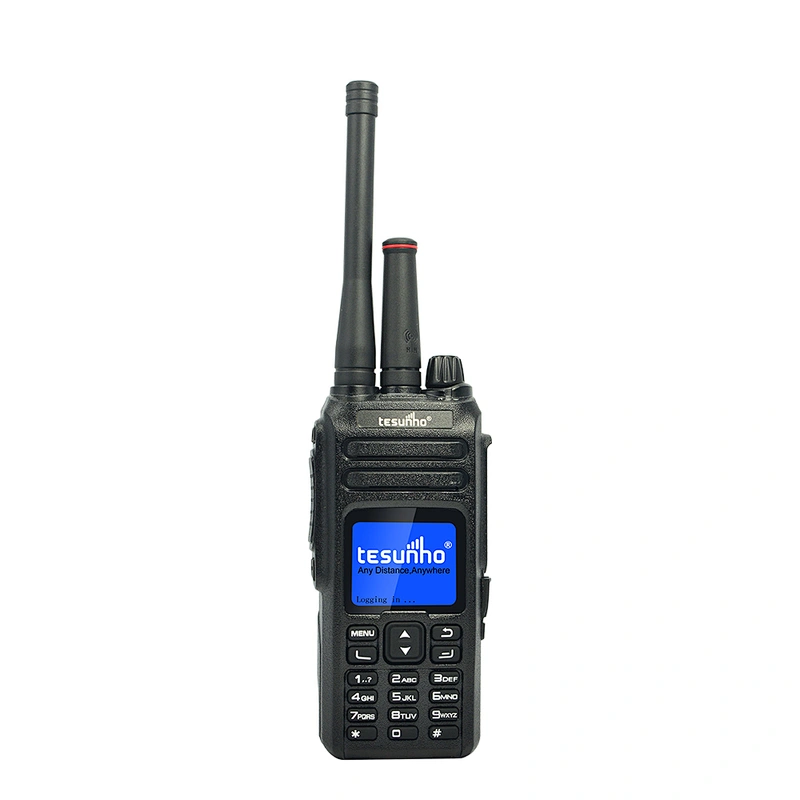

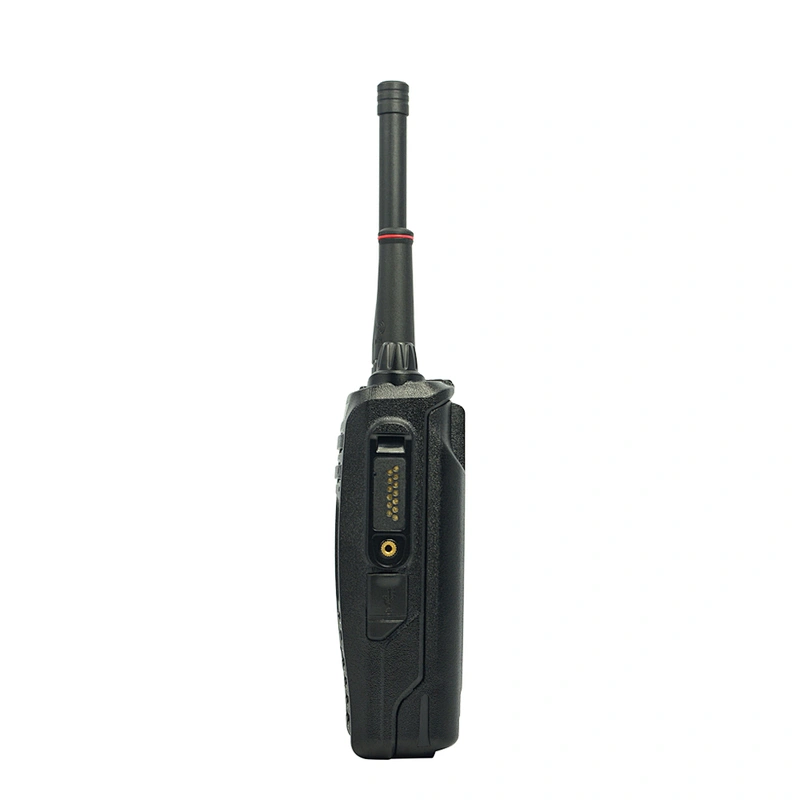

Tesunho TH-680 Network Radio 4G Analog Dual Mode POC PTT Radio
Main Features:
TH-680 is a dual working modes 2-way radios. It combines GSM WCDMA SIM Card IP radio and VHF /UHF analog walkie talkie in one piece. Help to achieve smooth over traditional radio to public network radio.
1. Analog UHF or VHF +4G network
2. Can realize mixed-mode communications
3. Setting Mode priority

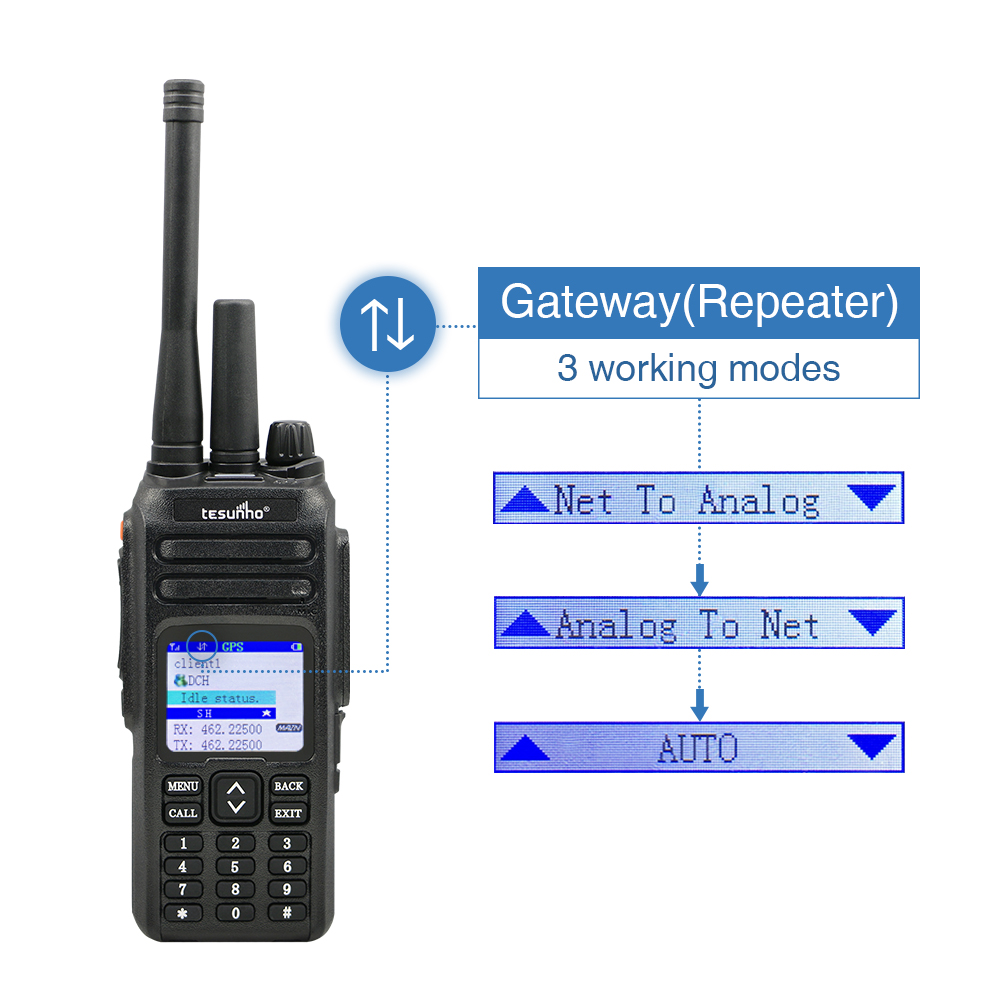

4. Gateway(Repeater function)
a. Realize the communication between IP and analog radios.
b. solution to achieve Analog radios talking range unlimited.
5. SOS alarm

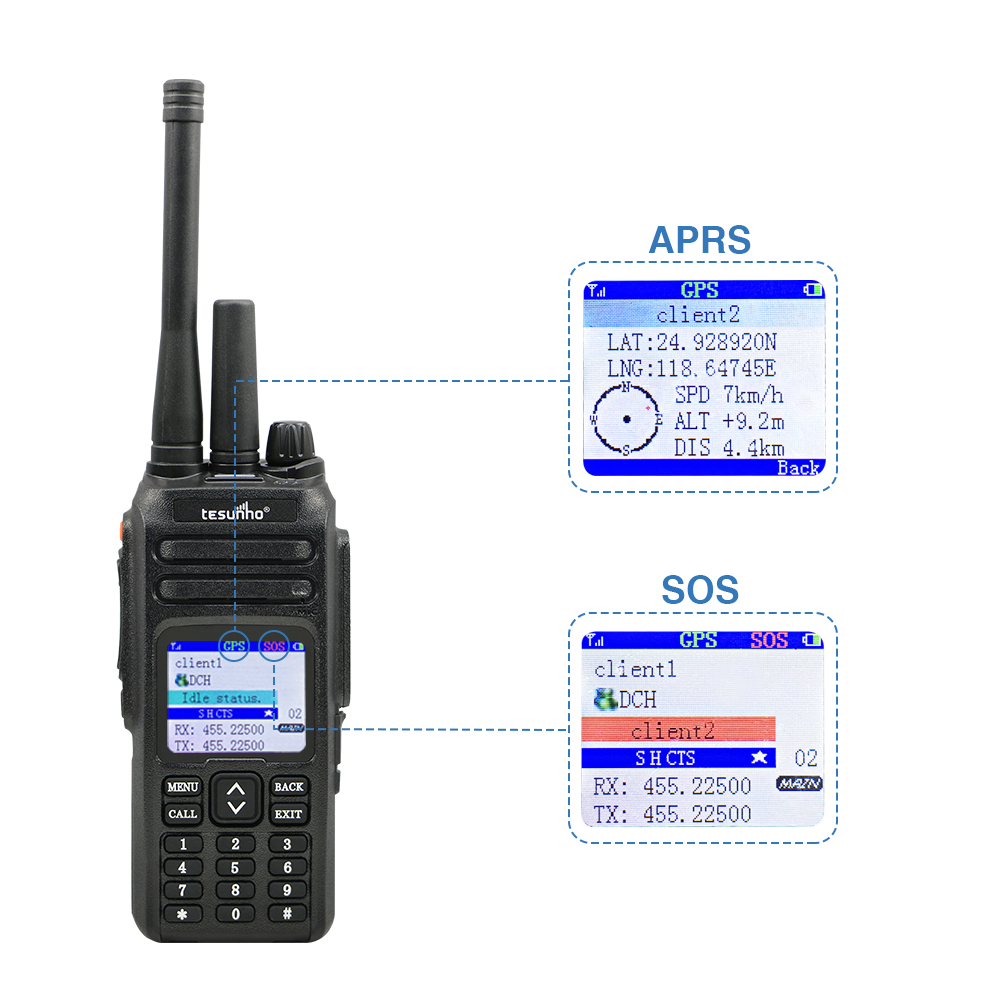

6. GPS location sharing with SOS
7. Support Group Call, P2P Call, Quick Call, Emergency Call
Application:
- Unique for:Security Guard, Construction Site, Government, Bank, Hospital, Restaurant, Hotel, University, international Institutions.
- Popular for:Airport, Railway, Army, Rescue, Police, Outdoor adventure, Logistics, Taxi, Truck, Camping, Travelling, Big shopping mall, Big Hotel, Outdoor Events, etc.
Main Function :Repeater, Two working modes, SOS&APRS
Q:How to open repeater on TH-680?
A: Choose the Advanced Setting and press MENU key into the list.
Specifications:
Type | Parameter Item | Specification | |
Mechanical Properties | Model No. | TH-680 | |
Dimension | 38(H)×58(W)×135(L)mm | ||
Weight | 305g | ||
Working Temperature | -30℃ to + 75℃ | ||
Basic Parameter | Working Voltage | 6.4V~8.4V (Standard 7.6V) | |
Working Current | 500mA @ LTE 300mA @ WCDMA 220mA @ GSM 1600mA @ Analog TX /Repeat | ||
Peak Current | 1.8A | ||
RF Parameter | LTE FDD(Have multiple versions of LTE Bands for different countries) | Band1: 2100MHz Band3: 1800MHz Band7: 2600MHz Band8: 900MHz Band20: 800MHz | |
WCDMA | Band1 : 2100MHz Band2 : 1900MHz OR Band8: 900MHz Band5: 850MHz | ||
GSM | GSM/GPRS : 900/1800 MHz | ||
Maximum Output power | LTE: 23±2.7dBm(Power Class 3) WCDMA: 24 +1/-3dBm (Power Class 3) GSM850/900: 33±2dBm(Power Class 4) GSM1800/1900: 30±2dBm(Power Class 1) Analog UHF/VHF: 5W | ||
Receiving Sensitivity | WCDMA900: ≤ -108dBm; WCDMA2100: ≤ -109dBm; GSM 850/900/1800/1900 : ≤ -106dBm | ||
GPS | GPS | GPS Positioning,1.57542GHz | |
Sensitivity | Catch -144dBm, Track -159dBm | ||
Technology Standard |
Data Speed Rate | GSM CS : UL 9.6 Kbps / DL 9.6 Kbps GPRS: Multi-slot class 10 EDGE: Multi-slot class 12 WCDMA CS : UL 64 Kbps / DL 64 Kbps WCDMA PS : UL 384 Kbps / DL 384 Kbps | |
Protocol | HSDPA / WCDMA / EDGE / GPRS / GSM | ||
Analog Parameter | GENERAL | ||
Frequency Range | UHF : 400-480MHz OR VHF : 136-174MHz or 240-260MHz | ||
Channel Number | 199 | ||
Channel Space | 25 /12.5KHz | ||
Frequency Stability | ±2.5 ppm | ||
TRANSMITTER | |||
| Wide band | Narrow band | |
Power Output | 5W | ||
Modulation | 16KΦF3E | 11KΦF3E | |
Spurious Emission | ≤-36dBm | ≤-36dBm | |
Adjacent Channel Power | ≥70dB | ≥60dB | |
RECEIVE | |||
RF Sensitivity (12db SINAD) | 0.20 μV | 0.20 μV | |
Adiacent Channel Selectivity | ≥60dB | ≥55dB | |
Intermodulation Rejection | ≥65dB | ≥60dB | |
Spurious Response | ≥65dB | ≥65dB | |
More parameters, please contact with us!
Certifications:

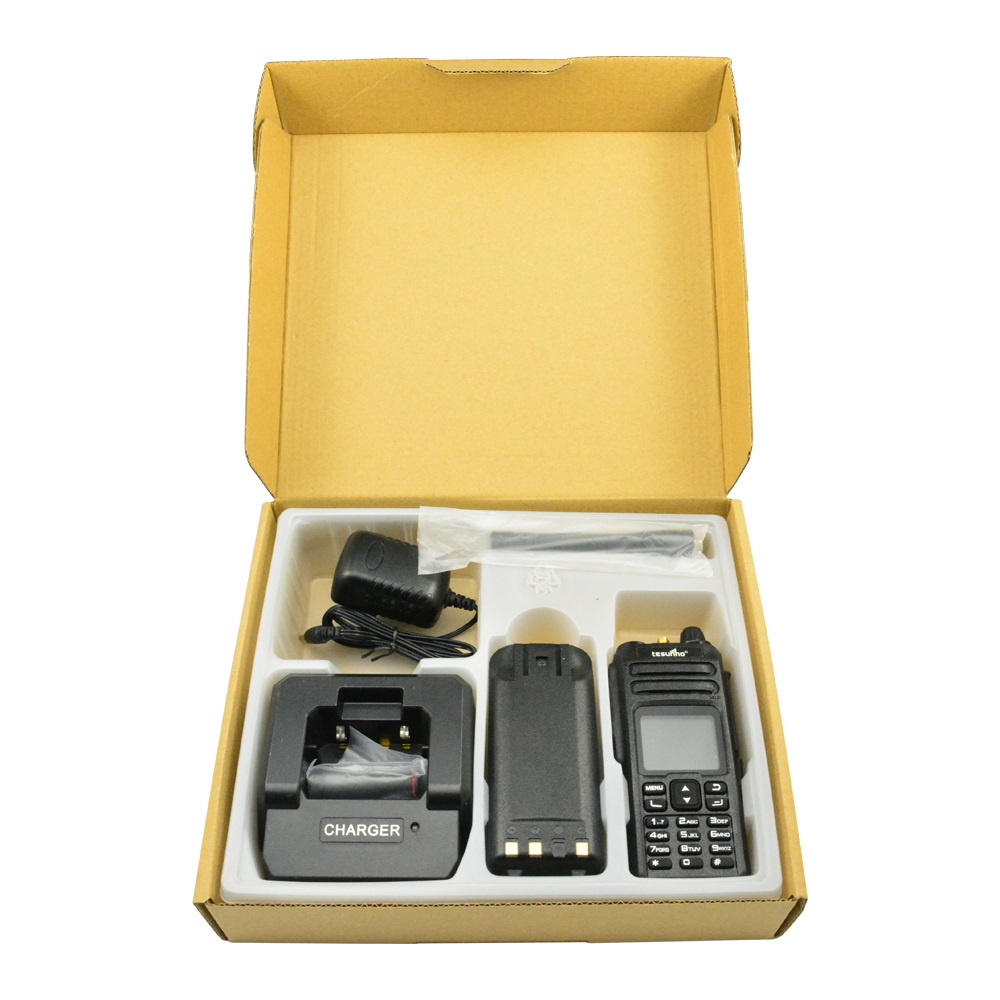

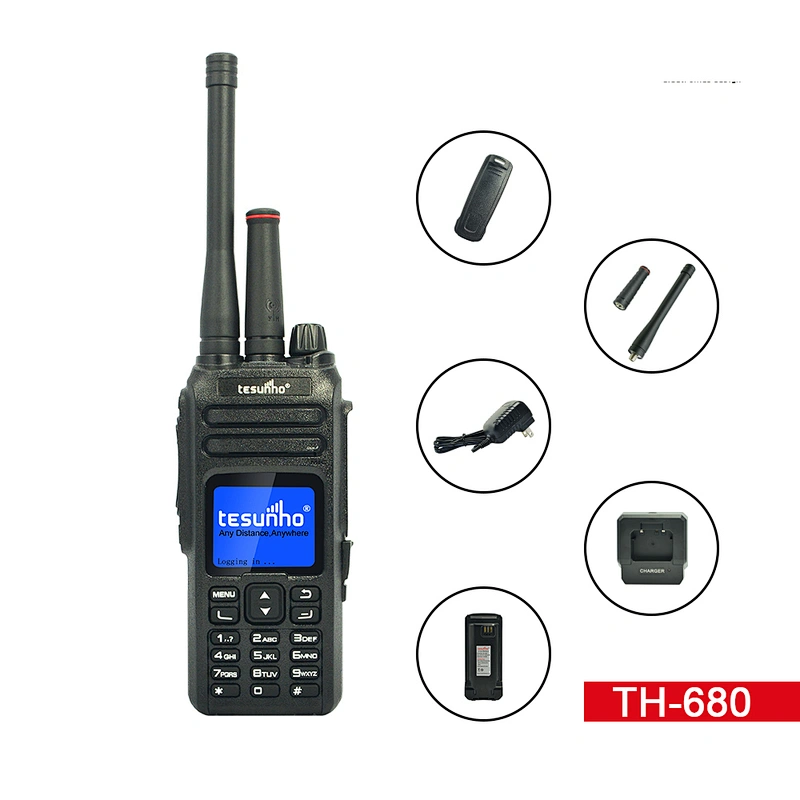

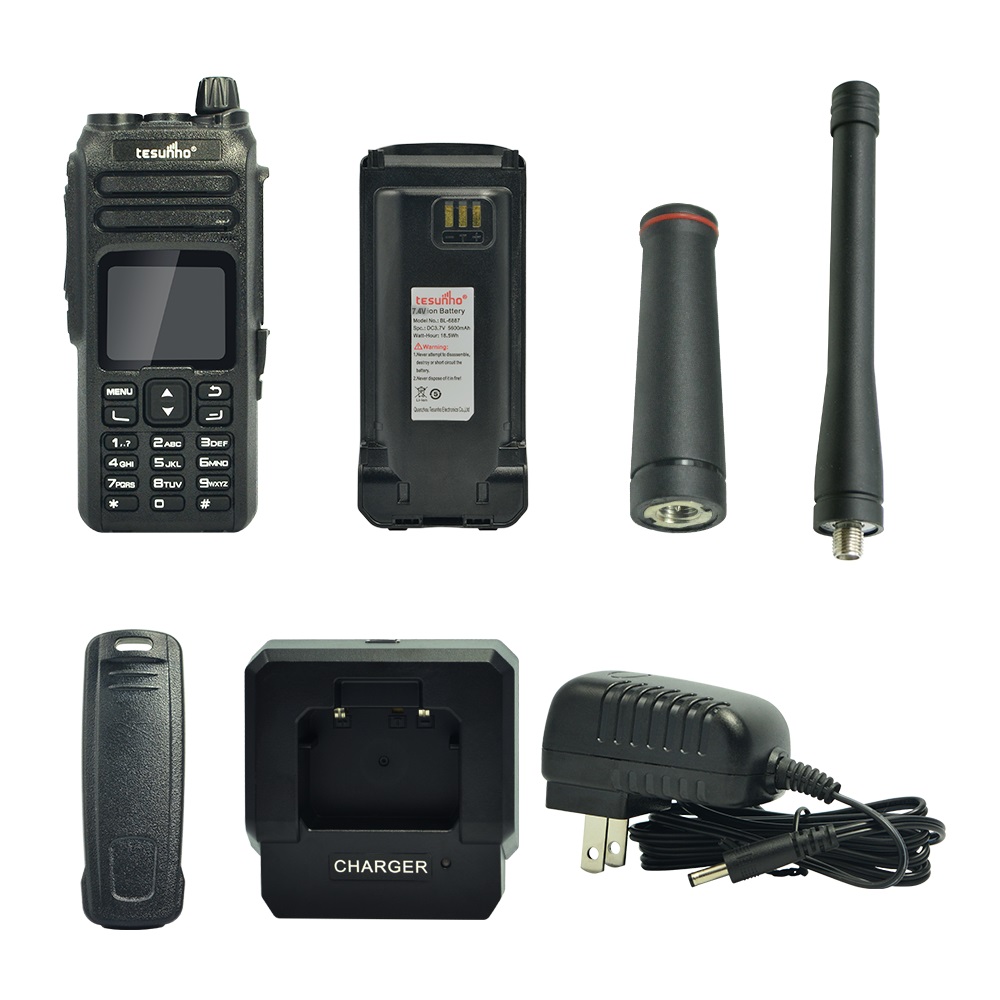

Standard Package for one piece:
Standard Packing :
Packing Details:
DIMENSION & WEIGHT | ||||||
Item | One Unit | Standard Carton |
Delivery Method | |||
Size(cm) | Gross Weight(kg) | Quantity(pcs) | Size(cm) | Gross Weight(kg) | ||
TH680 |
25.5*21.5*5.5 |
0.64 |
20 |
58*46*30 |
13.9 | DHL/FedEx/TNT/ EMS/By Air/By sea |
Lead Time:
Item | Quantity(pcs) | Production Lead Time |
walkie talkie | 1-50 | 1-3days |
50-200 | 2-5days | |
200-500 | 2-10days | |
500-1000 | 5-21days |
Attention please: The date is given based on the normal production ability of Tesunho Electronics. Kindly contact us for more accurate data if you have special needs!
Payment Method:
Trade Assurance / Bank transfer / Western Union / MoneyGram / Paypal
Tesunho is aim to be the leading industrial walkie talkie solution supplier. So our service consists of 3 important parts:
1. Basic Warranty:
√ Replacement: Free new walkie talkie if it can not work at once it arrives.
√ Free maintenance and parts (without artificial faulty ) :
Item | Warranty |
Main Unit | 365 days |
Battery and Charger | 90 days |
Antenna and other parts | None |
2. Brand OEM service:
√ partly OEM service
√ complete OEM service
3. Technical ODM service:
we have abundant of experience on industrial needs customization
√ Rail way station communication device
√ Hotel inner wifi communication structure
√ Security Guard Patrol system with walkie talkie
√ Irrigation Patrol system
√ Intelligent Parking system
√ Logistics Management system
News:
Why Us:
Click Picture to Learn More. Any of your inquiry is welcomed!
FAQ:
1.Are you a trade company or a manufacturer?
A: We are an R&D based creative and productive manufacturer specialized in CE FCC approved walkie talkie.
2.How POC Radio work?
A: It needed poc radio, sim card and real ptt account, contact us for more explaining
3.How to program radio?
A: It need real ptt account, real ptt account password, URL, Apn. Pls feel free to contact us, we will offer you programming instruction and guide one by one step.
4.What is your MOQ?
A: 2 piece for normal stock; different quantities for OEM or ODM,which is determined by different task workload. Kindly contact us for more information.
5.What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
A: You can get free sample by means of returning sample fund after regular order.
