- Feature:Noise Supperssion
- Advantages:Ultra High Capacity Battery
- Weight:260g
- Operating Voltage:7.2V DC ±15%
- Working Temperature:-30*C to +60*C
- Battery Capactiy:3500mAh
- RF Power Output:0.5W/5W/10W
- Sensitivity(12Db SINAD):0.16μV
- Operating Bandwidth:±3.5kHz/3.75kHz
- Standby Current:< 12mA
- Certification:ce
- Type:Handheld
- Place of Origin:CN;FUJ
- Brand Name:TESUNHO
- Model Number:TH-850Plus
- Dimensions:120mm*60mm*40mm
- Frequency Range:136-174MHz/350-390MHz 400-480MHz/440-520MHz
- Storage Channel:99 channels
- Talk Range:3-5km(Downtown),6-20km(In the Open Area)

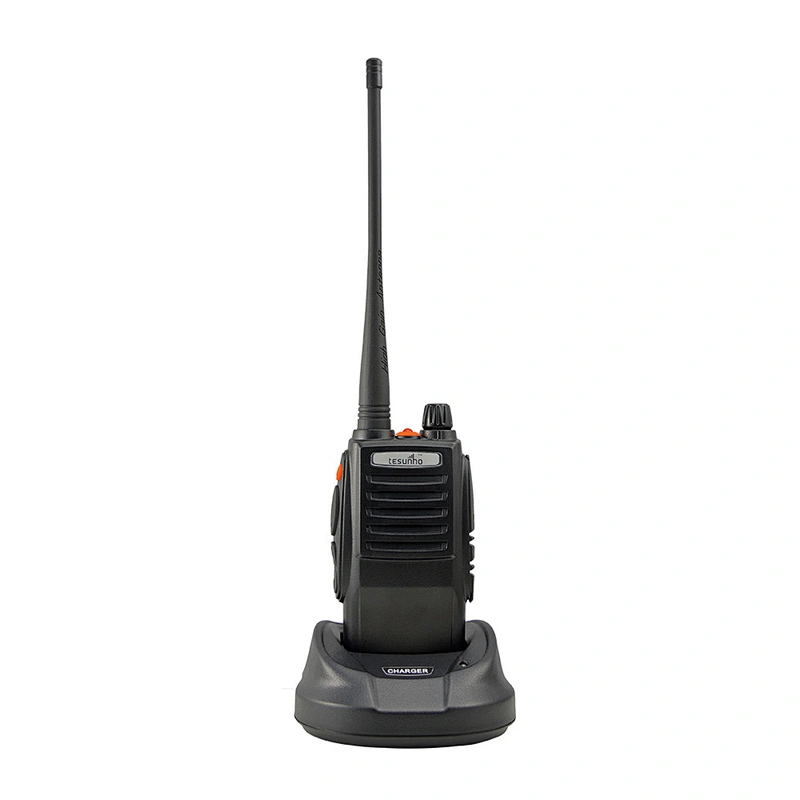

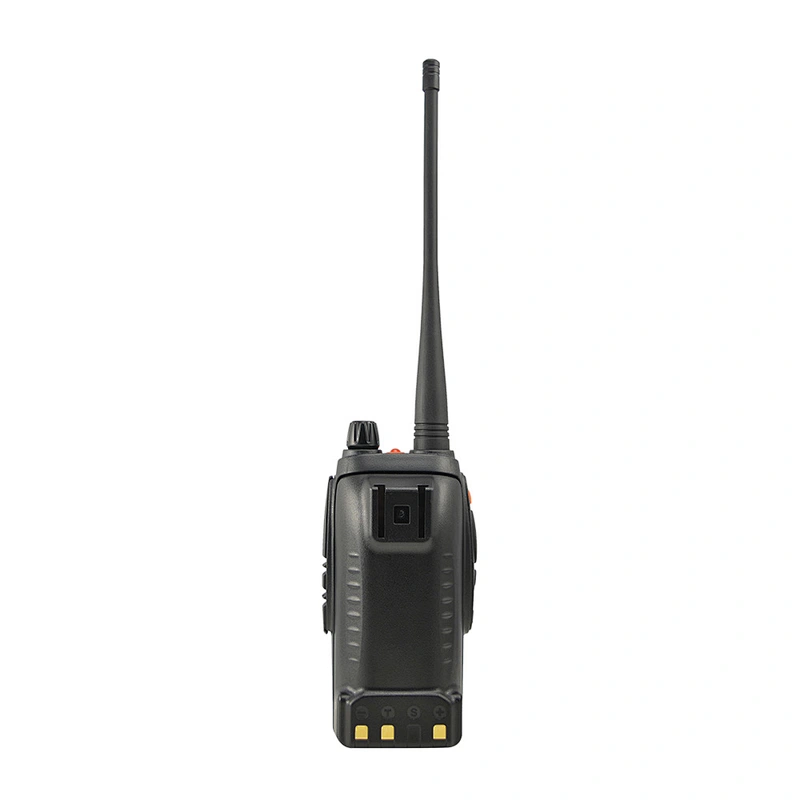

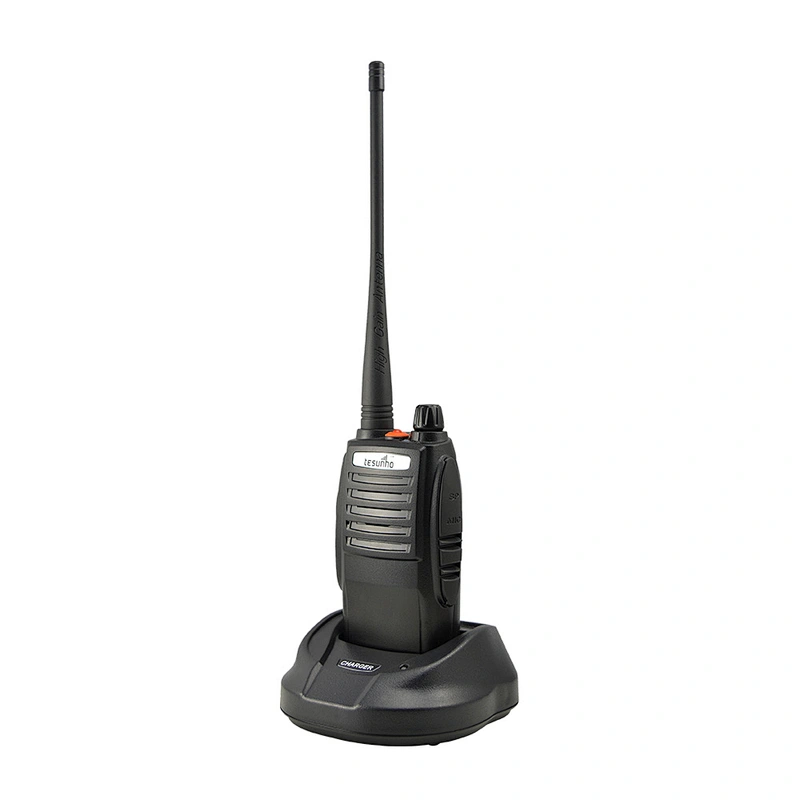

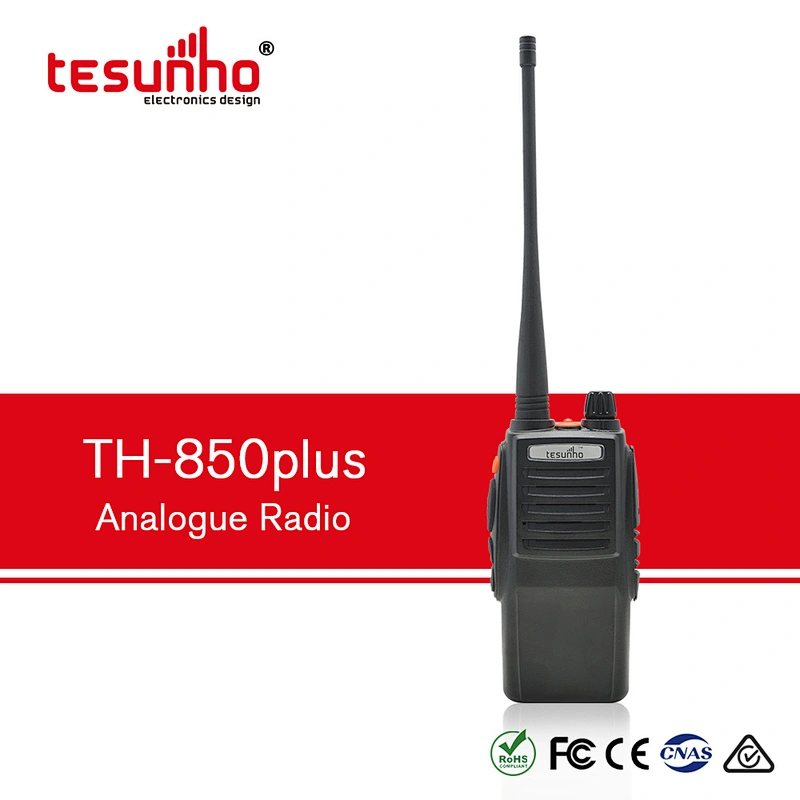

1. Product Description- TESUNHO TH-850Plus Handheld UHF VHF Walkie Talkie
TH-850PLUS 10W high power multifunctional professional two way radio has IPX6 waterproof rate, super large capacity li-ion battery, long time standby. Noise suppression function can solve the communication problem in the noise environment,such as manufacturer, tunnel construction etc. Military standard design can be suitable for variety of professional application such as police, trains, metal mines, tunnels, large construction sites etc.

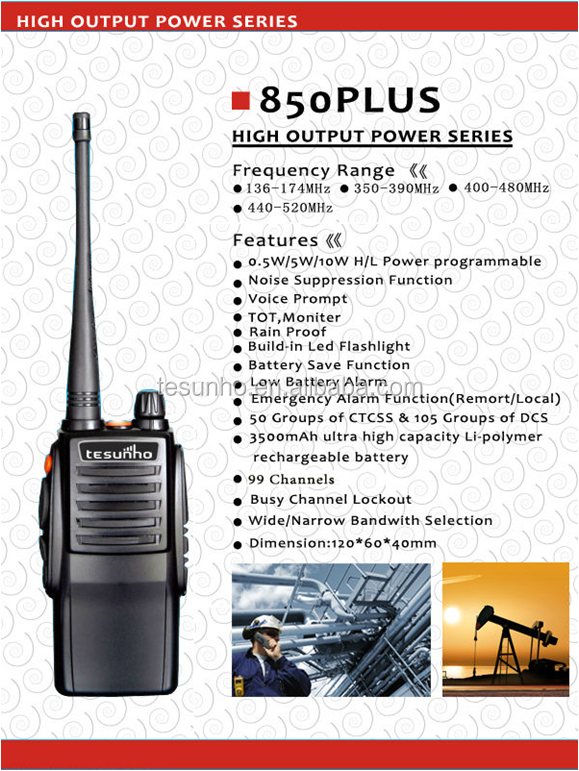

2. Main Features Of TESUNHO TH-850Plus Handheld UHF VHF Walkie Talkie
3.Technique Specification Of TESUNHO TH-850Plus Handheld UHF VHF Walkie Talkie
| Model NO. | TH-850Plus | |
| General | ||
| Frequency Band | VHF | UHF |
| Frequency Range | 136-174MHz/350-390MHz | 400-480MHz/440-520MHz |
| Channel Capacity | 99 | |
| Operating Voltage | 7.2V DC ±15% | |
| Antenna Impedance | 50Ω | |
| Channel Spacing | 12.5kHz/25kHz | |
| Working Temperature | -30 °C - +60 °C | |
| Frequency Stability | ±2.5 ppm | |
| Size (Without Antenna) | 120(W)mmx60(L)mmx40mm(D) | |
| Weight(With Battery) | about 260g | |
| Battery | 3500mAh(Li-poly battery) | |
| Transmitter | ||
| RF Power Output | 0.5W/5W/10W | |
| Modulation Type | F3E | |
| Modulation Distortion | < 5%(300-3000Hz) | |
| Max Freq Deviation | < 5kHz(1000Hz When 100%) | |
| FM Noise | <=-45dB | |
| Receiver | ||
| Sensitivity(12Db SINAD) | 0.16μV | |
| Selectivity | 55dB | |
| Adjacent Channel Selecivity | >=70dB | |
| Noise Respond | >=60dB | |
| Communication Range | 3-5km(Downtown),6-20km(In the Open Area) | |
| FM Noise | 30dB/40dB | |
| Modulation Type | 8K/16KF3E | |
| Audio Power Output | 500mW When Distortion Less Than 10% | |
| Audio Distortion | < 5% | |
| Operating Bandwidth | ±3.5kHz/3.75kHz | |
| Standby Current | < 12mA | |

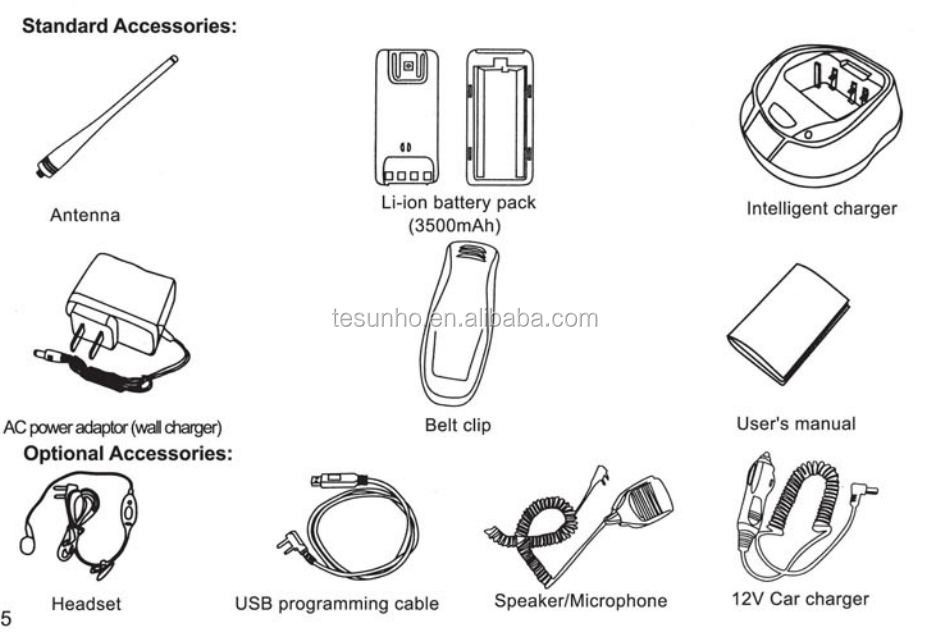

4.Standard Accessories
5. Optional Accessories
6.Shipping & Payment
| MOQ | 2 for samples; 100 for mass production; 500 for OEM |
| Packaging | Gift box, 20pcs/carton |
| Trade Terms | FOB Xiamen/Shenzhen/Hangzhou |
| Payment | T/T, West Union, Money Gram, PayPal,Escrow or LC |
| Express delivery | DHL/UPS/FEDEX/EMS/TNT |
| Delivery time | 3-5 days after receiving the payment |
| Warranty | Radio 1 year; Accessories 3 Months |
7.Warranty
| Item | Period | Service |
| Main Unit | 1 Year Warranty | Finish maintainance within 1-15days |
| After receiving the returned units | ||
| Battery | Half Year Warranty | Within Half Year:send you brand new one if it is not manually damaged; |
| Beyond Half Year:supply cost-effective renovation | ||
| Charger | Half Year Warranty | Within Half Year:send you brand new one if it is not manually damaged; |
| Beyond Half Year:supply cost-effective renovation |

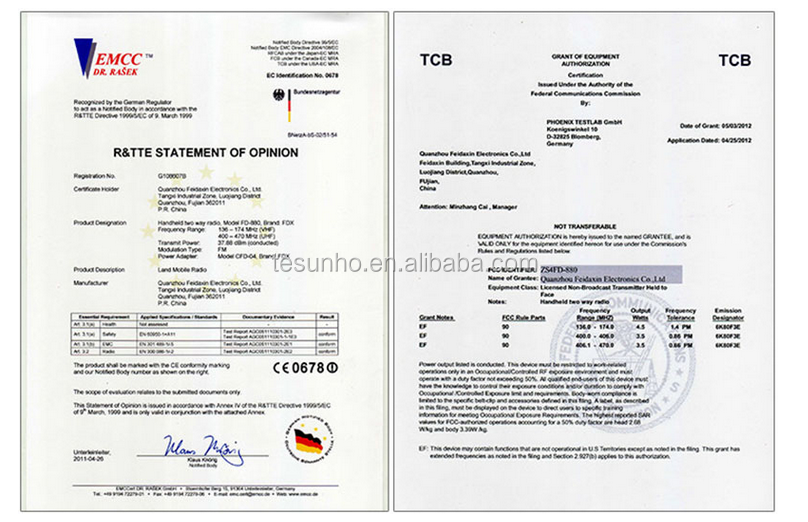

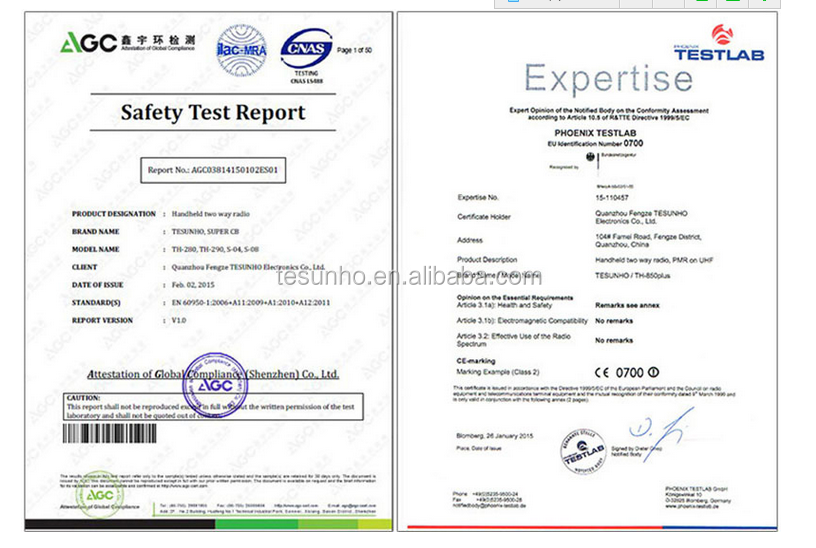

8.Certification
9.Design Services
| Project |
| Repeater Design and Production |
| PCB/PCBA Design and Production |
| Chip programme Design and Production |
| Analog walkie talkie Design and Production |
| Internet walkie talkie Design and Production |
| Digital walkie talkie Design and Production |
| Switching power supply Design and Production |
10.Our Enterprise
| Professional | 10 years Electronics Design Experience. |
| Powerful and reliable R&D team. | |
| Effective | Instant respond to customer's enquiry. |
| Control design and productive cost, cost-effective. | |
| Trusted | Never reveal customers design. |
| Exclusivity is guaranteed! | |
| To-be-perfect | Because of all the above. |
| Target Customer | Who has distinctive foresight on the industry. |
| Who wants to save the high expenses on R&D in order to enhance integrated competition. | |
| Whole sellers who has a large local market and wants its own brand. |

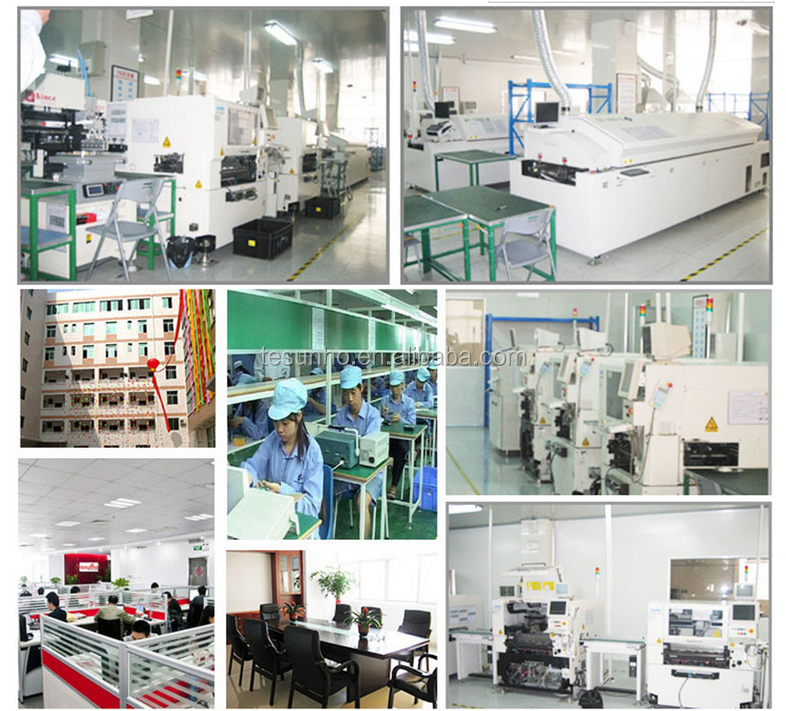

11.Our Environment
12.Our Brand
14.FAQ
FAQ:
1.Are you a trade company or a manufacturer?
A: We are an R&D based creative and productive manufacturer specialized in CE FCC approved walkie talkie.
2.What is your MOQ?
A:1 piece for normal stock; different quantities for OEM or ODM, which is determined by different task workload. Kindly contact us for details.
3.What is your payment terms?
A:30% deposit in advance and 70% balance before shipment.
4.Can you send free samples?
A: You can get free sample by means of returning sample fund after regular order.
