- Frequency LTE band:B1/B2/B4/B5/B7/B8/B12/B17
- LAN Ports:2
- Dimension:100x98x23mm
- Standard:IEEE802.11b/g/n
- Power Supply:DC 12V/1.5A
- CPU:Industrial 32 bits CPU
- Weight:300g
- Operating Temperature:-35~+75C
- RX Sensitivity:<-72dBm@54Mpbs
- Consumption:<310mA (12V)
- Place of Origin:CN;FUJ
- Model Number:TR-100
- Brand Name:TESUNHO
- Application:Smart Meter,Logistic,Water Metering,etc

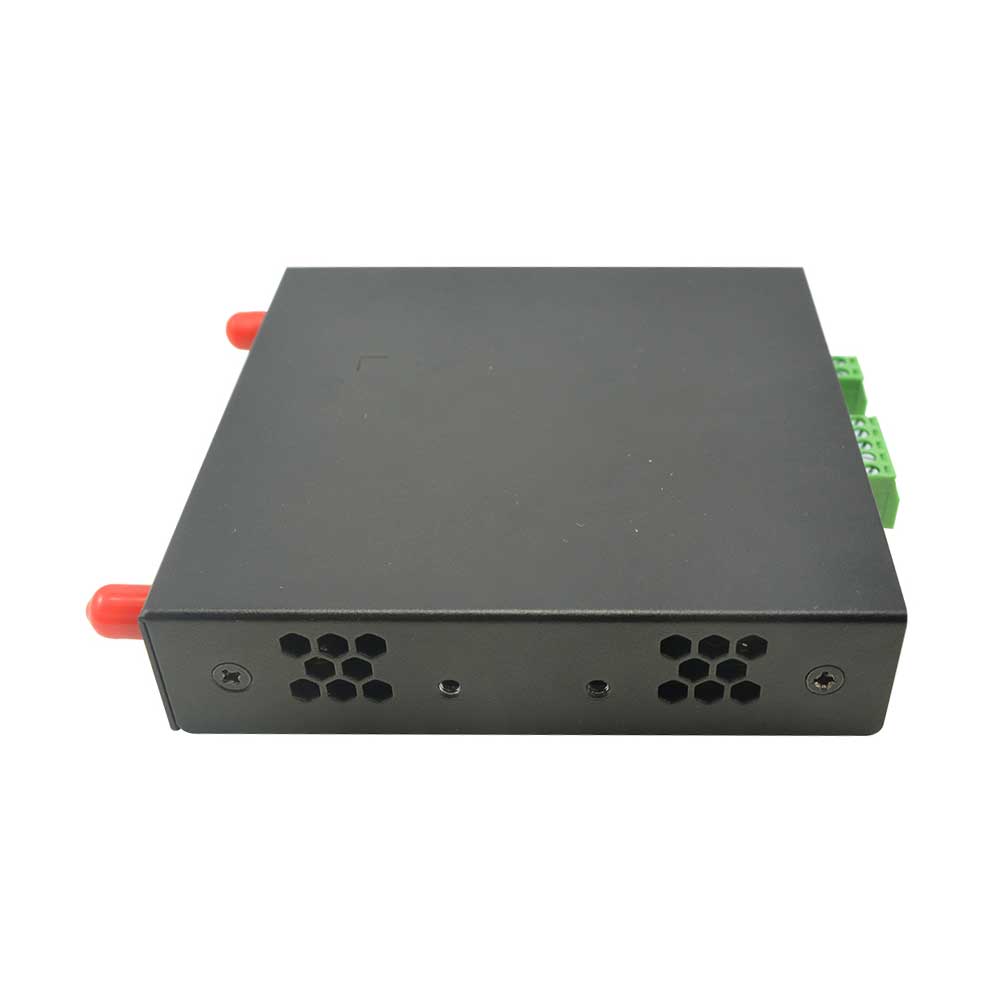

Product Description
- Features and Benefits：
Design for Industrial Application
High-powered industrial cellular module
High-powered industrial 32bits CPU
Support low-consumption mode, including sleep mode, scheduled online/offline mode, scheduled power-on/power-off mode(optional)
Housing: iron, providing IP30 protection.
Power range: DC 5~36V Stability and Reliability
Support hardware and software WDT
Support auto recovery mechanism, including online detect, auto redial when offline to make Router always online
Standard and Convenience

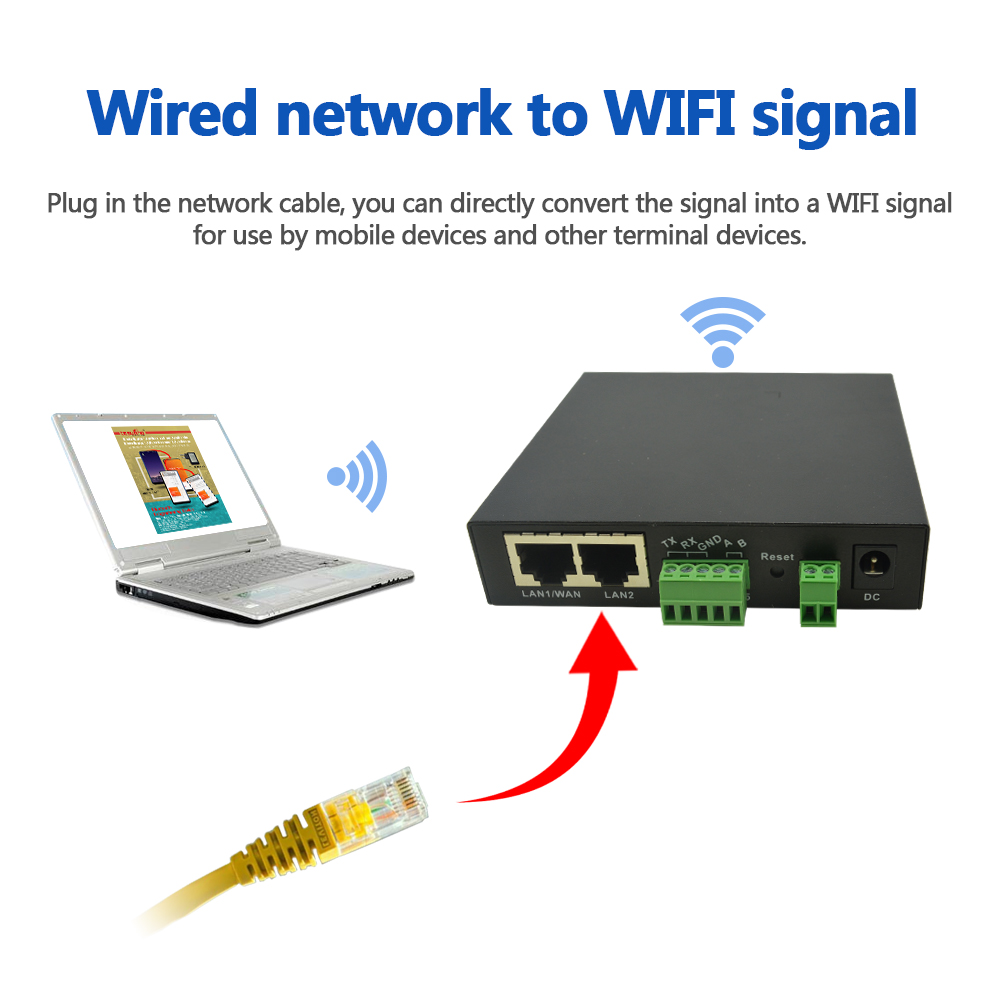

Support standard RS232(or RS485/RS422), Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly Support standard WAN port and PPPOE protocol that can connect to ADSL directly Support intellectual mode, enter into communication state automatically when powered
Provide management software for remote management Support several work modes Convenient configuration and maintenance interface（WEB or CLI） High-performance
Support multiple WAN access methods, including static IP, DHCP, L2TP, PPTP,PPPOE,2.5G/3G/4G Support double link backup between cellular and WAN(PPPOE, ADSL) (optional) Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version) Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version) Support local and remote firmware upgrade,import and export configure file Support NTP, RTC embedded

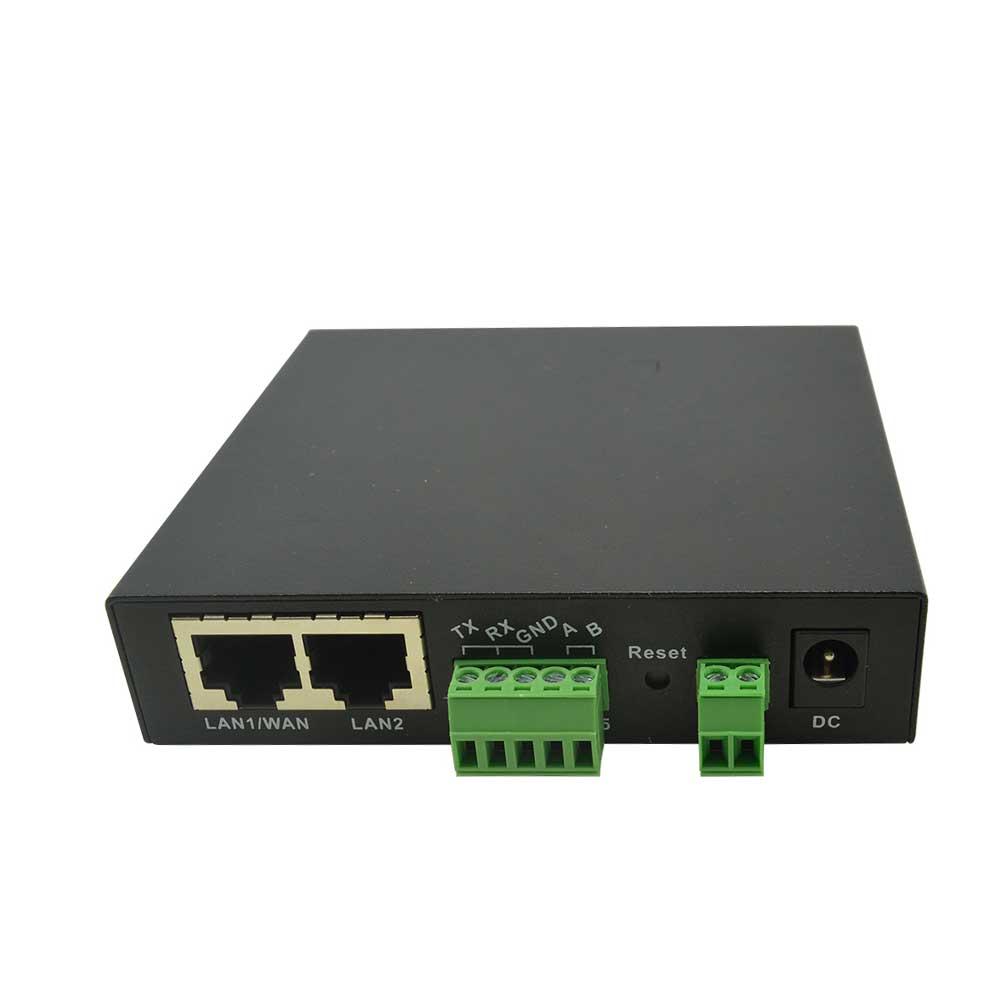

Ports Details
Ethernet port: 1.5KV magnetic isolation protection RS232/RS485/RS422 port: 15KV ESD protection SIM/UIM port: 15KV ESD protection Power port: reverse-voltage and overvoltage protection Antenna port: lightning protection(optional)
Product specification
Cellular Module | Industrial cellular module |
Frequency Band | GSM/UMTS/LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20 (2100/1900/1800/1700/850/2600/ 900/800MHz) FDD: B2/B4/B5/B13/B17/B25/B26 (Optional),etc |
CPU | Industrial 32 bits CPU |
FLASH | 16MB (Extendable to 512MB) |
RAM | 64MB |
Standard | IEEE802.11b/g/n |
Bandwidth | IEEE802.11b/g: 54Mbps (max) IEEE802.11n: 300Mbps (max) |
Security | WEP, WPA, WPA2, etc. WPS (optional) |
TX power | 21.5dBm（11g），26dBm（11b） |
RX sensitivity | <-72dBm@54Mpbs |
WAN Port | One(Can configure LAN1 to be WAN) |

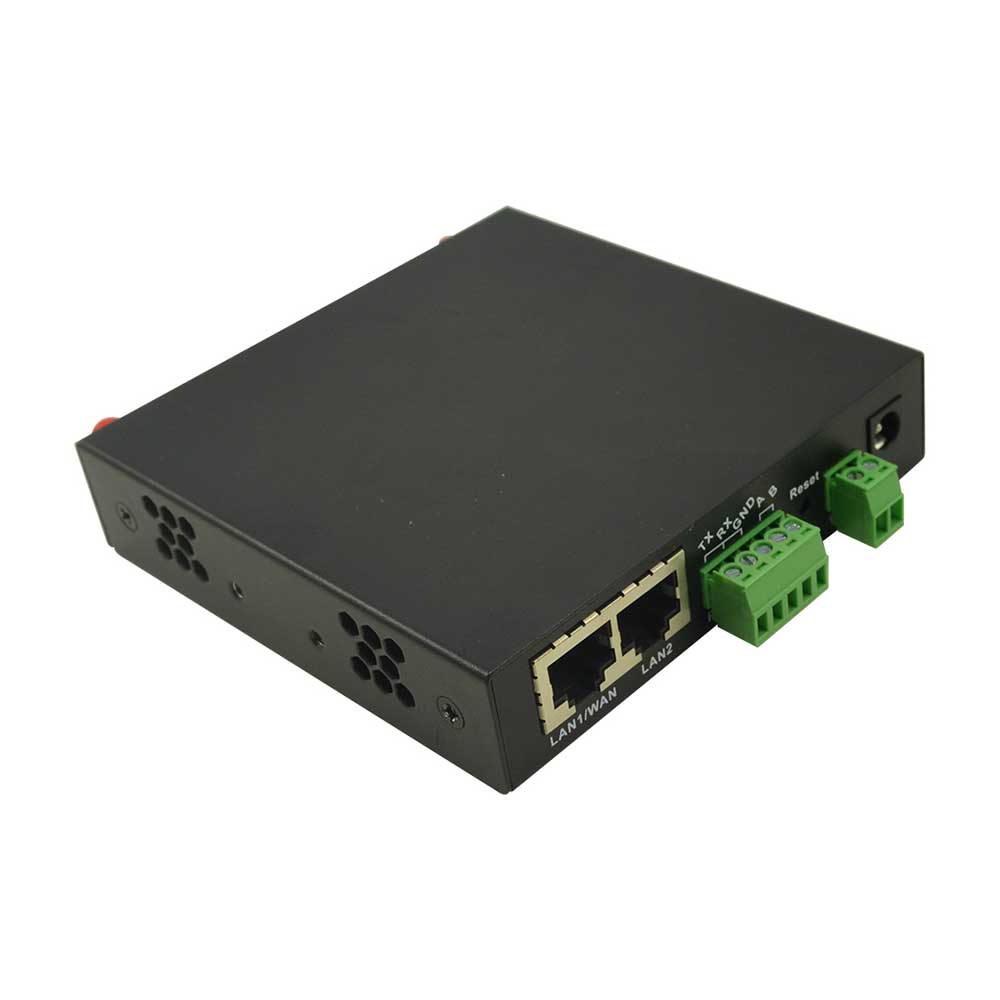

LAN Port | TWO( 10/100 Mbps Ethernet ports (RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection) |
Console Port | One（5 Pin3.5mm distance seat，1 way RS232 / 1 wayRS485） |

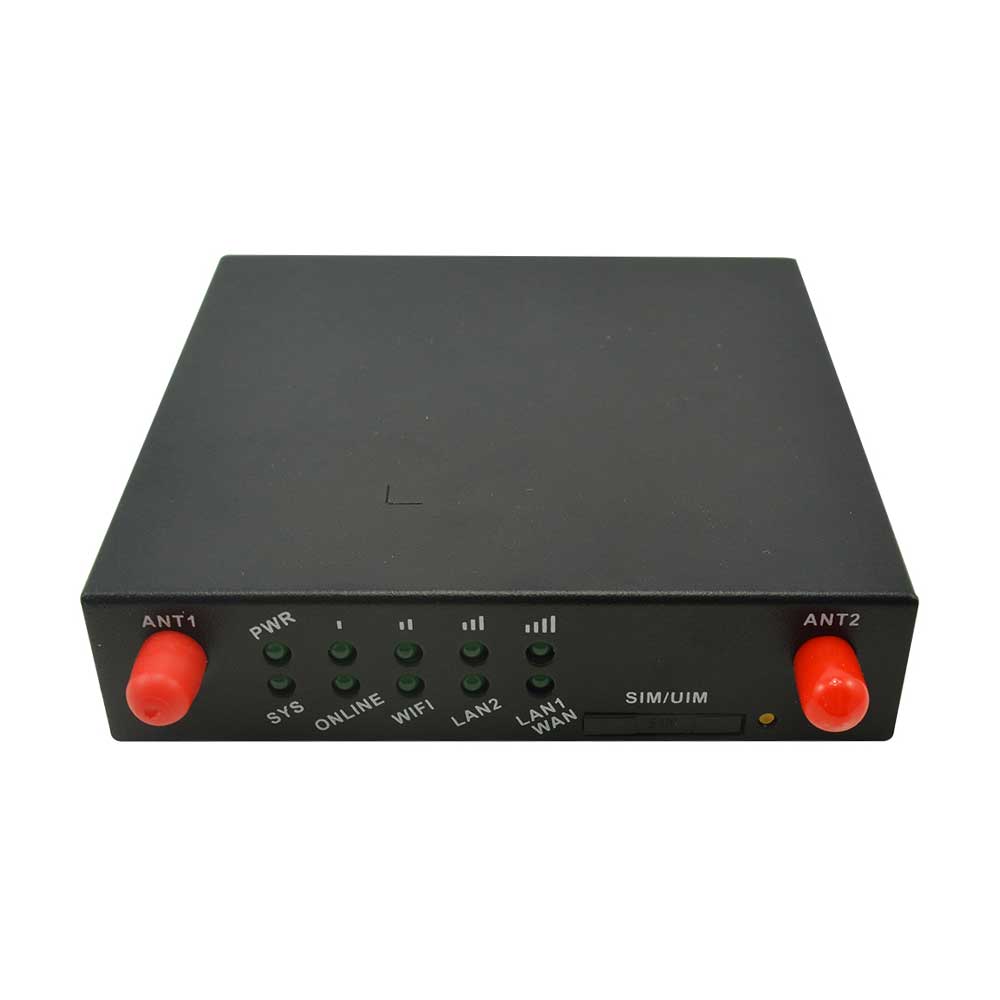

Indicator | "Power",“System”, “Link/ACT”,"Online"，“WIFI”,"Signal Strength" |
Antenna port | Cellular: Standard SMA female interface, 50 ohm WIFI: Standard SMA male interface, 50 ohm |

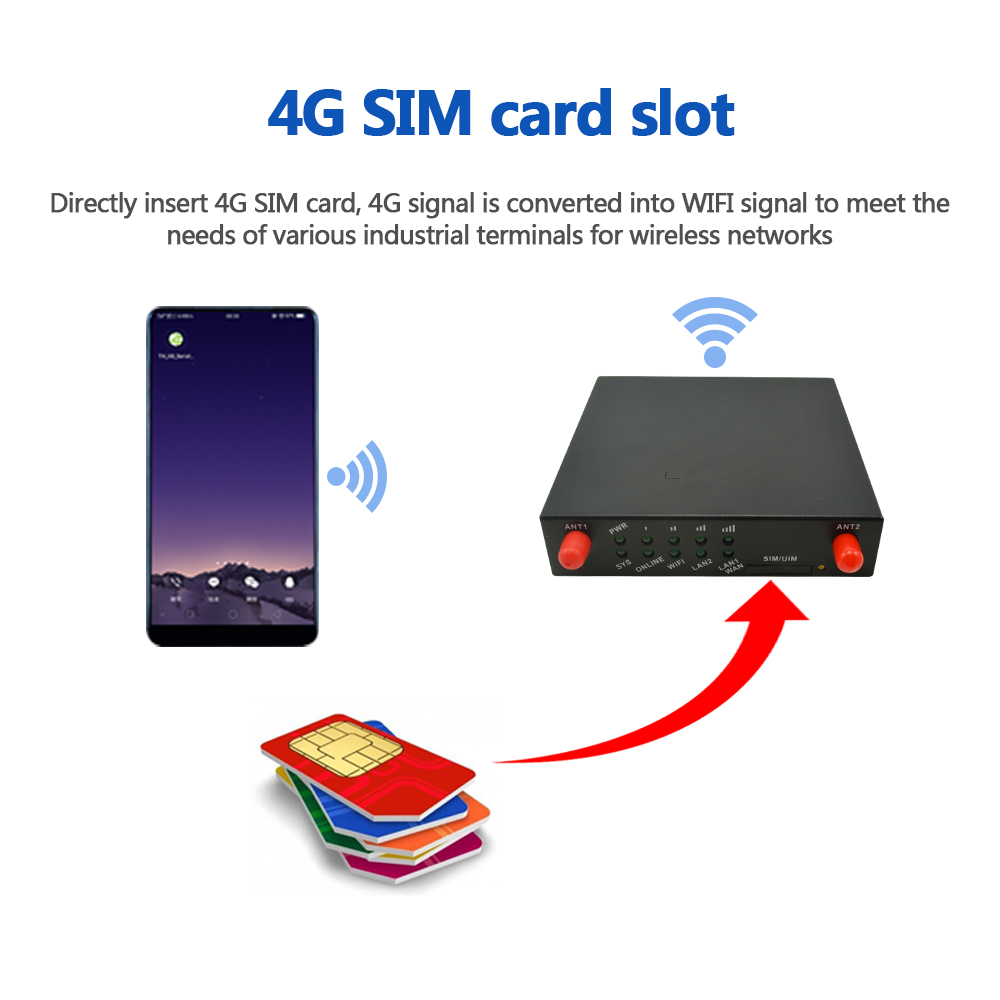

SIM/UIM port | One Standard 3V/1.8V user card interface, 15KV ESD protection |
Reset port | One Restore the router to its original factory default settings |
Power | DC 12V/1.5A |
Power range | DC 5~35V |
Consumption | <310mA (12V) |
Housing | Iron, providing IP30 protection |
Dimension | 100x98x23mm |
Operating Temperature | -35~+75ºC |
Storage Temperature | -40~+85ºC |
Operating Humidity | 95% (unfreezing) |

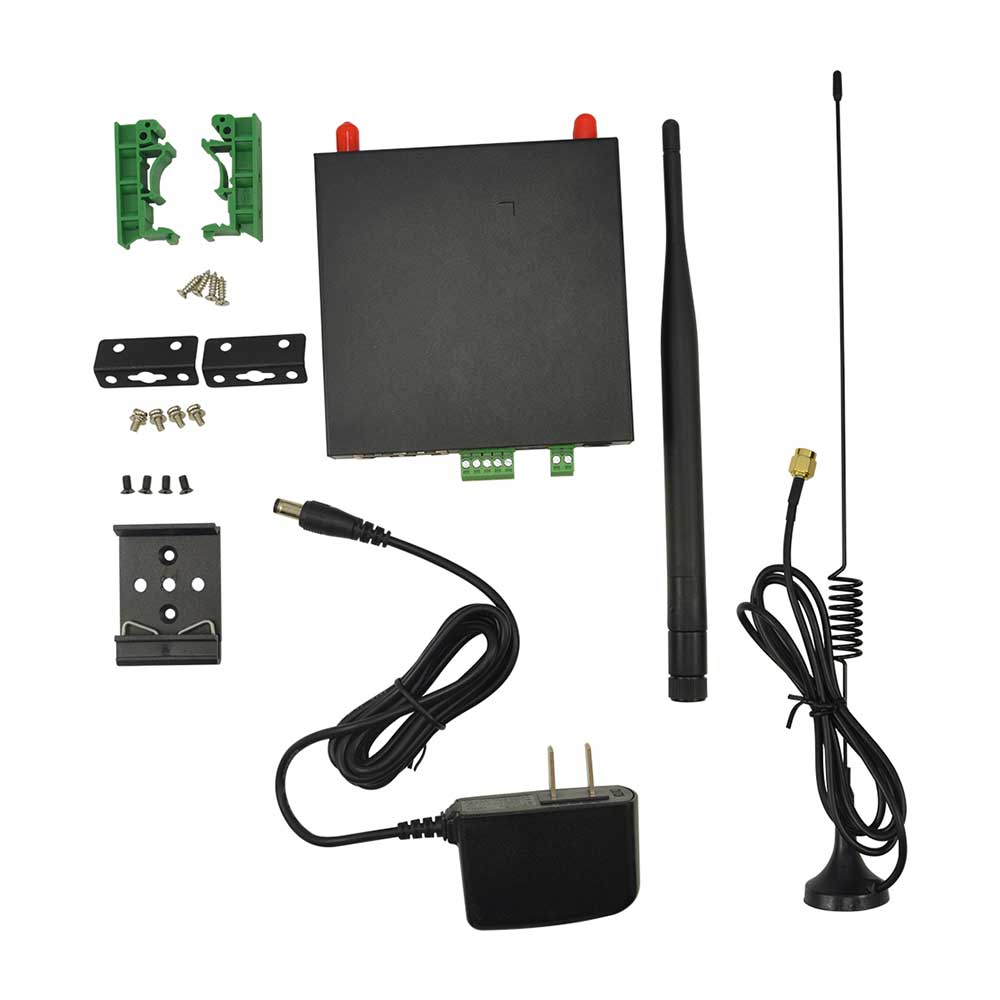

Packing&Shipping
