- Feature:Selective Calls/Group Calls
- Advantages:WIFI
- Weight:282g
- Working Temperature:-30*C to +75*C
- Working Voltage:3.3V~4.2V(Standard 3.8V)
- Working Current:250mA @ WCDMA 220mA @ GSM
- Peak Current:0.8A
- WIFI:IEEE802.11
- Battery Capacity:3.63V 5200mAh
- GPS Positioning:1.57542GH
- Certification:ce
- Type:Handheld
- Place of Origin:CN;FUJ
- Brand Name:TESUNHO
- Model Number:TH-518
- Dimensions:38(H)*60(W)*135(L)mm
- Frequency Range:WCDMA/GSM
- Storage Channel:Group
- Talk Range:All Over The World

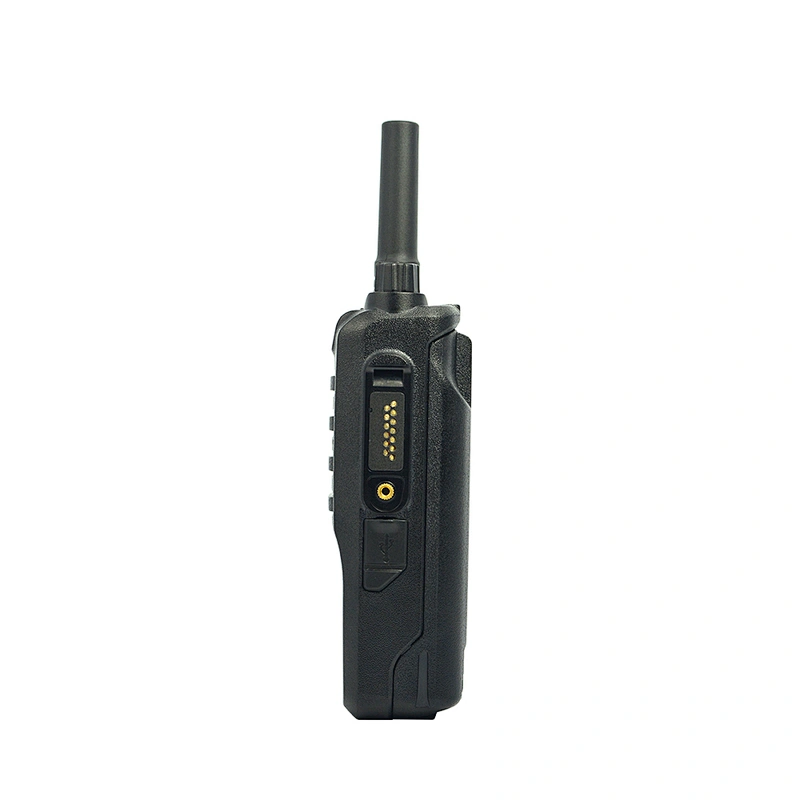

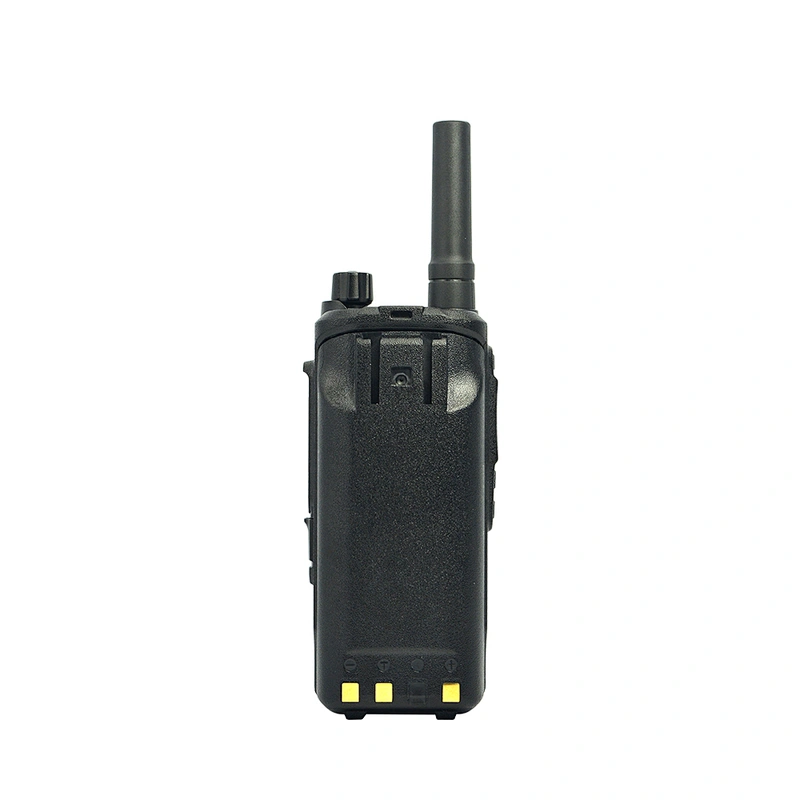

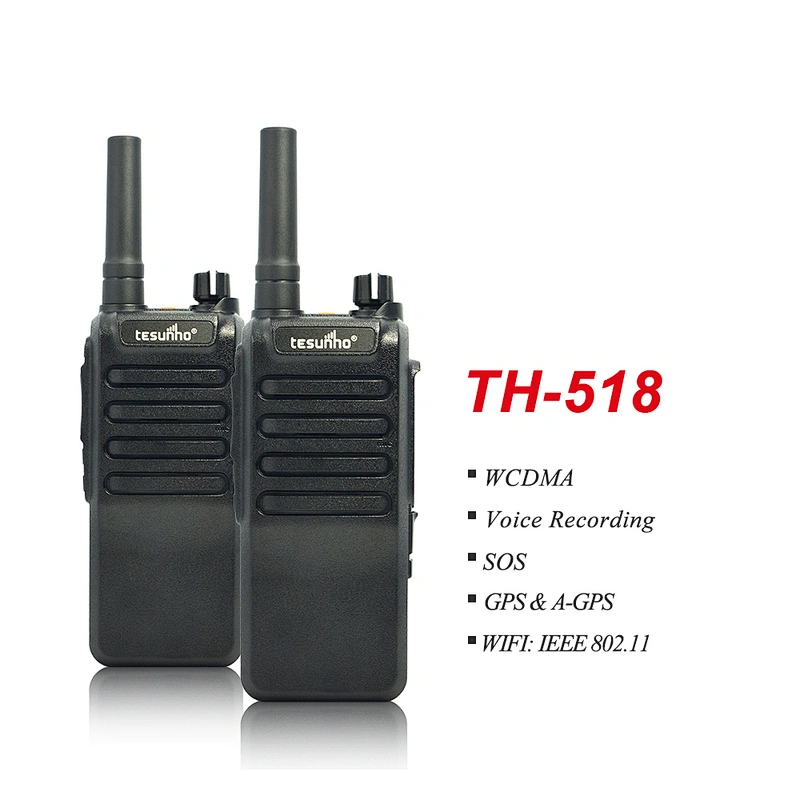

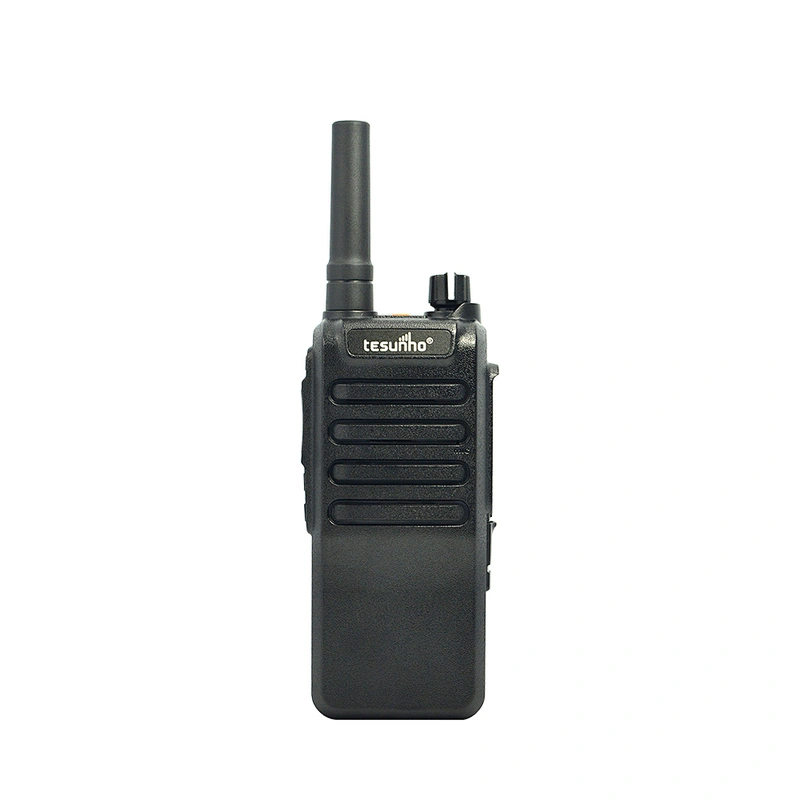

Tesunho Wifi WCDMA Android 2 Way Radio With CE Certificate TH-518
Main Features:
TH-518 is a robust walky talky with standard American English prompt. Wifi function allows you enjoy the free calls.
1. SOS (Alarm button)
2. GPS Function
3. Support 3G/2G WIFI
4. Large Capacity (3.7V 5000mAh)
5. Quick charger – 3 hours fully charged
6. Support Group Call, P2P Call, Quick Call, Emergency Call
Application:
- Unique for:Security, Construction, Industry, Commercial use,Indoor Use.
- Popular for:Airport, Railway, Army, Government, Rescue, Police,Outdoor adventure, Logistics,Taxi,Truck, Camping, Travelling, Big shopping mall, Big Hotel, Outdoor Events, etc.
Main Function :GPS, SOS
Q:how to check last call on TH-518?
A:In Idle status, press the UP key to check the last call.
Specifications:
Type | Parameter Item | Specification |
Mechanical Properties | Model No. | TH-518 |
Dimension | 38(H)×60 (W)×135(L)mm | |
Weight | 282g | |
Working Temperature | -30℃ to + 75℃ | |
Basic Parameter | Working Voltage | 3.3V~4.2V (Standard 3.8V) |
Working Current | 250mA @ WCDMA 220mA @ GSM | |
Peak Current | 0.8A | |
RF Parameter | WCDMA | Band1: 2100MHz Band2: 1900MHz OR Band5: 850MHz Band8: 900MHz |
GSM | GSM/GPRS : 900/1800 MHz/850/1900 MHz | |
Maximum Output power | WCDMA: 24 +1/-3dBm (Power Class 3) GSM850/900: 33±2dBm(Power Class 4) GSM1800/1900: 30±2dBm(Power Class 1) | |
Receiving Sensitivity | WCDMA 900:≤-108 dBm; WCDMA 2100:≤-109 dBm; GSM850/900/1800/1900 : ≤-106 dBm | |
GPS | GPS | GPS Positioning,1.57542GHz |
Sensitivity | Catch -144dBm, Track -159dBm | |
Technology Standard | Data Speed Rate | GSM CS : UL 9.6kpbs / DL 9.6kpbs GPRS : Multi-slot Class 10 EDGE : Multi-slot Class 12 WCDMA CS : UL 64kpbs / DL 384kpbs WCDMA PS : UL 384kpbs / DL 384kpbs |
Protocol | HSDPA / WCDMA / EDGE / GPRS / GSM |
More parameters, please contact with us!
Certifications:

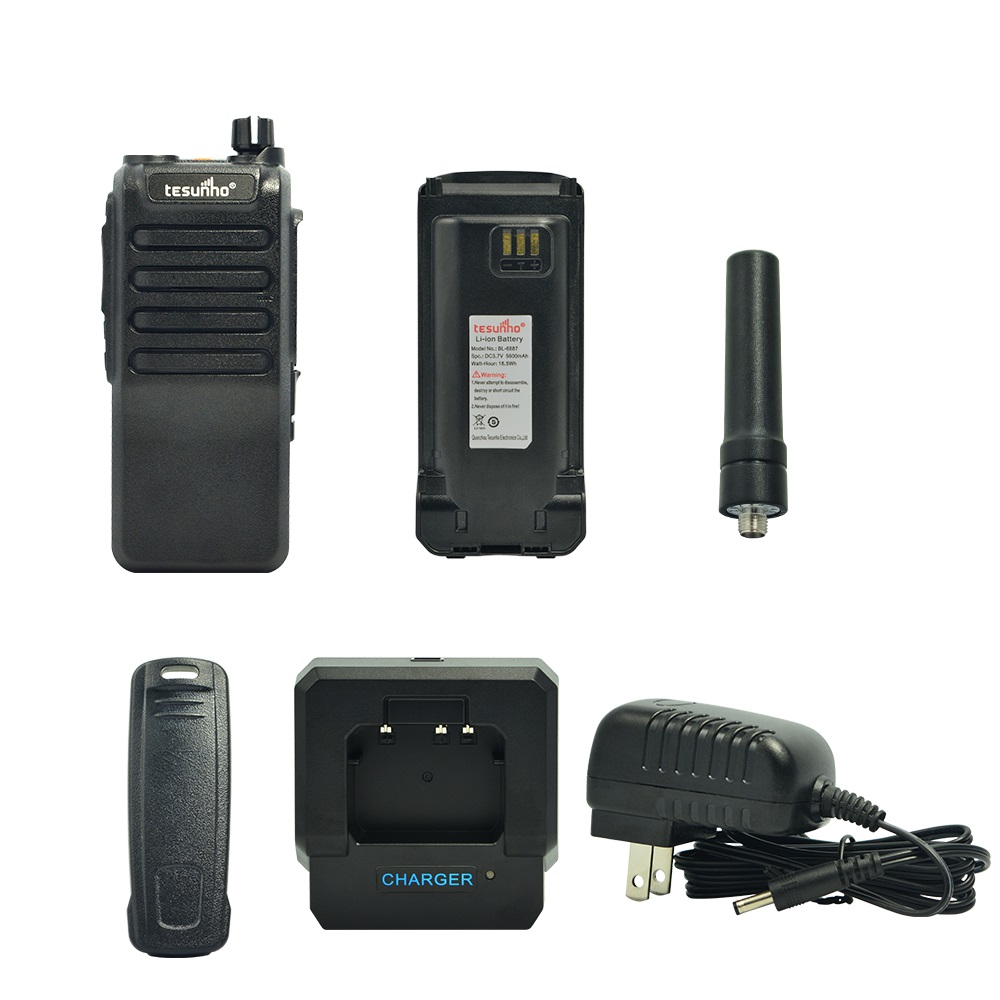

Standard Package for one piece:

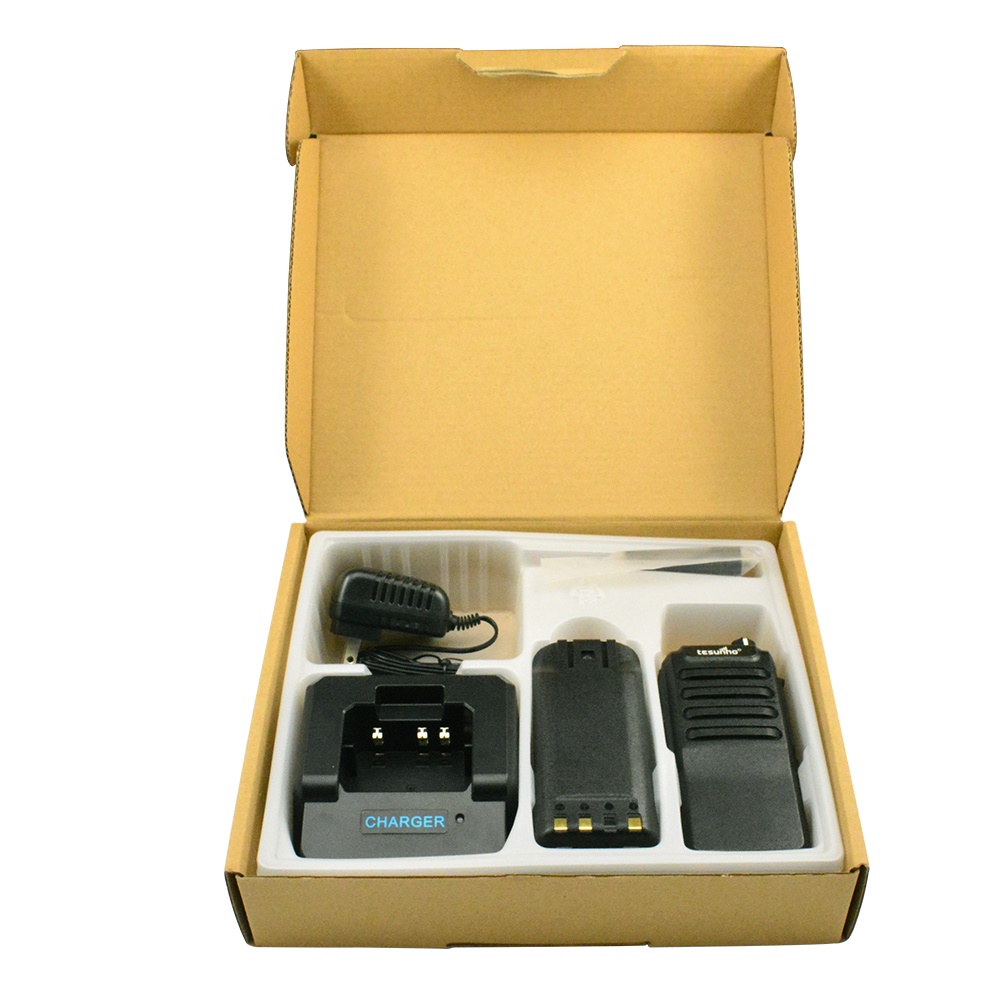

Standard Packing :
Packing Details:
DIMENSION & WEIGHT | ||||||
Item | One Unit | Standard Carton | Delivery Method | |||
Size(cm) | Gross Weight(kg) | Quantity(pcs) | Size(cm) | Gross Weight(kg) | ||
TH518 | 25.5*21.5*5.5 | 0.62 | 20 | 58*46*30 | 13.9 | DHL/FedEx/ TNT/EMS/By Air/By sea |
Lead Time:
Item | Quantity(pcs) | Production Lead Time |
Walkie talkie | 1-50 | 1-3 days |
50-200 | 2-5 days | |
200-500 | 2-10 days | |
500-1000 | 5-21 days |
Attention please: The date is given based on the normal production ability of Tesunho Electronics. Kindly contact us for more accurate data if you have special needs!
Payment Method:
Trade Assurance / Bank transfer / Western Union / MoneyGram / Paypal
Tesunho is aim to be the leading industrial walkie talkie solution supplier. So our service consists of 3 important parts:
1. Basic Warranty:
√ Replacement: Free new walkie talkie if it can not work at once it arrives.
√ Free maintenance and parts (without artificial faulty ) :
Item | Warranty |
Main Unit | 365 days |
Battery and Charger | 90 days |
Antenna and other parts | None |
2. Brand OEM service:
√ partly OEM service
√ complete OEM service
3. Technical ODM service:
we have abundant of experience on industrial needs customization
√ Rail way station communication device
√ Hotel inner wifi communication structure
√ Security Guard Patrol system with walkie talkie
√ Irrigation Patrol system
√ Intelligent Parking system
√ Logistics Management system
Why Us:
Click Picture to Learn More. Any of your inquiry is welcomed!
FAQ:
1.Are you a trade company or a manufacturer?
A: We are an R&D based creative and productive manufacturer specialized in CE FCC approved walkie talkie.
2.How POC Radio work?
A: It needed poc radio, sim card and real ptt account, contact us for more explaining
3.How to program radio?
A: It need real ptt account, real ptt account password, URL, Apn. Pls feel free to contact us, we will offer you programming instruction and guide one by one step.
4.What is your MOQ?
A: 2 piece for normal stock; different quantities for OEM or ODM,which is determined by different task workload. Kindly contact us for more information.
5.What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
A: You can get free sample by means of returning sample fund after regular order.
