- Size (Without Antenna):34 ( H )*60 ( W )*150 ( L )mm
- Frequency range:UMTS GSM
- Feature:Clear Loud Sound
- OS:zello android walkie talkie ptt
- Screen:2.4 LCD 240*32mm
- GPS:GPS, and A-GPS.
- WIFI:IEEE 802.11
- Bluetooth:V4.0

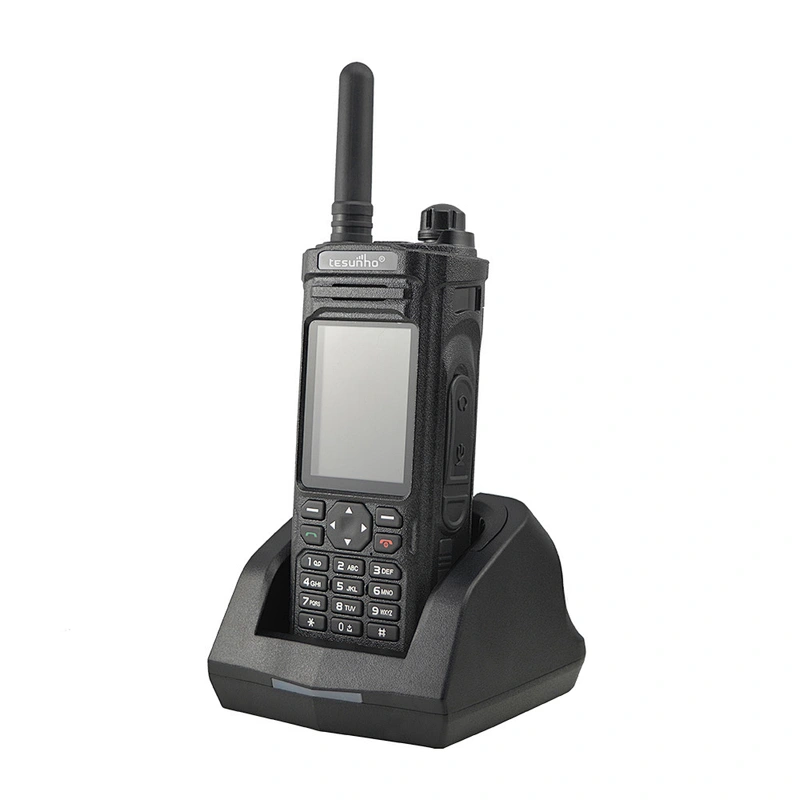

- Charger:Standard Micro USB charger and Charge cradle
- Battery:Ultra High Capacity Li-ion Battery
- Type:Handheld
- Place of Origin:CN;FUJ
- Brand Name:TESUNHO
- Model Number:TH-588
- Dimensions:34 (H )*60(W)*150 (L)mm
- Frequency Range:GSM 3G UMTS 2G
- Storage Channel:Unlimited
- Talk Range:Unlimited

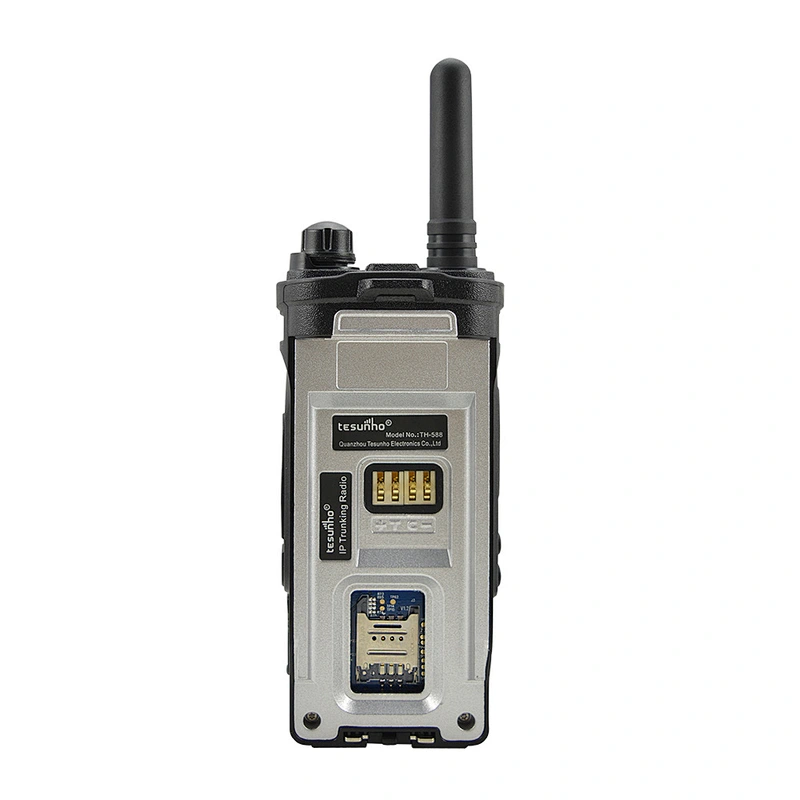

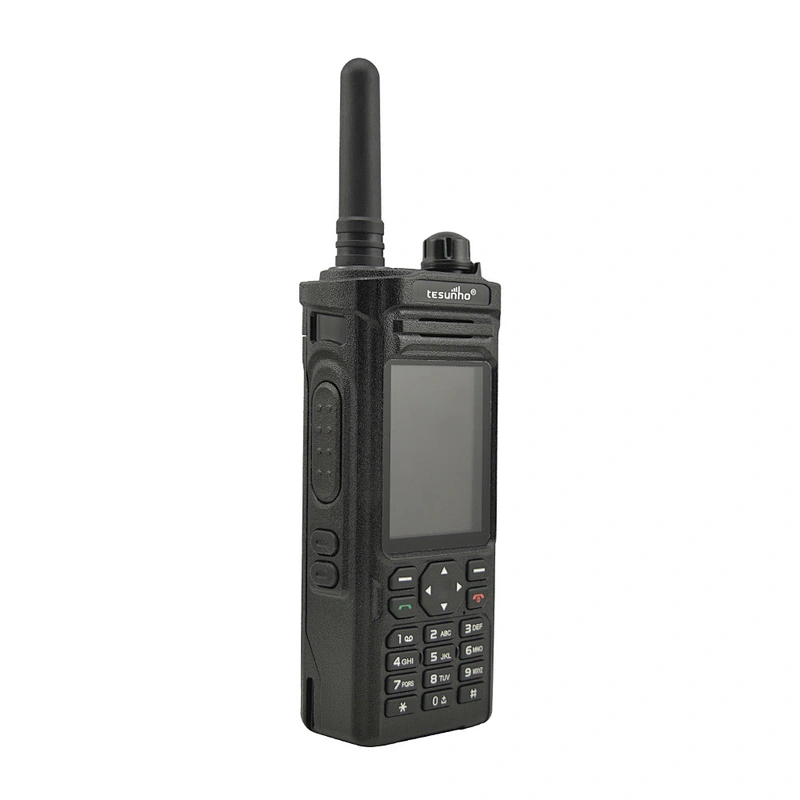

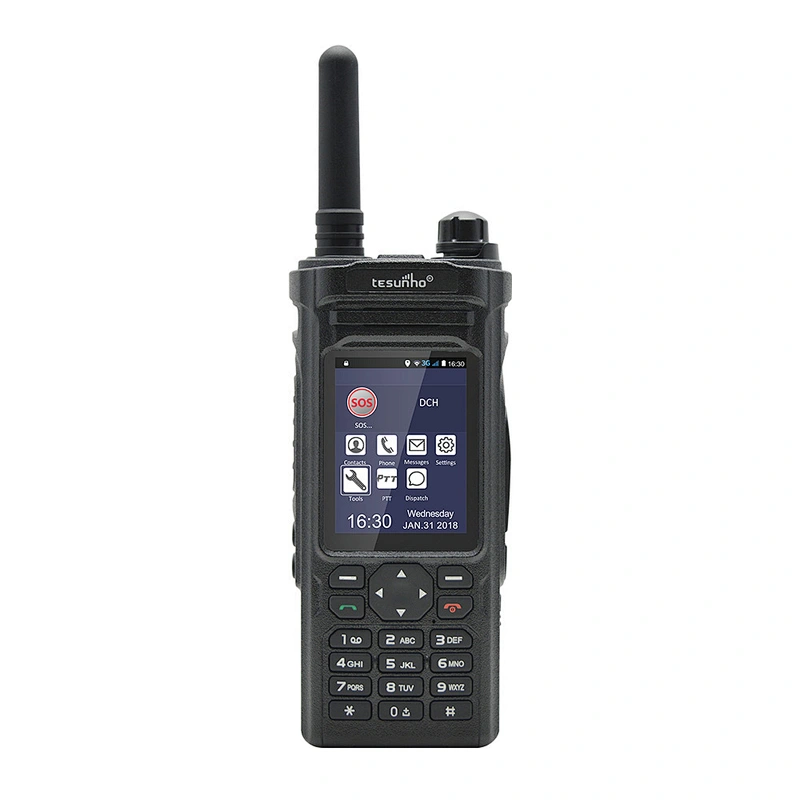

wifi IP zello android walkie talkie with sim card ptt phone 100 mile
Main Features:
TH588 is a leading edge PTT device powered by Android OS and designed for use in mission-critical applications. It is designed to completely combine the function of phone and smart-PTT function.
1. Mobile phone call
2. SMS
3. Bluetooth Built in
4. GPS Built in —— get the APRS information of the selected user
5. SOS ( ID Alarm)
6. Support 3G/2G WIFI
7. Support Group Call, Single Call, Selective Call Emergency Call
8. Unlimited Groups, Unlimited Group members
Application:
Unique for: Security Guard, Construction Site, Government, Bank, Hospital, Restaurant, Hotel, University, international Institutions.
Popular for: Airport, Railway, Army, Rescue, Police, Outdoor adventure, Logistics, Taxi, Truck, Camping, Travelling, Big shopping mall, Big Hotel, Outdoor Events, etc.

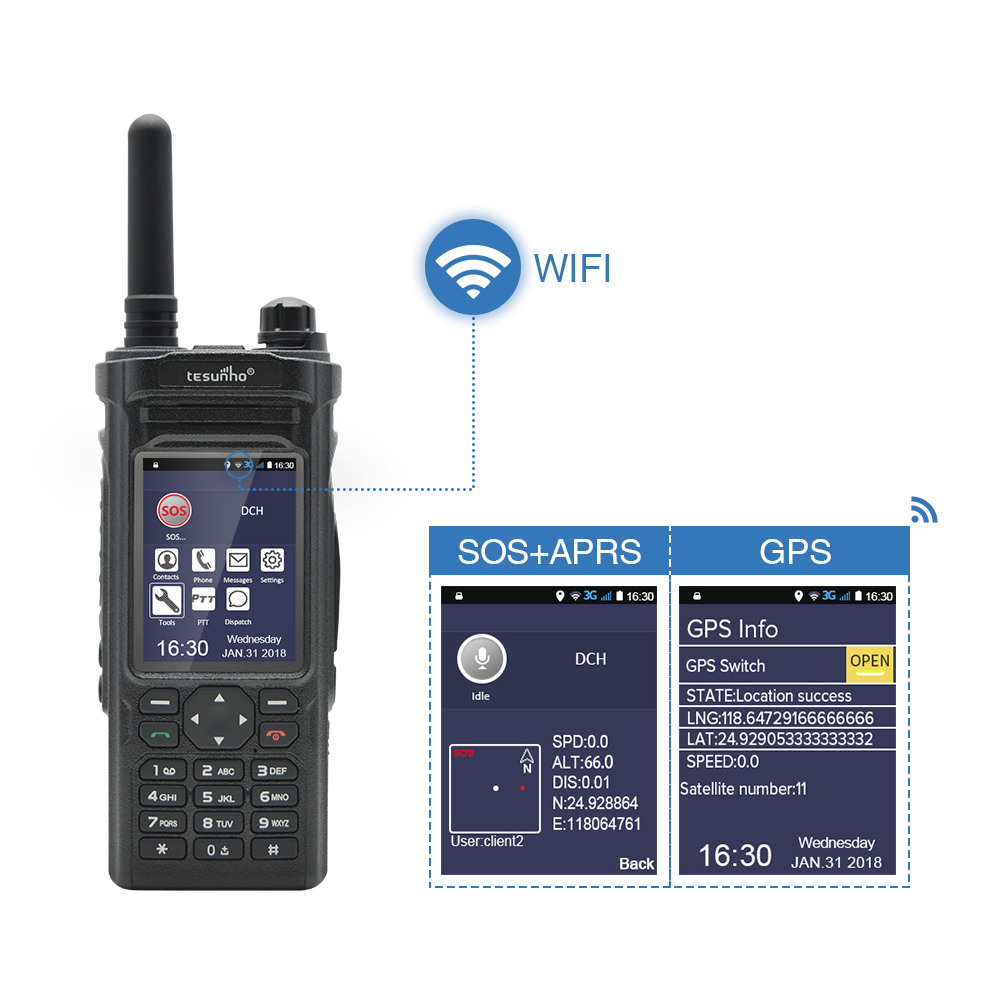

Main Function: APRS SOS ,WIFI
SOS
Long press Side Second key for emergency call, long press again to cancel. The transceiver will send the alarm signal and the user name to the dispatcher & the other members in your group.
APRS
(1) In idle status, short press the SOS key to get the APRS information of Last Call.
(2) In Choose Friend or Choose User menu, short press the SOS key to get the APRS information of the selected user.
Specifications:
| Quick Details | |
| Weight (Body) | 340g |
| Size | 34 ( H ) ×60 ( W ) ×150 ( L ) mm |
| LCD display | 2.4 240x320 Pixels |
| Battery capacity | 4.2V 4800mAh |
| Earphone jack | K type |
| Operation system | Android |
| Talk range | Unlimited |
| Wifi | Yes |
| Bluetooth | Yes |
| Frequency range | GSM900/1800MHz UMTS900/2100MHz OR GSM850/1900MHz UMTS850/2100MHz |
| Sim card type | Normal sim card |
| Data consumption | 2.88 Mega Byte per hour |
| Audio output power | Equal or more than 0.5w |
| Waterproof rate | IP54 |
| GPS | Yes |
| APRS | Yes |
| Group call | Yes |
| Private call | Yes |
| Friends call | Yes |
| Emergency Call | Yes (Panic button) |
| Phone Call | Yes |
| SMS | Yes |
| Update Software | Off-line |
More parameters, please contact with us!

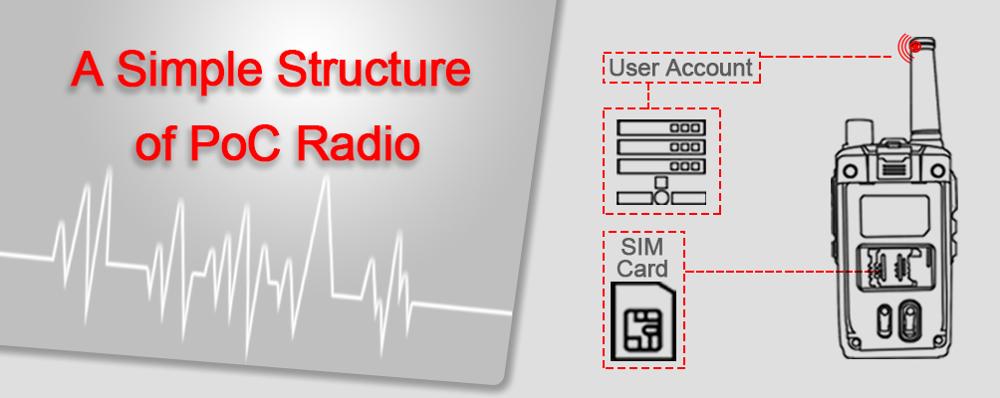

A simple Structure of PoC Radio
1. PoC radio need a radio, a sim card from local operator, a user account for server each radio for server service.
2. You can manage your own users including giving them talking rights, assigning groups, monitoring talking, following GPS and dispatching.
3. The management of users will be realize by platform. There are two kinds of platform:
company platform
agent platform.
Agent platform can give any dealer a company platform. A company platform can assign deparments or groups. All accounts can be reserved and activated anytime.
walkie talkie, two way radio, push to talk over cellular, gsm radio,wcdma radio,ptt
Certifications:

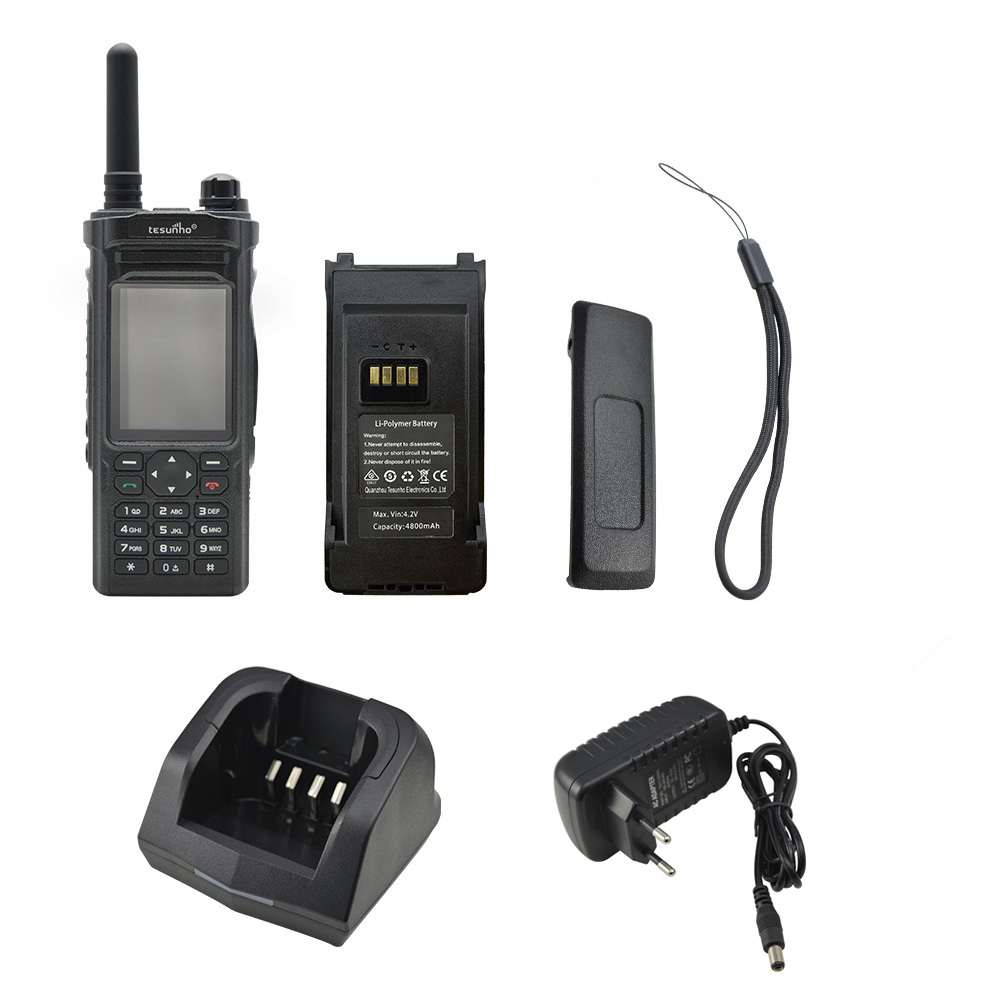

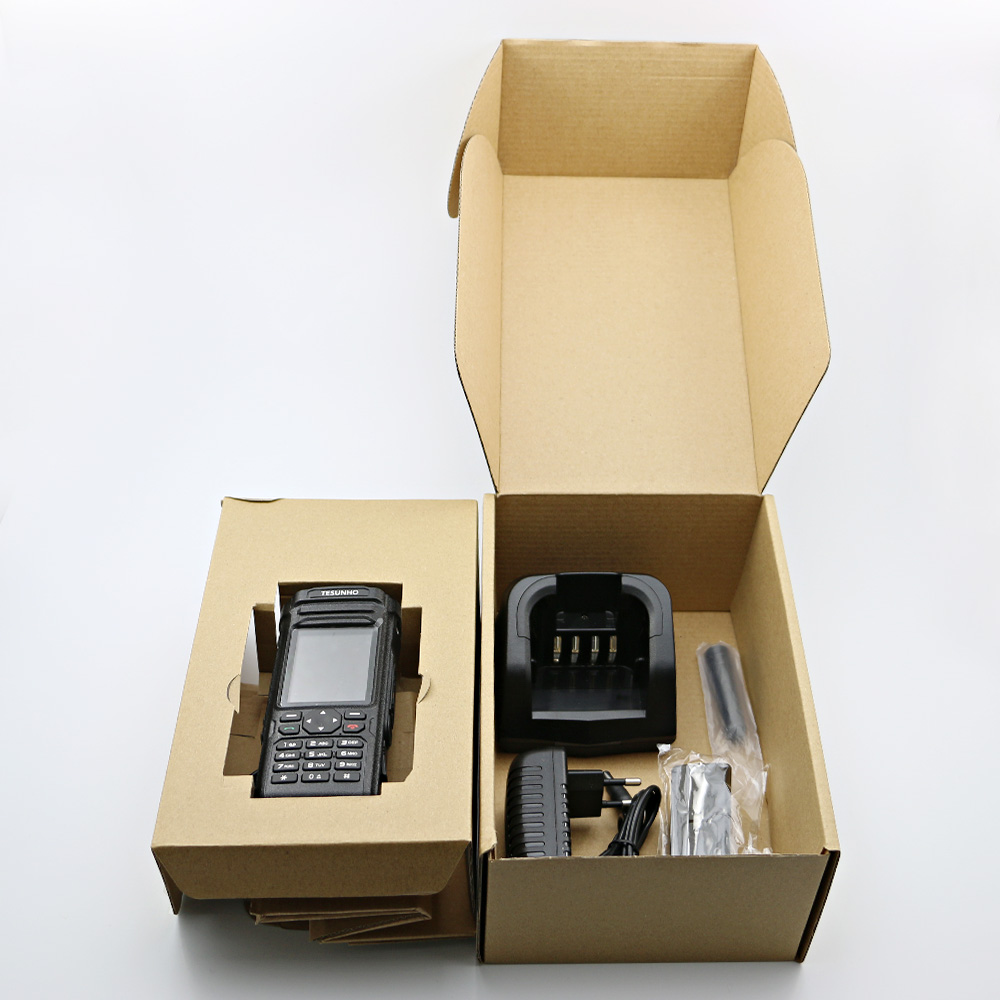

Standard Package for one piece:
Standard Packing :
Packing Details:
DIMENSION & WEIGHT | ||||||
Item | One Unit | Standard Carton | Delivery Method | |||
Size(cm) | Gross Weight(kg) | Quantity(pcs) | Size(cm) | Gross Weight(kg) | ||
TH588 | 23.4*15.8*9.0 | 0.76 | 20 | 50*49*37 | 16.54 | DHL/FedEx/UPS/TNT /EMS/By Air/By Sea |
- Attention please: The date is given based on the normal production ability of
Item | Quantity(pcs) | Production Lead Time |
walkie talkie | 1-50 | 1-3days |
50-200 | 2-5days | |
200-500 | 2-10days | |
500-1000 | 5-21days |
Attention please: The date is given based on the normal production ability of Tesunho Electronics. Kindly contact us for more accurate data if you have special needs!
Payment Method:
Trade Assurance / Bank transfer / Western Union / MoneyGram / Paypal
Our Services
Tesunho is aim to be the leading industrial walkie talkie solution supplier. So our service consists of 3 important parts:
1. Basic Warranty:
√ Replacement: Free new walkie talkie if it can not work at once it arrives.
√ Free maintenance and parts (without artificial faulty ) :
Item | Warranty |
Main Unit | 365 days |
Battery and Charger | 90 days |
Antenna and other parts | None |
√ Paid maintenance and parts: for artificial faulty
2. Brand OEM service:
√ partly OEM service
√ complete OEM service
3. Technical ODM service: we have abundant of experience on industrial needs customization
√ Rail way station communication device
√ Hotel inner wifi communication structure
√ Security Guard Patrol system with walkie talkie
√ Irrigation Patrol system
√ Intelligent Parking system
√ Logistics Management system
News:
Why Us:
Click Picture to Learn More. Any of your inquiry is welcomed!
1.Are you a trade company or a manufacturer?
A: We are an R&D based creative and productive manufacturer specialized in CE FCC approved walkie talkie.
2.What is your MOQ?
A:1 piece for normal stock; different quantities for OEM or ODM, which is determined by different task workload. Kindly contact us for details.
3.What is your payment terms?
A:30% deposit in advance and 70% balance before shipment.
4.Can you send free samples?
A: You can get free sample by means of returning sample fund after regular order.
