- Size:42(H)*60(W)*110(L)mm
- GPS Platform:Tracking The Radio User
- Feature:Clear Loud Sound
- Feature 1:All Calls, Group Calls etc.
- Bright Flashlight Illumination:Yes
- Programmable Function Key:Yes
- Function Set Software:Yes
- Transmitting Ending Prompt:Yes
- Mini:Yes
- Battery:Ultra High Capacity Li-ion Battery
- Certification:FCC
- Certification:ce
- Type:Handheld
- Place of Origin:CN;FUJ
- Brand Name:TESUNHO
- Model Number:TH-282
- Dimensions:42(H)*60(W)*110(L)mm
- Frequency Range:LTE/WCDMA/GSM
- Storage Channel:Groups
- Talk Range:Unlimited

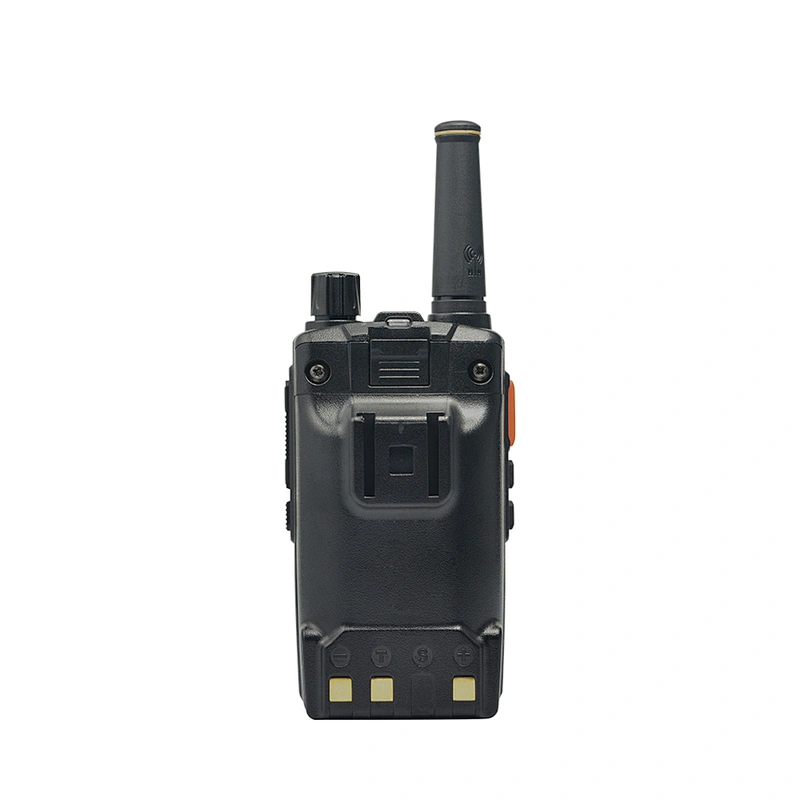

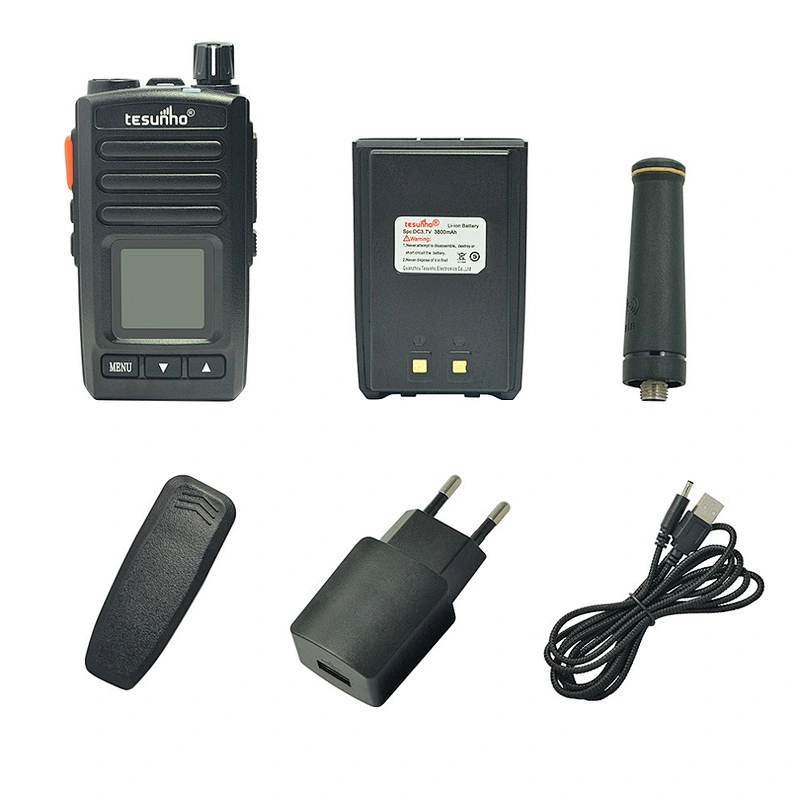

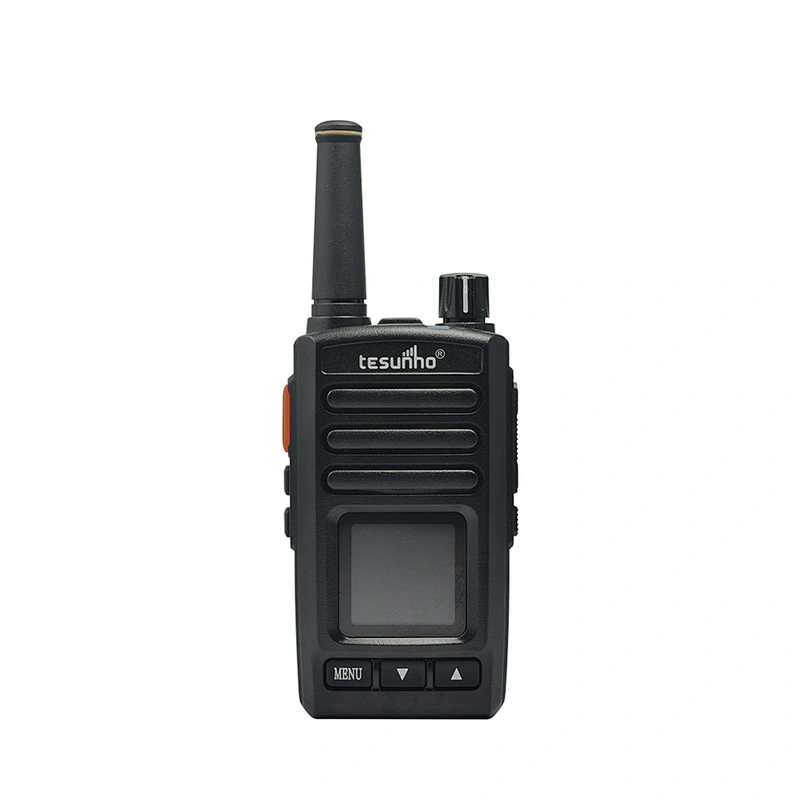

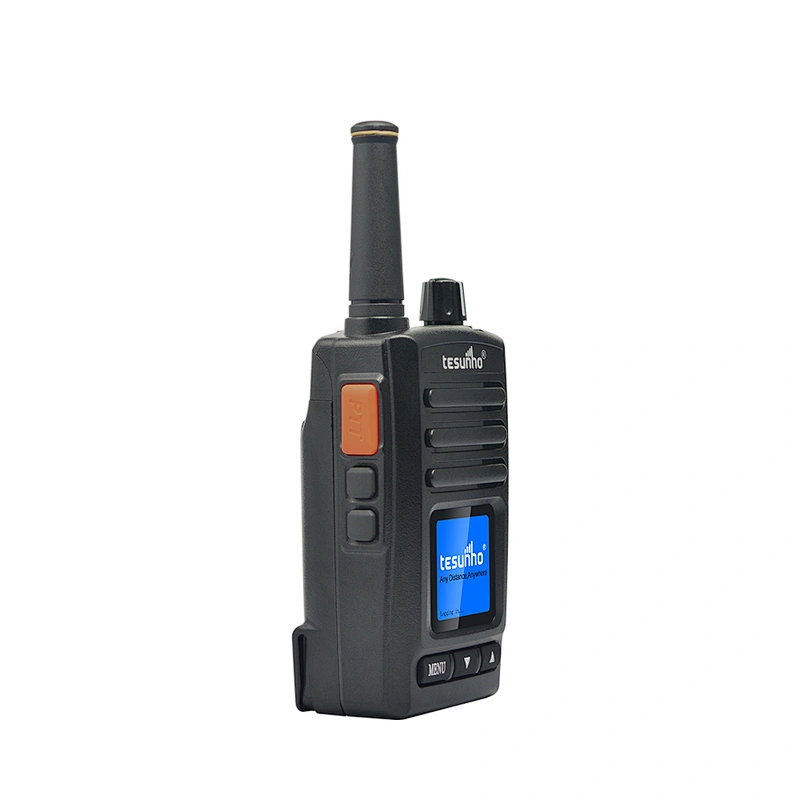

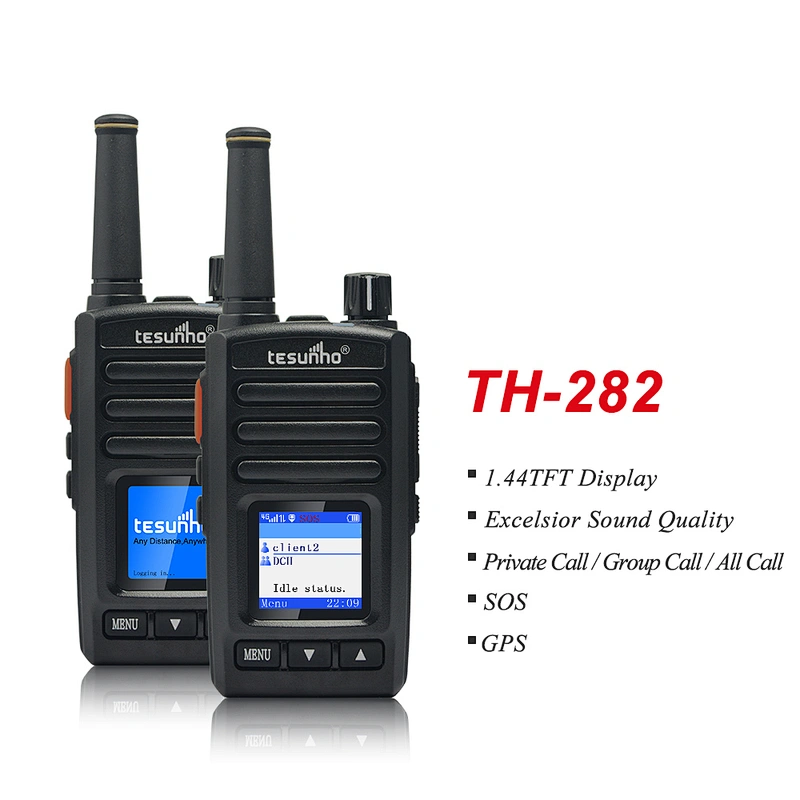

Tesunho Mini SIM Card Walkie Talkie GPS LTE TH-282
TH-282 is a mini version PoC radio, popular in professional applications. Real-time positioning to realize timely reinforcement/rescue for any emergency situations.
Main Features :
1. It has small size, easy for users to carry
2. It has LCD display with listing menu, simple and clear for start-learners
3. It can receive dispatcher message
4. SOS – Emergency button is critical feature for two way radio
5. GPS optional: With the help of dispatcher, user can check other partner's radio location
6. Last call function, allow you to repeat call if you missed it
7. Built-in charger and desk charger for options
8. Special accessory like 6 way multi-unit charger available
Application :
Unique for: Camping, Travelling, Commercial use, Shopping mall,Big Hotel, Outdoor Events.
Popular for: Security, Construction, Industry, Logistics, Taxi, Truck, Airport, Railway, Army, Government, Rescue, Police, Outdoor adventure, etc.
Specifications:
Type | Parameter Item | Specification |
Mechanical Properties | Model No. | TM-282 |
Dimension | 42(H)×60(W)×110(L)mm | |
Weight | 246g | |
Working Temperature | -30℃ to + 75℃ | |
Basic Parameter | Working Voltage | 3.3V~4.2V (Standard 3.8V) |
Working Current | 500mA@LTE 200mA@WCDMA 220mA@GSM | |
Peak Current | 2A | |
RF Parameter | LTE FDD (Have multiple versions of LTE Bands for different countries) | Band1: 2100MHz Band3: 1800MHz Band7: 2600MHz Band8:900MHz Band20: 800MHz |
WCDMA | Band1 : 2100MHz Band2 : 1900MHz OR Band8: 900MHz Band5: 850MHz | |
GSM | GSM/GPRS : 900/1800 MHz OR | |
Maximum Output power | LTE:23 ± 2.7dBm(Power Class 3) WCDMA:24 + 1/-3dBm(Power Class 3) GSM900:33 ± 2dBm(Power Class 4) GSM1800:30 ± 2dBm(Power Class 1) | |
Receiving Sensitivity | LTE FDD≤-100dBm; WCDMA850: ≤-108dBm; WCDMA1900: ≤-109dBm; GSM 900/1800: ≤-106dBm | |
GPS | GPS | GPS Positioning,1.57542GHz |
Sensitivity | Catch -144dBm, Track -159dBm | |
Technology Standard | Data Speed Rate | LTE FDD-Uplink 50 Mbps / Downlink 150 Mbps WCDMA-Uplink 5.76 Mbps / Downlink 42 Mbps EDGE-Uplink 236.8Kbps / Downlink2.8 Mbps GPRS-Uplink85.6Kbps / Downlink85.6 Mbps |
Protocol | Support embedded TCP&UDP Protocols; Support Protocols PAP and CHAP used for PPP conncetion; 3GPP TS 27.005,27.007 |
More parameters, please contact with us!
Certifications:

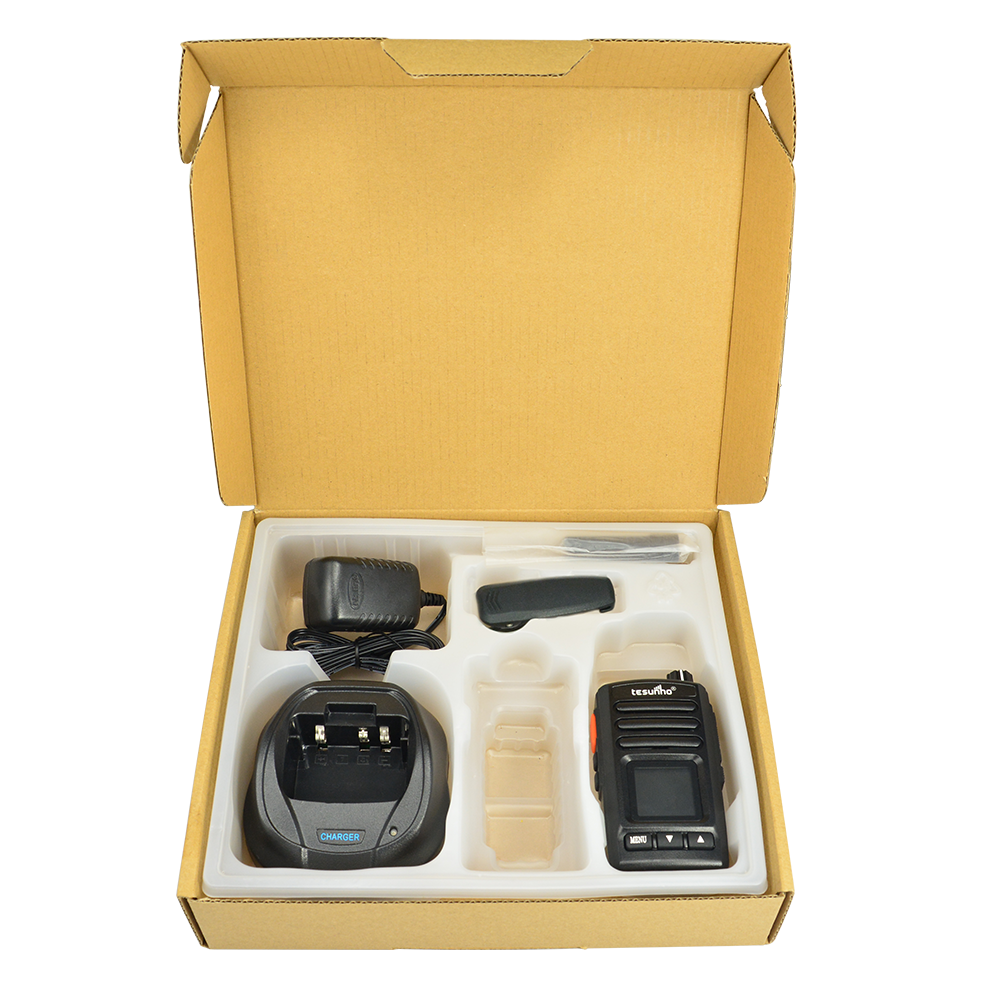

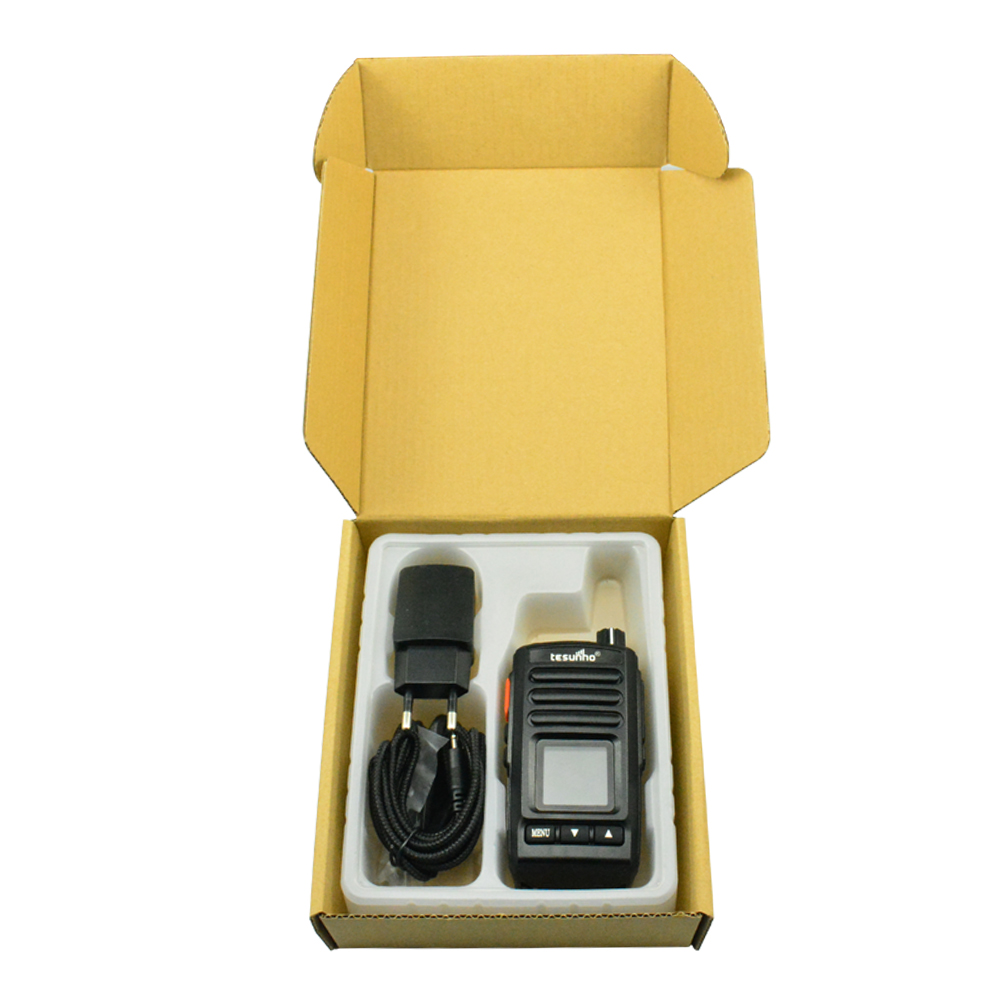

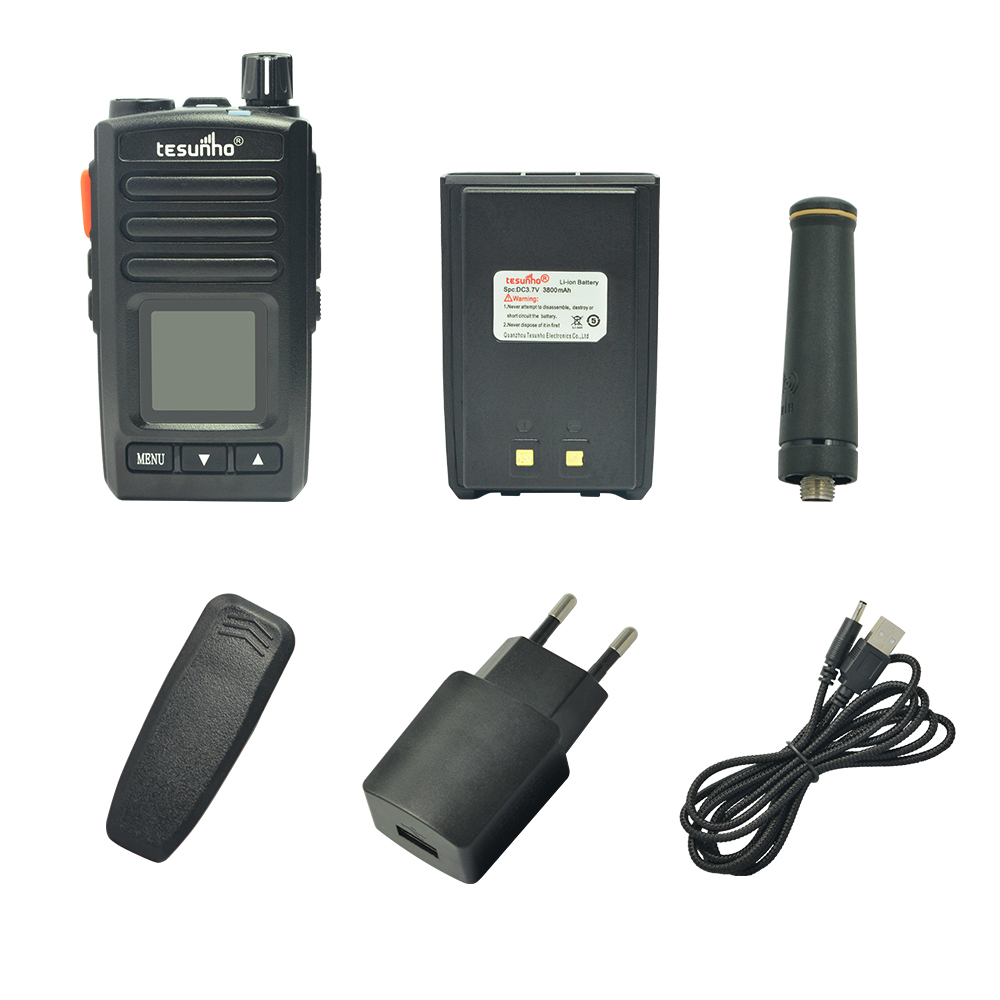

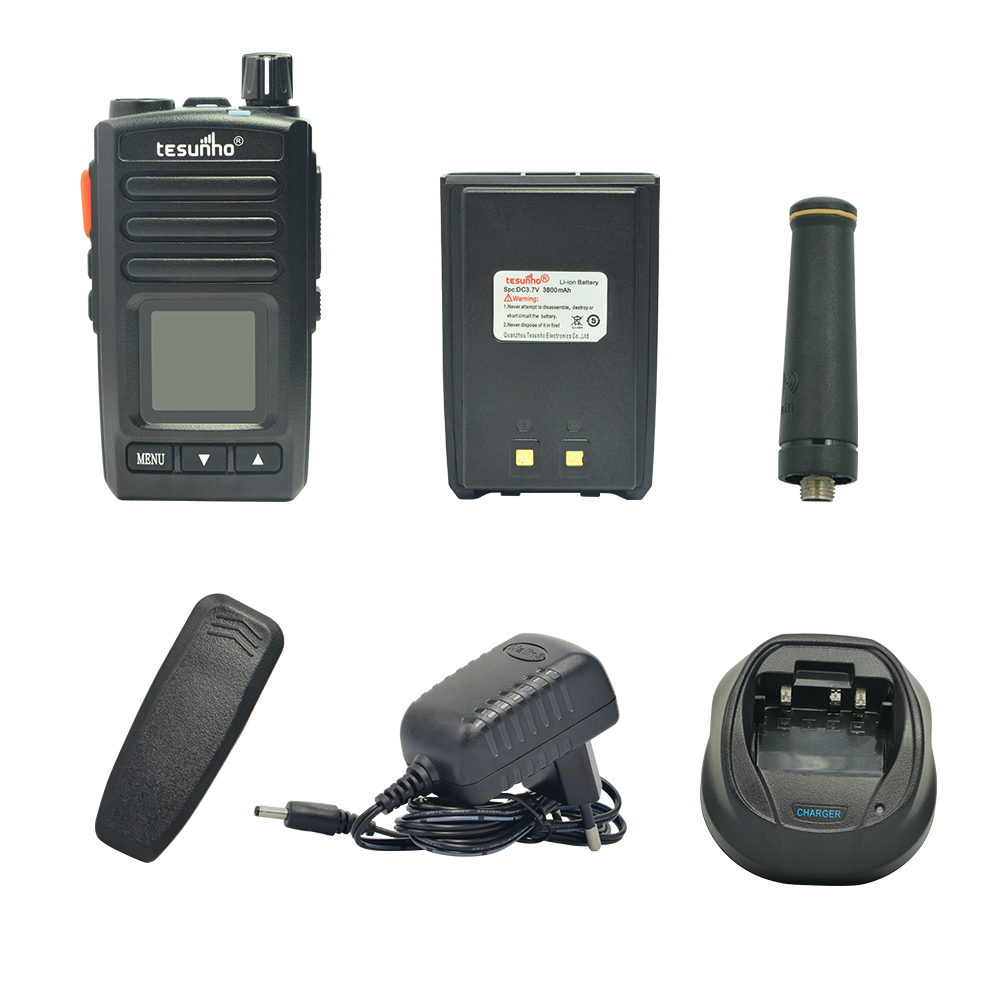

Standard Package for one piece:
Standard Packing :
Packing Details:
DIMENSION & WEIGHT | ||||||
Item | One Unit | Standard Carton | Delivery Method | |||
Size(cm) | Gross Weight(kg) | Quantity(pcs) | Size(cm) | Gross Weight(kg) | ||
TH-282 | 15.5*17.5*6 | 0.42 | 30 | 49*38*32 | 13.8 | DHL/FedEx/TNT/ EMS/By Air/By sea |
21.5*25.5*5.5 | 0.54 | 20 | 37*34*32 | 12.3 | DHL/FedEx/TNT/ EMS/By Air/By sea | |
Lead Time:
Item | Quantity(pcs) | Production Lead Time |
Walkie talkie | 1-50 | 1-3 days |
50-200 | 2-5 days | |
200-500 | 2-10 days | |
500-1000 | 5-21 days |
Attention please: The date is given based on the normal production ability of Tesunho Electronics. Kindly contact us for more accurate data if you have special needs!
Payment Method:
Trade Assurance / Bank transfer / Western Union / MoneyGram / Paypal
Tesunho is aim to be the leading industrial walkie talkie solution supplier. So our service consists of 3 important parts:
1. Basic Warranty:
√ Replacement: Free new walkie talkie if it can not work at once it arrives.
√ Free maintenance and parts (without artificial faulty ) :
Item | Warranty |
Main Unit | 365 days |
Battery and Charger | 90 days |
Antenna and other parts | None |
2. Brand OEM service:
√ partly OEM service
√ complete OEM service
3. Technical ODM service:
we have abundant of experience on industrial needs customization
√ Rail way station communication device
√ Hotel inner wifi communication structure
√ Security Guard Patrol system with walkie talkie
√ Irrigation Patrol system
√ Intelligent Parking system
√ Logistics Management system
News:
Why Us:
Click Picture to Learn More. Any of your inquiry is welcomed!
FAQ:
1.Are you a trade company or a manufacturer?
A: We are an R&D based creative and productive manufacturer specialized in CE FCC approved walkie talkie.
2.How POC Radio work?
A: It needed poc radio, sim card and real ptt account, contact us for more explaining
3.How to program radio?
A: It need real ptt account, real ptt account password, URL, Apn. Pls feel free to contact us, we will offer you programming instruction and guide one by one step.
4.What is your MOQ?
A: 2 piece for normal stock; different quantities for OEM or ODM,which is determined by different task workload. Kindly contact us for more information.
5.What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
A: You can get free sample by means of returning sample fund after regular order.
