- GPS Platform:Tracking The Radio User
- Band selection:LTE 3G
- Advantages:GPS Satellite Plsi,Flashight,TOT
- Feature:Selective Calls,Group Calls and All Calls
- (U)SIM/SIMU:Standard SIM Card
- Intelligent Charger:12V/24V
- Operating Voltage:3.3V~4.2V (Standard 3.8V)
- SOS Function:Panic Button To Active The Global Alarm
- Weight:300G
- Certification:ce
- Type:Handheld
- Place of Origin:CN;FUJ
- Brand Name:TESUNHO
- Model Number:TH-681
- Dimensions:38 ( H )*58( W )*135( L ) mm
- Frequency Range:LTE/WCDMA/GSM
- Storage Channel:Groups
- Talk Range:Unlimited(Global)

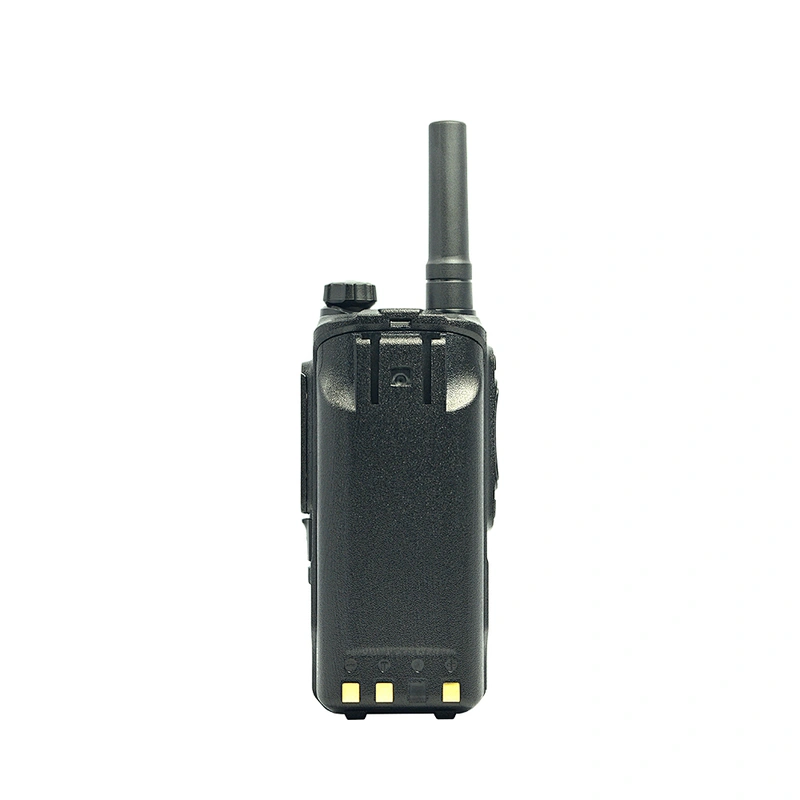

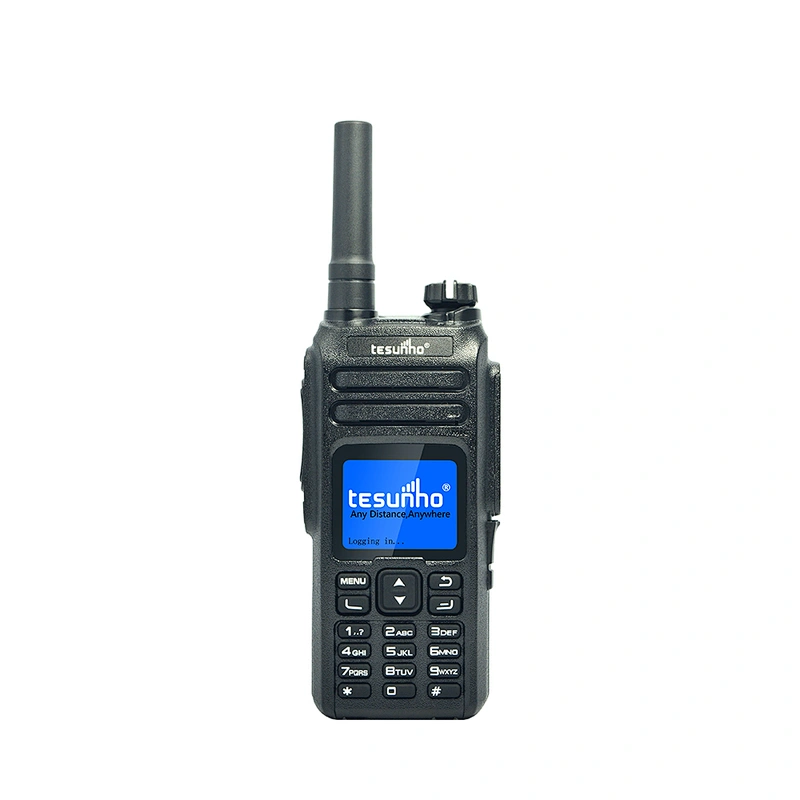

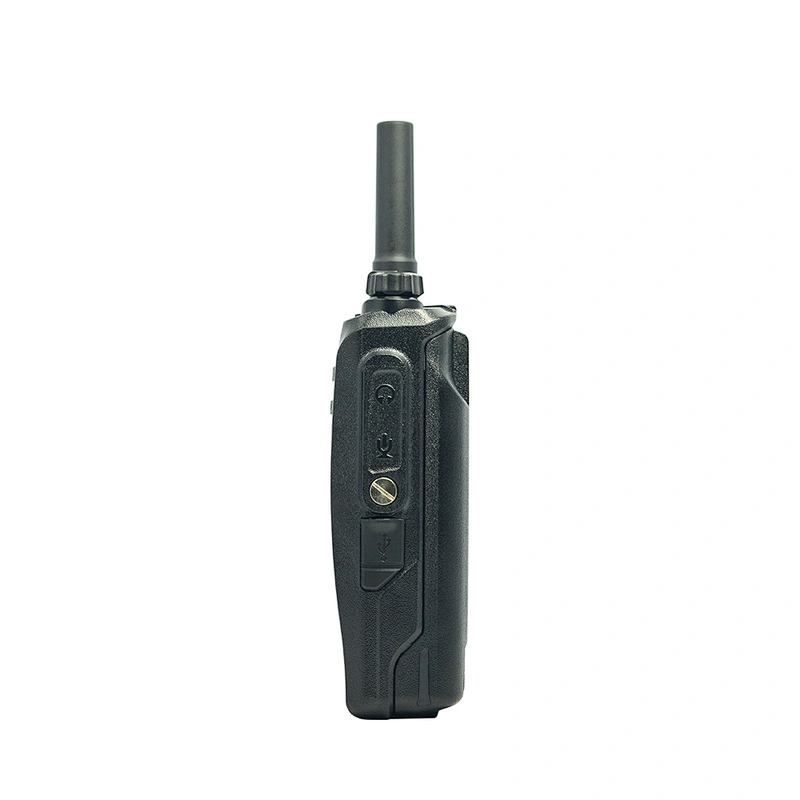

Tesunho TH-681 Secure Radio Communication 4G LTE Police
Main Features:
1. SOS/APRS (emergency button)
2. GPS function
3. Display the users/calling/last caller information
4. Can receive dispatcher message
5. Supports 4G/3G/2G network
6. Supports group call, p2p call, quick call, emergency call
7. Quick charger-3 hours fully charged
Application:
Unique for: Security, Construction, Industry, Commercial use.
Popular for: Airport, Railway, Army, Government, Rescue, Police, Outdoor adventure, Logistics, Taxi, Truck, Camping, Travelling, Big shopping mall, Big Hotel, Outdoor Events, etc
Main Function : GPS, APRS, Last Call
Q: How to make a Quick Call?
A: 1) Add three numbers in front of user name when creating users on platform.
2) Under standby mode, press the first three numbers of the one you want to call to quick searching the user. Then press PTT to call.
Specifications:
Type | Parameter Item | Specification |
Mechanical Properties | Model No. | TH-681 |
Dimension | 38(H)×58(W)×135(L)mm | |
Weight | 305g | |
Working Temperature | -30℃ to + 75℃ | |
Basic Parameter | Working Voltage | 6.4V~8.4V (Standard 7.6V) |
Working Current | 500mA@LTE 200mA@WCDMA 220mA@GSM 1600mA @ Analog TX /Repeat | |
Peak Current | 1.8A | |
RF Parameter | LTE FDD (Have multiple versions of LTE Bands for different countries) | Band1: 2100MHz Band3: 1800MHz Band7: 2600MHz Band8: 900MHz Band20: 800MHz |
WCDMA | Band1 : 2100MHz Band2 : 1900MHz OR Band8 : 900MHz Band5 : 850MHz | |
GSM | GSM/GPRS : 900/1800 MHz | |
Maximum Output power | LTE:23 ± 2.7dBm(Power Class 3) WCDMA:24 + 1/-3dBm(Power Class 3) GSM900:33 ± 2dBm(Power Class 4) GSM1800:30 ± 2dBm(Power Class 1) | |
Receiving Sensitivity | LTE FDD≤ -100dBm; WCDMA900: ≤ -108dBm; WCDMA2100: ≤ -109dBm; GSM 900/1800: ≤ -106dBm | |
GPS | GPS | GPS Positioning,1.57542GHz |
Sensitivity | Catch -144dBm, Track -159dBm | |
Technology Standard |
Data Speed Rate | LTE FDD-Uplink 50 Mbps / Downlink 150 Mbps WCDMA-Uplink 5.76 Mbps / Downlink 42 Mbps EDGE-Uplink 236.8Kbps / Downlink2.8 Mbps GPRS-Uplink85.6Kbps / Downlink85.6 Mbps |
Protocol | Support embedded TCP&UDP Protocols; Support Protocols PAP and CHAP used for PPP conncetion; 3GPP TS 27.005,27.007 |
More parameters, please contact with us!
Certifications:

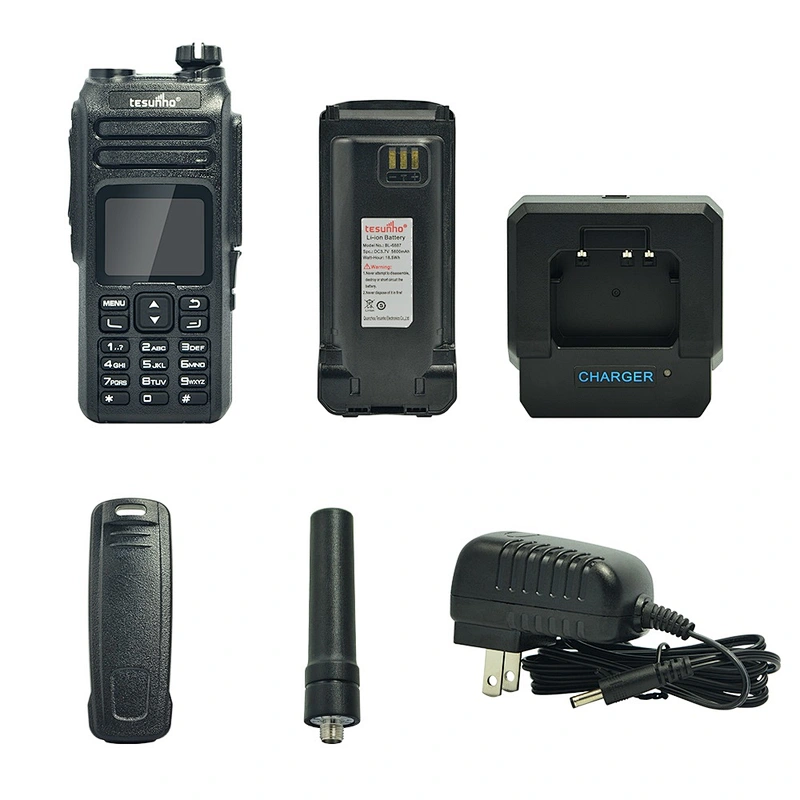

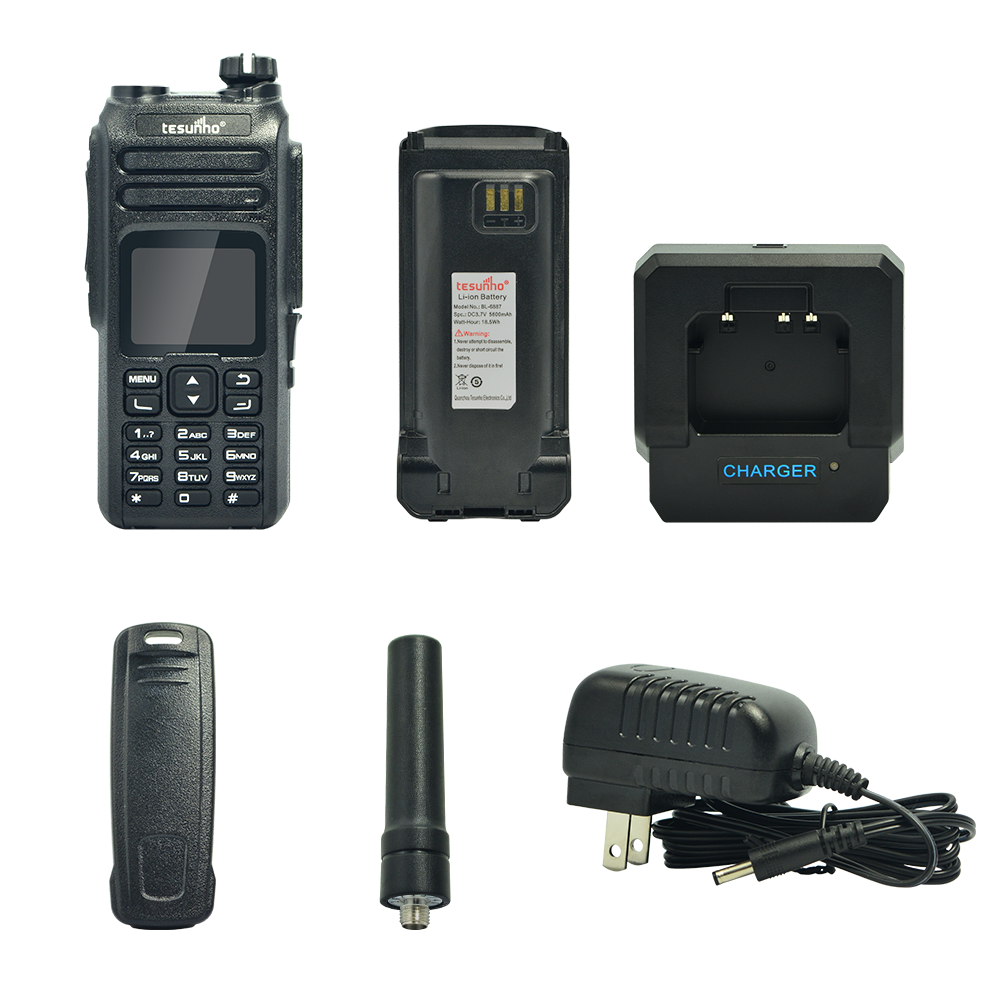

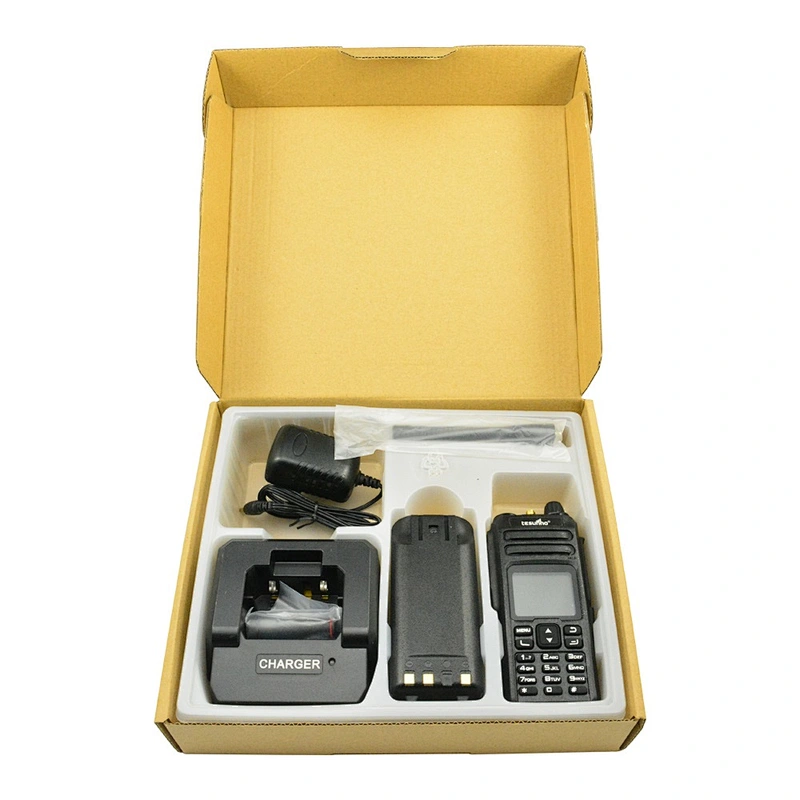

Standard Package for one piece:

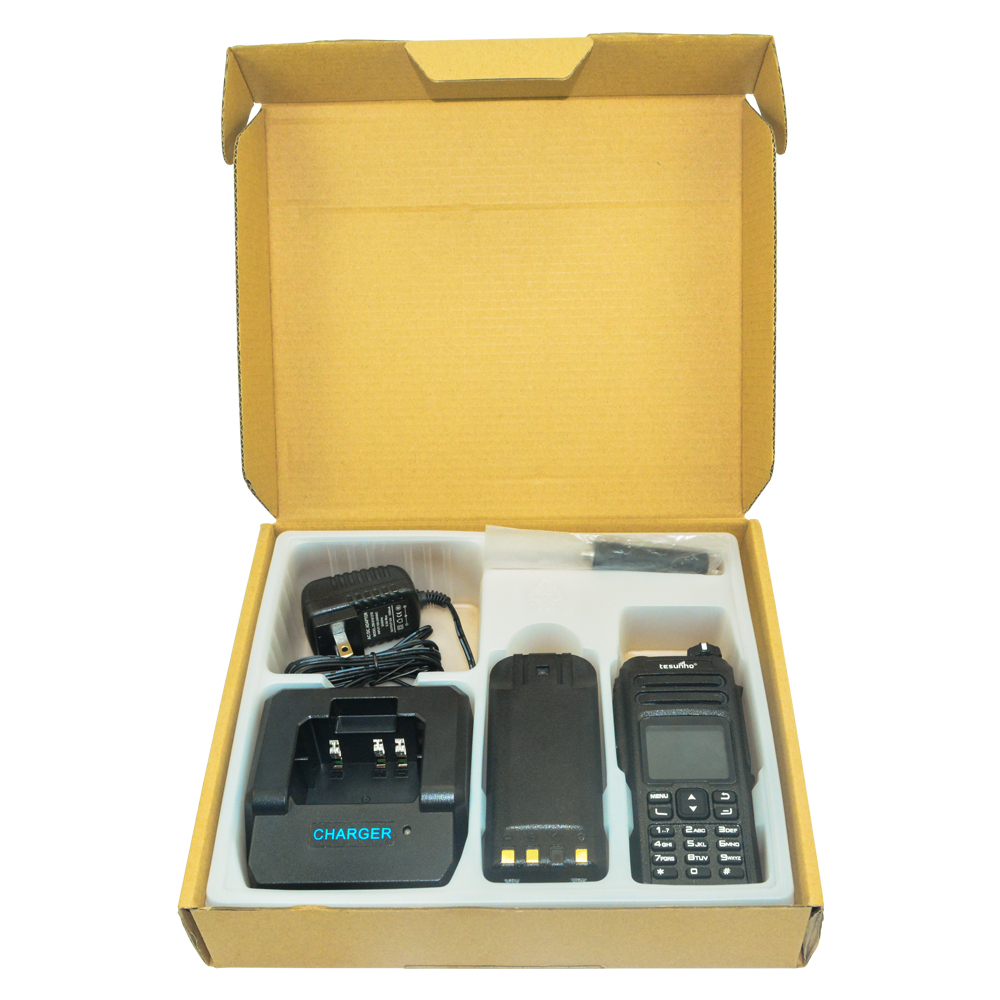

Standard Packing :
Packing Details:
DIMENSION & WEIGHT | ||||||
Item | One Unit | Standard Carton |
Delivery Method | |||
Size(cm) | Gross Weight(kg) | Quantity(pcs) |
Size(cm) | Gross Weight(kg) | ||
TH681 |
25.5*21.5*5.5 |
0.64 |
20 |
58*46*30 |
13.9 |
DHL/FedEx/TNT/EMS/By Air/By sea |
Lead Time:
Item | Quantity(pcs) | Production Lead Time |
Walkie talkie | 1-50 | 1-3 days |
50-200 | 2-5 days | |
200-500 | 2-10 days | |
500-1000 | 5-21 days |
Attention please: The date is given based on the normal production ability of Tesunho Electronics. Kindly contact us for more accurate data if you have special needs!
Payment Method:
Trade Assurance / Bank transfer / Western Union / MoneyGram / Paypal
Tesunho is aim to be the leading industrial walkie talkie solution supplier. So our service consists of 3 important parts:
1. Basic Warranty:
√ Replacement: Free new walkie talkie if it can not work at once it arrives.
√ Free maintenance and parts (without artificial faulty ) :
Item | Warranty |
Main Unit | 365 days |
Battery and Charger | 90 days |
Antenna and other parts | None |
2. Brand OEM service:
√ partly OEM service
√ complete OEM service
3. Technical ODM service:
we have abundant of experience on industrial needs customization
√ Rail way station communication device
√ Hotel inner wifi communication structure
√ Security Guard Patrol system with walkie talkie
√ Irrigation Patrol system
√ Intelligent Parking system
√ Logistics Management system
News:
Why Us:
Click Picture to Learn More. Any of your inquiry is welcomed!
FAQ:
1.Are you a trade company or a manufacturer?
A: We are an R&D based creative and productive manufacturer specialized in CE FCC approved walkie talkie.
2.How POC Radio work?
A: It needed poc radio, sim card and real ptt account, contact us for more explaining
3.How to program radio?
A: It need real ptt account, real ptt account password, URL, Apn. Pls feel free to contact us, we will offer you programming instruction and guide one by one step.
4.What is your MOQ?
A: 2 piece for normal stock; different quantities for OEM or ODM,which is determined by different task workload. Kindly contact us for more information.
5.What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
A: You can get free sample by means of returning sample fund after regular order.
